China Manufacturer Solid Carbide Standard End Mill for High Performance Milling
Changzhou Jianhua Changsheng Tools Co., Ltd.- Tooth Form：Spiral Tooth
- Tooth Space：Sparse Tooth
Base Info
- Model NO.：End Mill
- Structure：Integral
- Material：Cemented Carbide
- Type：Vertical Milling Cutter
- Precision：High Precision
- HRC：45,55,60,65 HRC
- End Mill Flute：1,2,3,4,5,6,8,12,14,16
- Flexural Strength：2500-4000n,mm2
- Length：30-200mm (on Your Requirement)
- Diameter：3mm-40mm (on Your Requirement)
- Usage：General Purpose,High Speed Cutting
- Controlling Mode：CNC System
- Grinding Machine：Gesac Grind Tech From China
- Certificate：ISO9001:2008
- OEM：Yes
- Transport Package：Protective Sleeve+Plastic Box+Paper Box+Carton
- Trademark：CS TOOLS
- Origin：Changzhou Jiangsu, China
- HS Code：8207709000
- Production Capacity：300000,Month
- Package size per unit product：80.00cm * 50.00cm * 30.00cm
- Gross weight per unit product：5.000kg
Description
cast iron, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel Customized Available,OEM or ODM Available
Our Advantage

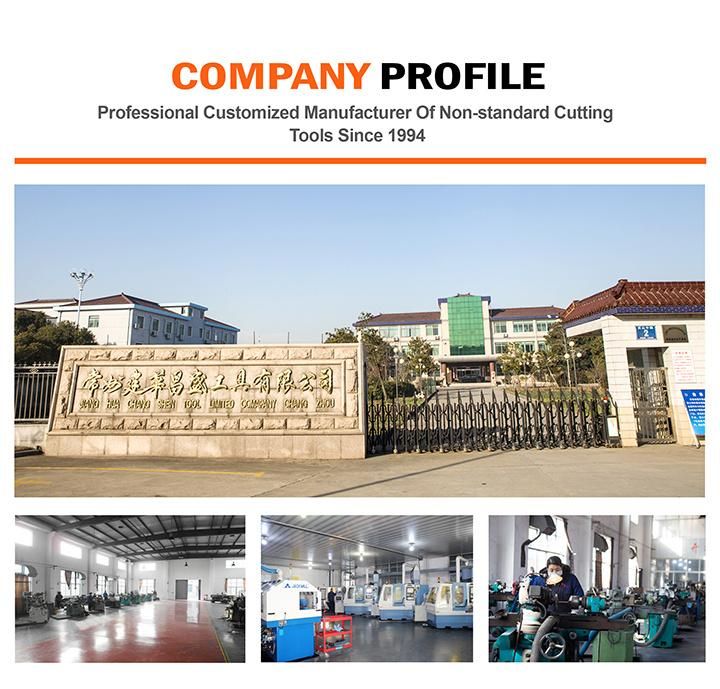

1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience and more professional.

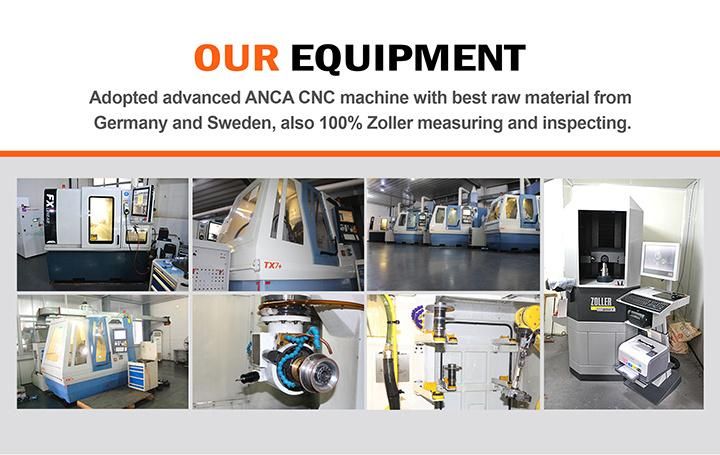

2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.
1.Selected high-quality raw materials
100% original raw materials, no recycle
2.Super Coating
Super coating reduce the coefficient of friction, improve the efficency of machines and improve the tools life much.
3.Imported CNC machine
1.ANCA from Australia
2.Tru Tech from USA
3.Jack Mill from TaiWan province of CHINA
4.Imported Test Machine
1.Zoller Genius 3s Zoller TFT-Display
2.SEVEN OCEAN part of Hexagon
3.Gesac Grind Tech From China

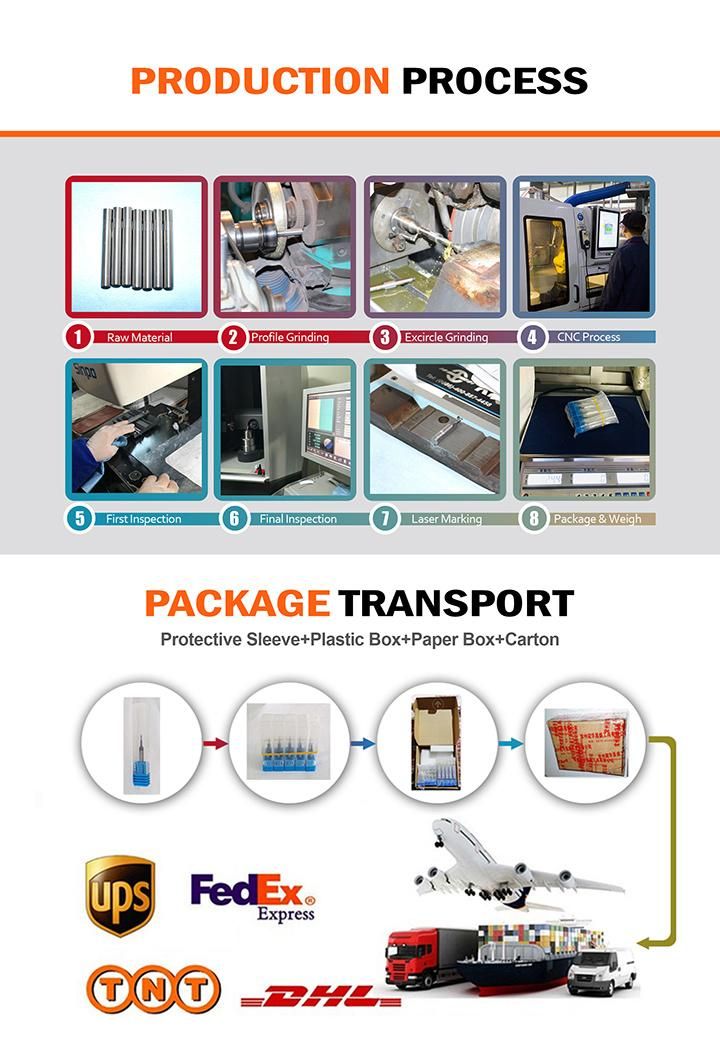

5.Strict measurement sequence Five step test
1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter the After the tools finished after CNC machine
4.Test flutes After coating
5.Test the packing before shipping
6.Packaging & Shipping
1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.
7.Delivery Time
1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.
Our Advantage
1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience and more professional.
2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.
1.Selected high-quality raw materials
| Grade | YG10X | YG10.2 WF25(Taiwan) | K44 K40 | Sandvik H10F |
| Hardness | HRC50 | HRC55 | HRC60 | HRC65 |
| Grain Size | 0.7um | 0.6um | 0.5um | 0.4um |
| Cobalt Content | 10% | 10% | 12% | 12.50% |
| Flexural Strength | 3320N/mm2 | 4000N/mm2 | 4300N/mm2 | 4300N/mm2 |
2.Super Coating
| TiN | TiCN | CrN | AlTiN | TiSiN | Nano | DLC | |
| Hardness(HV) | 2700 | 3000 | 2500 | 3200 | 3600 | 42(GPA) | 3600 |
| Thickness(UM) | 2-6 | 2-6 | 2-6 | 2.5-3 | 3 | 3 | 0.5-10 |
| Oxidation Temp(°) | 600 | 400 | 700 | 900 | 1000 | 1200 | 350 |
| Friction Coefficient | 0.4 | 0.3 | 0.2 | 0.3 | 0.45 | 0.4 | 0.06 |
| Color | Gold | SteelGray | SilverGrey | Black | Copper | Blue | SilverGrey |
3.Imported CNC machine
1.ANCA from Australia
2.Tru Tech from USA
3.Jack Mill from TaiWan province of CHINA
4.Imported Test Machine
1.Zoller Genius 3s Zoller TFT-Display
2.SEVEN OCEAN part of Hexagon
3.Gesac Grind Tech From China
5.Strict measurement sequence Five step test
1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter the After the tools finished after CNC machine
4.Test flutes After coating
5.Test the packing before shipping
6.Packaging & Shipping
1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.
7.Delivery Time
1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.
