• Model NO.：CNMG190612-PM
• Color：Gold , Black
• Sample：Available
• Transport Package：Plastic Boxes 10PCS,Box
• Specification：CNMG190612-PM
• Trademark：XINHUA
• Origin：China
• HS Code：8208101100
• Production Capacity：300000pieces,Year

Basic Info.

Model NO. CNMG190612-PM Color Gold / Black Sample Available Transport Package Plastic Boxes 10PCS/Box Specification CNMG190612-PM Trademark XINHUA Origin China HS Code 8208101100 Production Capacity 300000pieces/Year

Product Description

We are a manufacturer of carbide inserts since 1989. We supply CNMG90612-PM carbide insert, covering most of Southeast Asia, Europe and The Middle East Market. We are expecting become your long term partner in China.



Product  Description
1). CNMG190612-PM, CNMG663 big size insert 2). CNMG190612-PM is suitable for semi-finishing and roughing machining for steel and stainless steel  3). CNMG190612-PM could be used for heavy interrupted cutting condition for high feed and depth of cut with good performance.
Product Application
 1). Double-sided chipbreaker PM with M-level tolerance has higher strength of cutting edge. It is suitable for semi-finishing and roughing under unstable working conditions as well as machining cast iron with small cutting forces.
2). CVD coating has a peculiar gradient cobalt-rich on surface of the substrates which can ensure the inserts high performance.
3). The coating materials are MT-TiCN0-Al₂O₃ with thickness of 14μm, which have high abrasion resistance. After special management on the surface of the coating inserts, the internal stress and surface of coating were reduced while cutting resistance was also cut down.
4). CVD coated carbide grade,Universal grade,suitable for steel and cast continuous cutting and interrupted cutting finishing to roughing.

Grade	Performance & Application recommended
XHC151	Ideal grade for the finishing steel, cast steel and stainless steel under high speed and dry machining.
XHC251	Good for the finishing.Semi-finishing and Light roughing of steel,cast steel and stainless steel.
XHC351	Suitable for light roughing and roughing steel,cast steel and stainless steel.
XHM151	Good for finishing and semi-finishing(turning as well as boring)of stainless steel.
XH101	High hardness and good toughness, suitable for fine and semi-finishing machining of steel and cast steel, also suitable for copying turning.

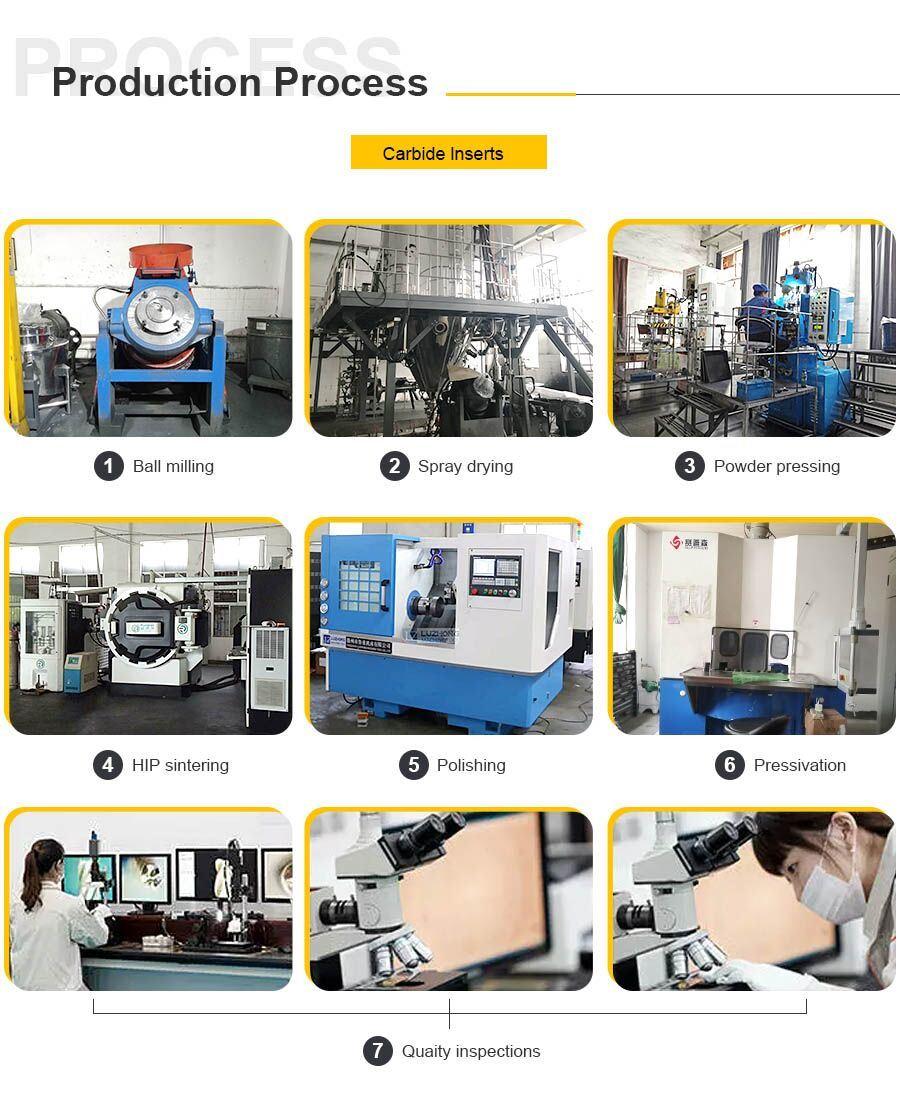

Production Process

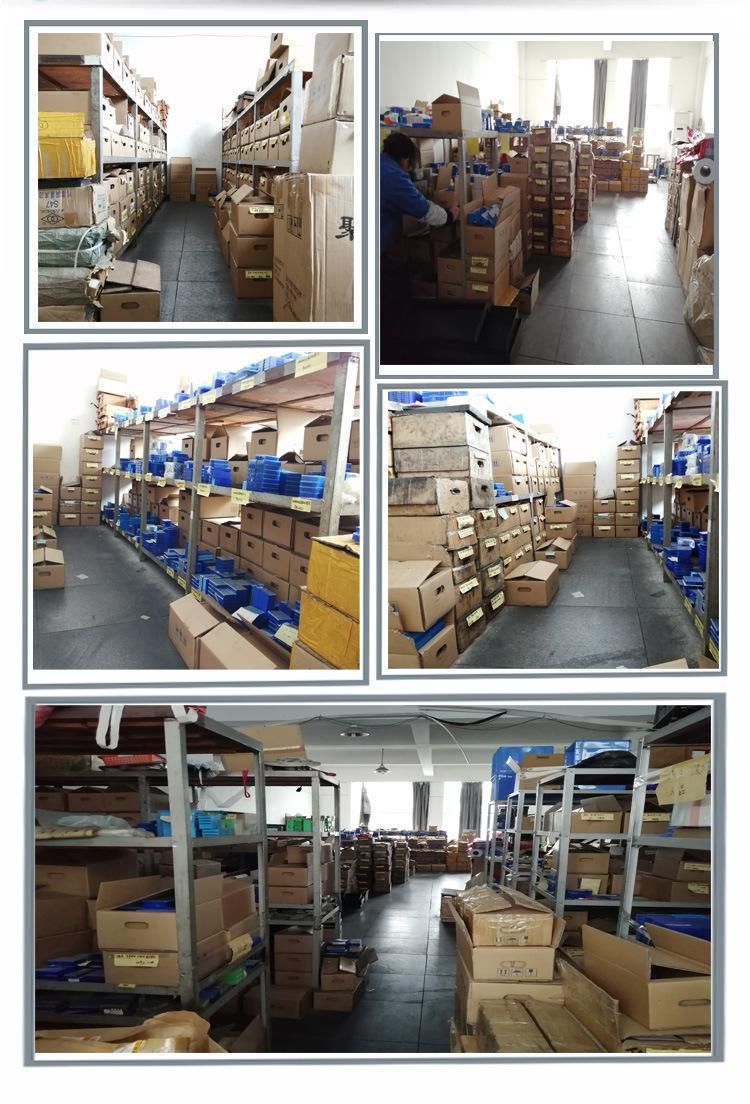

Our Warehouse


Customers Feedback


These are our customers feedback. They are from different countries of the world. We are very appreciate their trust and support.

Exhibitions
We attended many professional exhibitions around the world in past years. We will show you our plans of year 2020 soon. Please keep on paying attention to our latest news. We are expecting to have a face to face talk with you in the near future.

IMTEX-2019


METALLOOBRABOTKA-2018


TECMA -2019

 FAQ

 **Are you a trading company or manufacturer ?

A: We are a professional manufacturer, have more than 15 years experience in this field.


**How long is your delivery time?

A: Usually 3-5 working days . if it is not available, it will take 15-25 workdays.


**Do you provide samples ? is it free or extra ?

A: Yes, we could offer free sample(carbide insert, parting and grooving, milling etc.)for testing as support.

** Can you send products to our Forwarder in China?
Yes, if you have Forwarder in China, we will glad to send products to him/her.

**Can you produce Special carbide Tools ?
A:Yes, we can. OEM and ODM are available. And we have our own professional R&D team that we could produce according to your drawing or sample.
