• Model NO.：395-0816
• Specification：HSS material
• Trademark：NUTURAL
• Origin：China
• HS Code：8207809000
• Production Capacity：5000PCS,Month

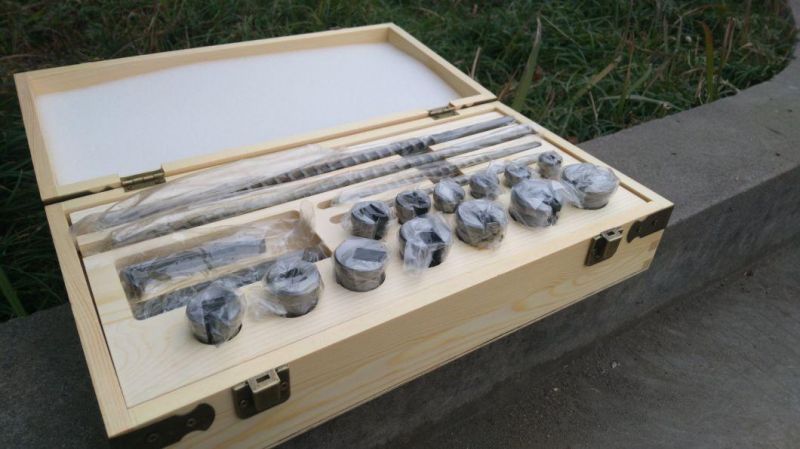

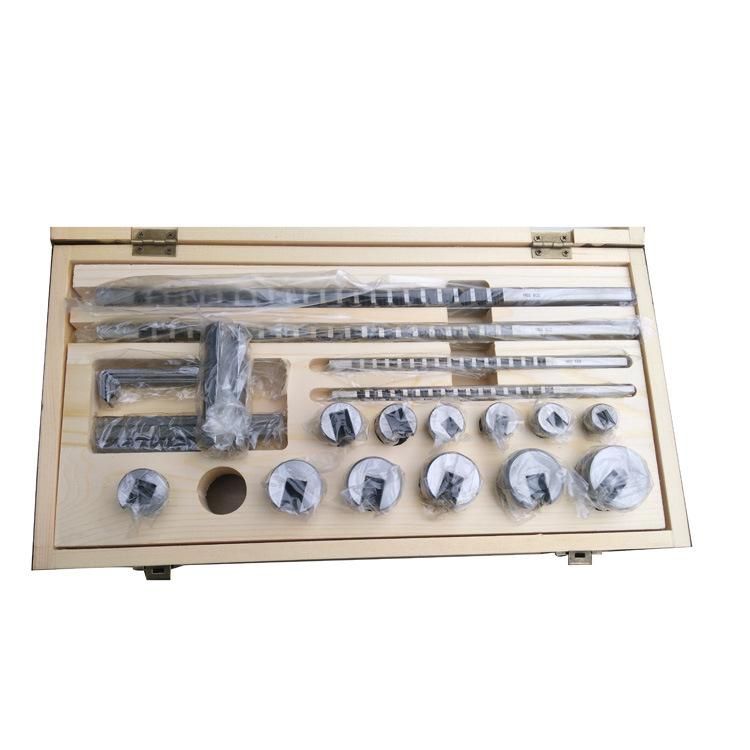

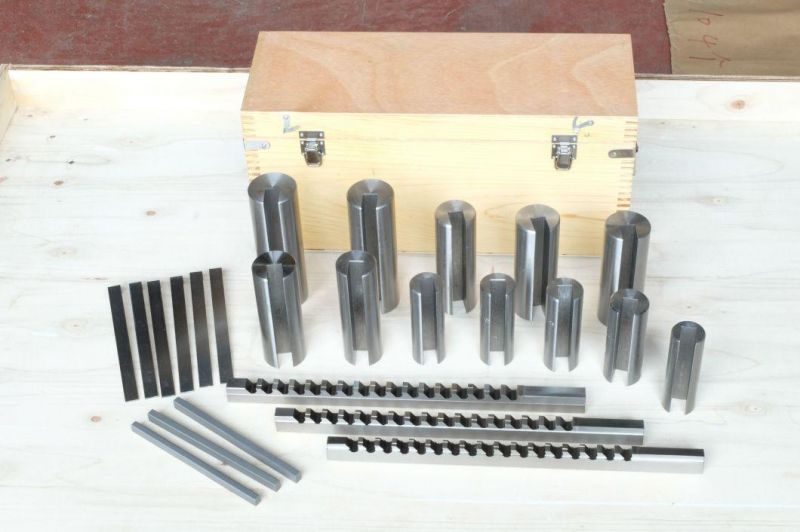

 Metric keyway broaches     Pieces No. of Broaches No. of shimNo. of Bushings  Keyway combinations Model. No.6 2 Broaches: 2mm, 3mm (A) 1 3 Bushings: 6,8,10mm 6 395-080616 2 Broaches 16mm,18mm (E-1) 6 8 Bushings:52,54,55,56,58,60,62,65mm 16 395-081618 4 Broaches 4mm, 5mm (B-1), 6mm, 8mm (C-1) 5 9 Bushings: 12, 14, 16, 18, 20, 22, 24, 26, 28mm 18 395-081821 3 Broaches 10mm,12mm,14mm (D-1) 6 12 Bushings: 32,34,35,36,38,40,42, 44,45,46,48,50mm 36 395-082122 4 Broaches 4mm,5mm (B-1),6mm,8mm (C-1) 5 13 Bushings: 12,14,15,16,18,19,20,22, 24,25,26,28,30mm
  26 395-0822

Inch Keyway broaches
Pieces	No. of Broaches	No. of shim	No. of Bushings	Keyway combinations	Model. No.
9	3 Broaches: 1/16-A,3/32-A,1/8-A	1	5 Bushings: 1/4,5/16,3/8,7/16,1/2"	15	395-0109
17	2 Broaches: 5/8, 3/4"	9	6 Bushings: 2-5/16,2-7/16,2-9/16,2-11/16,2-13/16,2-15/16"	12	395-0217
17	2 Broaches: 5/8-E, 3/4-E	9	6 Bushings: 2-3/8,2-1/2,2-5/8,2-3/4,2-7/8,3"	12	395-0218
22	4 Broaches: 5/16-D,3/8-D,7/16-D,1/2-D	10	8 Bushings: 1-7/16,1-9/16,1-11/16,1-13/16,1-15/16,2-3/16,2-7/16,2-15/16	32	395-0322
22	4 Broaches: 5/16-D,3/8-D,7/16-D,1/2-D	10	8 Bushings: 1-1/2,1-5/8,1-3/4,1-7/8,2, 2-1/8,2-1/4,2-1/2"	32	395-0323
32	3 Broaches: 1/2-D, 5/8-E,3/4-E	12	17 Bushings: 2, 2-1/16, 2-1/8, 2-3/16, 2-1/4, 2-5/16,2-3/8,2-7/16,2-1/2, 2-9/16, 2-5/8, 2-11/16,2-3/4, 2-13/16, 2-7/8, 2-15/16, 3	26	395-0432
75	8 Broaches: 1/8,3/16"(B),1/4,5/16"(C),  3/8,7/16,1/2"(D),5/8, (E) 3/4"	22	44 Bushings: 1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4, 1-5/16,1-3/8,1-7/16,1-1/2,1-9/16,1-7/16,1-1/2,1-9/16,1-5/8, 1-11/16,1-3/4,1-13/16,1-7/8,1-15/16,2,2-1/16,2-1/8,2-3/16,2-1/4,2-5/16,2-3/8, 2-7/16,2-1/2,2-9/16,2-5/8,2-11/16,2-3/4,2-13/16,2-7/8,2-15/16,3	102	395-0575
15	3 Broaches: 1/8-B, 3/16-C, 1/4-C	3	9 Bushings: 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2	15	395-0717
18	4 Broaches: 1/8-B,3/16-B,1/4-C3/8-C	5	9 Bushings: 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-3/8, 1-1/2	18	395-0718
18	4 Broaches: 1/8-B,3/16-B,1/4-C3/8-C	5	9 Bushings: 9/16,11/16,13/16,15/16,1-1/16,1-3/16,1-5/16,1-7/16,1-9/16	18	395-0719
27	4 Broaches: 1/8-B,3/16-B,1/4-C3/8-C	5	18 Bushings: 1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16, 1-1/4,1-5/16,1-3/8,1-7/16,1-1/2,1-9/16	36	395-0727
30	5 Broaches: 1/8", 3/16"(B),1/4",5/16",3/8"(C)	7	18 Bushings: 1/2,9/16,5/8,11/16,3/4,13/16,7/8,15/16,1,1-1/16,1-1/8,1-3/16,1-1/4,1-5/16,1-3/8, 1-7/16,1-1/2,1-9/16	47	395-0730
