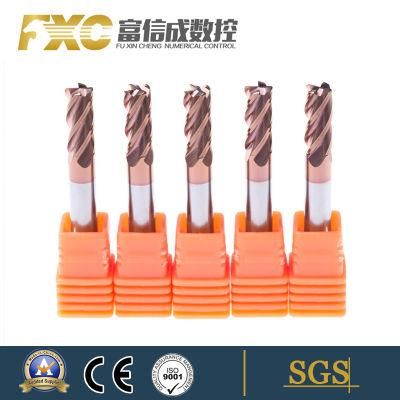

CNC HRC55 4 Flutes Solid Carbide Square End Mill Manufacturer Milling Cutting Tools
FUXINCHENG TOOLS CO., LTD.- Coating：Coating
- Tooth Form：Spiral Tooth
- Tooth Space：Sparse Tooth
- Structure：Indexable Type
- Material：Tungsten Steel
- Type：End Mill
Base Info
- Model NO.：FXC-12
- Item：End Mill
- Work Piece：HRC 45, 55, 60, 65
- End Mill Flute Diameter：D0.5-D30mm
- Flutes Number：2,3,4
- OEM：Available
- Diameter：1-20mm
- Overall Length：50-150mm
- Feature：Metal Plating
- Keywords：Popular Hand Tools Sets
- Packing：Carton
- Application：CNC Process
- Transport Package：1 PC in a Plastic Tube, 10 PCS Per Group
- Trademark：FXC
- Origin：Changzhou, Jiangsu
- HS Code：8207709000
- Production Capacity：1000000
Description
Raw MaterialHRC Meterial MG Grain Size(μm) CO(%) Flexural Strength(N/mm²) 45° ZK30 0.7 10 3320 50° WF25 CB 0.6 10 4000 55° K44UF Gurhing 0.5 12 4300 65° CTU08L CERATIZIT 0.4 10 3700
FXC HRC55 Carbide Square End Mill Of Specifications (mm)
Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Aerospace, transportation, Medical equipment, manufacturing, mould development, apparatus and instrument, etc.
Packing Details
RFQ
1.Are you manufacturer? Do you have factory?
We are Professional manufacturer ,we have more than 15 years experience in this field.
2.Does free shipping is possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
3.Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.
4.Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5.How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
6.Can you produce carbide Special Tool ?
Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and samp
FXC HRC55 Carbide Square End Mill Of Specifications (mm)
| SPECIFICATIONS | Cutting Diameter | Cutting Length | A.O.L | A.O.L | Flute |
| 1.0×3×4D×50L×4F | 1 | 3 | 4 | 50 | 4F |
| 1.5×4.5×4D×50L×4F | 1.5 | 4.5 | 4 | 50 | 4F |
| 2.0×6.0×4D×50L×4F | 2 | 6 | 4 | 50 | 4F |
| 2.5×7.5×4D×50L×4F | 2.5 | 7.5 | 4 | 50 | 4F |
| 3.0×9×4D×50L×4F | 3 | 9 | 4 | 50 | 4F |
| 3.0×9×3D×50L×4F | 3 | 9 | 3 | 50 | 4F |
| 3.0×12×3D×75L×4F | 3 | 12 | 3 | 75 | 4F |
| 3.0×15×3D×100L×4F | 3 | 15 | 3 | 100 | 4F |
| 3.5×10.5×4D×50L×4F | 3.5 | 10.5 | 4 | 50 | 4F |
| 4.0×12×4D×50L×4F | 4 | 12 | 4 | 50 | 4F |
| 4.0×16×4D×75L×4F | 4 | 16 | 4 | 75 | 4F |
| 4.0×20×4D×100L×4F | 4 | 20 | 4 | 100 | 4F |
| 5.0×15×5D×50L×4F | 5 | 15 | 5 | 50 | 4F |
| 5.0×20×5D×75L×4F | 5 | 20 | 5 | 75 | 4F |
| 5.0×25×5D×100L×4F | 5 | 25 | 5 | 100 | 4F |
| 5.0×15×6D×50L×4F | 5 | 15 | 6 | 50 | 4F |
| 6.0×18×6D×50L×4F | 6 | 18 | 6 | 50 | 4F |
| 6.0×24×6D×75L×4F | 6 | 24 | 6 | 75 | 4F |
| 6.0×30×6D×100L×4F | 6 | 30 | 6 | 100 | 4F |
| 8.0×24×8D×60L×4F | 8 | 24 | 8 | 60 | 4F |
| 8.0×30×8D×75L×4F | 8 | 30 | 8 | 75 | 4F |
| 8.0×35×8D×100L×4F | 8 | 35 | 8 | 100 | 4F |
| 9.0×27×10D×75L×4F | 9 | 27 | 10 | 75 | 4F |
| 10.0×30×10D×75L×4F | 10 | 30 | 10 | 75 | 4F |
| 10.0×40×10D×100L×4F | 10 | 40 | 10 | 100 | 4F |
| 12.0×35×12D×75L×4F | 12 | 35 | 12 | 75 | 4F |
| 12.0×45×12D×100L×4F | 12 | 45 | 12 | 100 | 4F |
| 14.0×45×14D×100L×4F | 14 | 45 | 14 | 100 | 4F |
| 16.0×45×16D×100L×4F | 16 | 45 | 16 | 100 | 4F |
| 18.0×45×18D×100L×4F | 18 | 45 | 18 | 100 | 4F |
| 20.0×45×20D×100L×4F | 20 | 45 | 20 | 100 | 4F |
| 6.0×45×6D×150L×4F | 6 | 45 | 6 | 150 | 4F |
| 8.0×50×8D×150L×4F | 8 | 50 | 8 | 150 | 4F |
| 10.0×60×10D×150L×4F | 10 | 60 | 10 | 150 | 4F |
| 12.0×60×12D×150L×4F | 12 | 60 | 12 | 150 | 4F |
| 14.0×70×14D×150L×4F | 14 | 45 | 14 | 150 | 4F |
| 16.0×75×16D×150L×4F | 16 | 45 | 16 | 150 | 4F |
| 18.0×75×18D×150L×4F | 18 | 45 | 18 | 150 | 4F |
| 20.0×75×20D×150L×4F | 20 | 45 | 20 | 150 | 4F |
| 25.0×45×25D×100L×4F | 25 | 45 | 25 | 100 | 4F |
Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Aerospace, transportation, Medical equipment, manufacturing, mould development, apparatus and instrument, etc.
