• Model NO.：4F-10-25-75mm
• Hardness：92.5hra
• Strength：3500MPa
• Diameter：10mm(-0.005~+0.005)
• Flute Length：25mm
• Overall Length：75mm
• Flute：4 Flat Flute
• Transport Package：25kg. Carton
• Specification：4F-10-25-75mm
• Trademark：ZZUP
• Origin：Zhuzhou, Hunan, China
• HS Code：820900100
• Production Capacity：10000000PCS,Month

Basic Info.

Model NO. 4F-10-25-75mm Hardness 92.5hra Strength 3500MPa Diameter 10mm(-0.005~+0.005) Flute Length 25mm Overall Length 75mm Flute 4 Flat Flute Transport Package 25kg. Carton Specification 4F-10-25-75mm Trademark ZZUP Origin Zhuzhou, Hunan, China HS Code 820900100 Production Capacity 10000000PCS/Month

Product Description

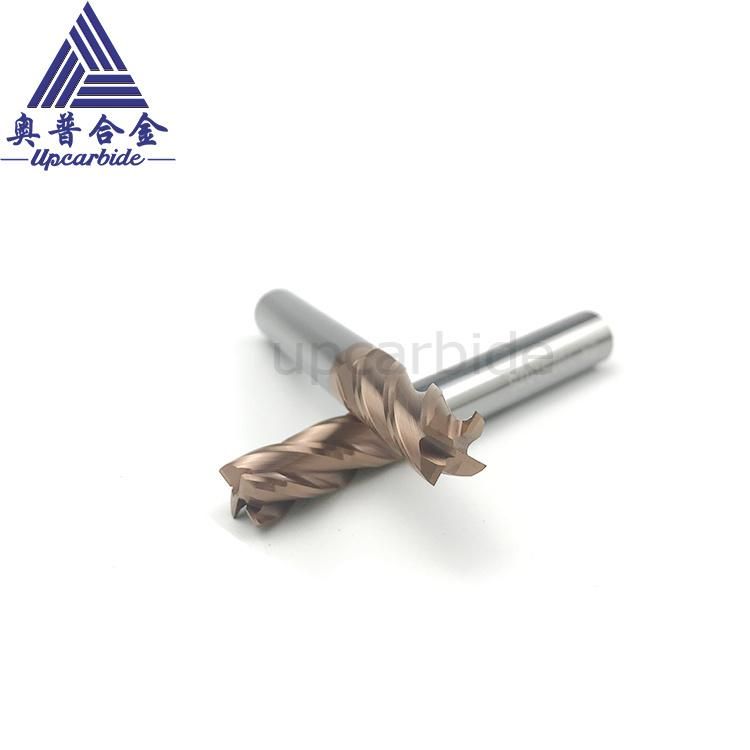

for 58HRC Hardened Steel 4F-D10-25-75mm Solid Tungsten Carbide End Mill
for 58HRC Hardened steel 4F-D10-25-75mm solid Tungsten Carbide End Mill

Products description
1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).
5. also can make angles of tips are 30º,60º,90º

Product Name	for 58HRC Hardened steel 4F-D10-25-75mm solid Tungsten Carbide End Mill
Material	tungsten carbide
Color	grey
Standard	DIN GB ISO JIS BA ANSI
Grade	YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc
Brade	ZZUP
Grain size	0.6um
Used	for milling 45HRC,50HRC,60HRA metals

 Products Show










 Grade specification


Grade	Density(g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain size       (μm)	Composition          (%)	Equal to ISO
YU12	14.1~14.15	.≥92.5	≥4000	0.2~0.5	12% CO 88% WC	K40~K50
YL10.2	14.4~14.6	≥92.2	≥4000	0.6~0.8	10% CO 90% WC	K20~K30
YG6X	14.85~15.0	≥92.0	≥3860	0.8~1.0	6% CO 94%  WC	K05
YG15	14.0~14.1	≥85.0	≥2800	1.2~2.0	15%Co 85% WC	K30~K40
YG10	14.5~14.6	≥85.5	≥2600	1.2~2.0	10%Co 90% WC	K20
YG8	14.65~14.85	≥89.5	≥2320	1.2~2.0	8% CO 92% WC	K20
YG6	14.85~15.05	≥90.0	≥2150	1.2~2.0	6% CO 94% WC	K10

Packing details





Shipping ways

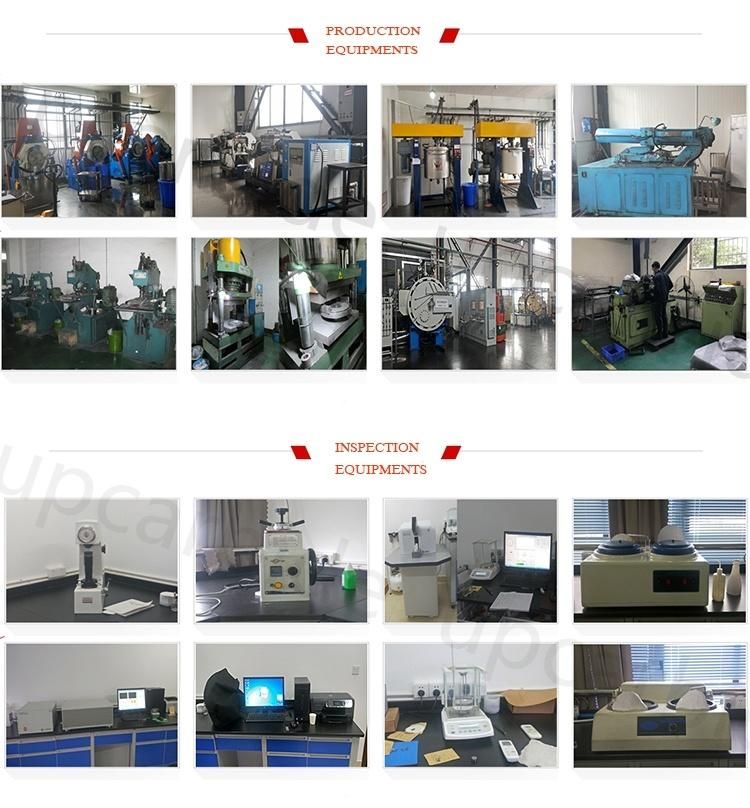

Production process
