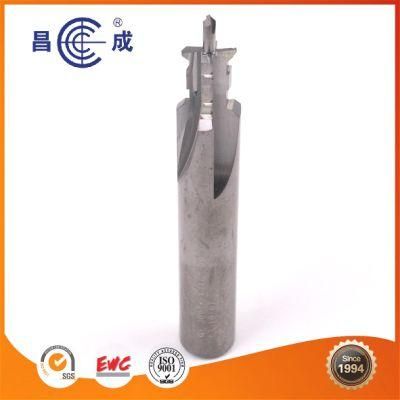

Customized Solid Carbide Threaded Shank End Mill
Changzhou Jianhua Changsheng Tools Co., Ltd.- Tooth Form:Spiral Tooth
- Tooth Space:Sparse Tooth
Base Info
- Structure:Insert Type
- Material:Cemented Carbide
- Type:Face Milling Cutter
- Precision:High Precision
- HRC:45,55,60,65 HRC
- End Mill Flute:2,3,4,5,6,8
- Flexural Strength:2500-5000n,mm2
- Length:30-200mm (on Your Requirement)
- Diameter:3mm-40mm (on Your Requirement)
- Usage:General Purpose,High Speed Cutting
- Controlling Mode:CNC System
- Certificate:ISO9001:2008
- OEM:Yes
- Transport Package:Protective Sleeve+Plastic Box+Paper Box+Carton
- Trademark:CS TOOLS
- Origin:Changzhou Jiangsu, China
- HS Code:8207709000
- Production Capacity:300000,Month
- Package size per unit product:80.00cm * 50.00cm * 30.00cm
- Gross weight per unit product:5.000kg
Description
Basic Info.
Structure Insert Type Material Cemented Carbide Type Face Milling Cutter Precision High Precision HRC 45/55/60/65 HRC End Mill Flute 2/3/4/5/6/8 Flexural Strength 2500-5000n/mm2 Length 30-200mm (on Your Requirement) Diameter 3mm-40mm (on Your Requirement) Usage General Purpose/High Speed Cutting Controlling Mode CNC System Certificate ISO9001:2008 OEM Yes Transport Package Protective Sleeve+Plastic Box+Paper Box+Carton Trademark CS TOOLS Origin Changzhou Jiangsu, China HS Code 8207709000 Production Capacity 300000/MonthPackaging & Delivery
Package size per unit product 80.00cm * 50.00cm * 30.00cm Gross weight per unit product 5.000kgProduct Description

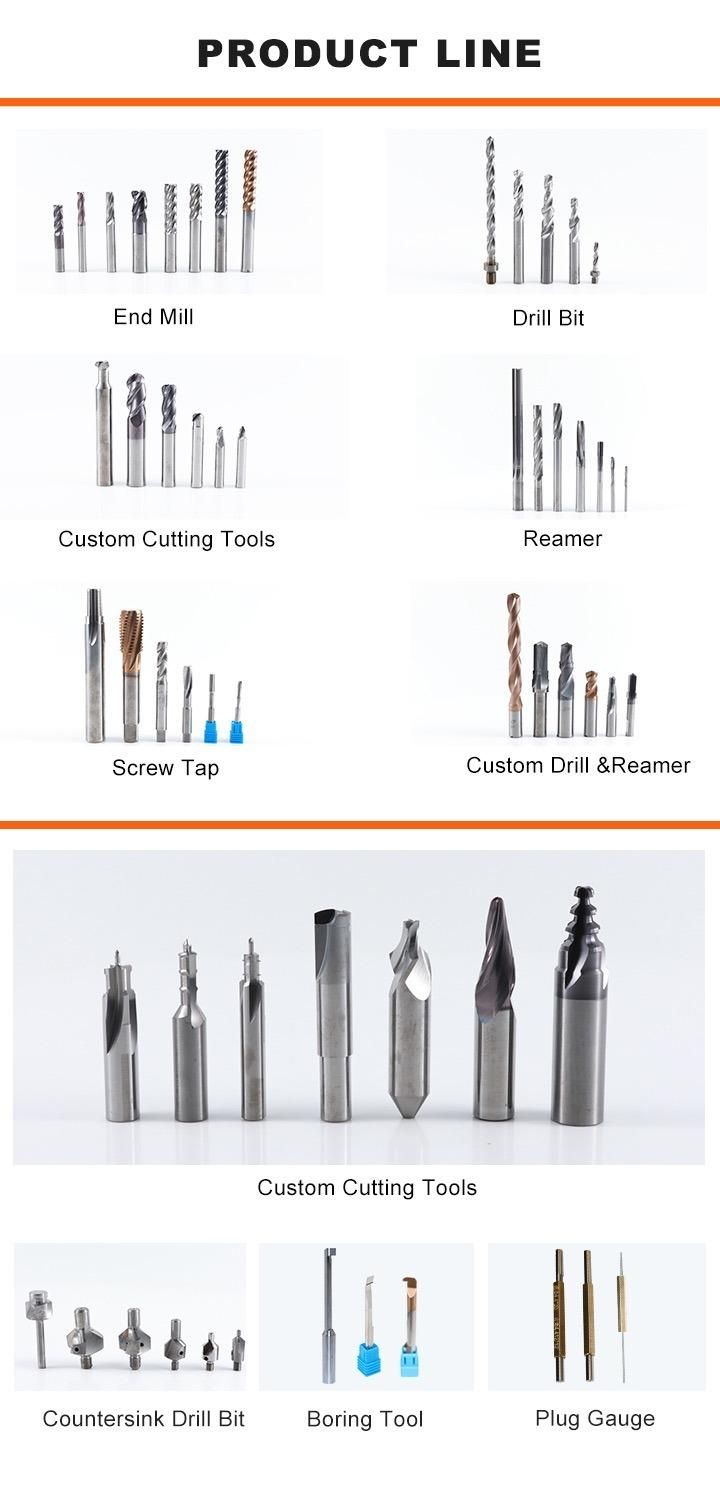

Tool models | End mill, Drill Bits, Reamers, Boring cutters, Taps, Saw Blades, Welding Tools, Customized Cutting Tools, etc. |
Raw Material | Solid carbide, Tungsten carbide , HSS…(Customized) |
Coating | TIN, TiALN, AlTiN, TiAIN, etc. |
Length | 30-200mm (Customized) |
Diameter | 3mm-40mm (Customized) |
HRC | 45/55/60/65 Degrees |
Controlling mode | CNC |
Usage | General High Speed Cutting Used On CNC Lathe Used in industrial milling applications such as profile milling, tracer milling, face milling, and plunging |
Processing material | Alloy steel, titanium alloy, nickel base alloy, steel, stainless steel, quenched and tempered hardened steel, non-ferrous metals, etc. |
Application | Automotive, aviation, aerospace enterprise, motorcycle engine, diesel engine, carburetor, compressor, mold industry, etc. |
Our Advantage

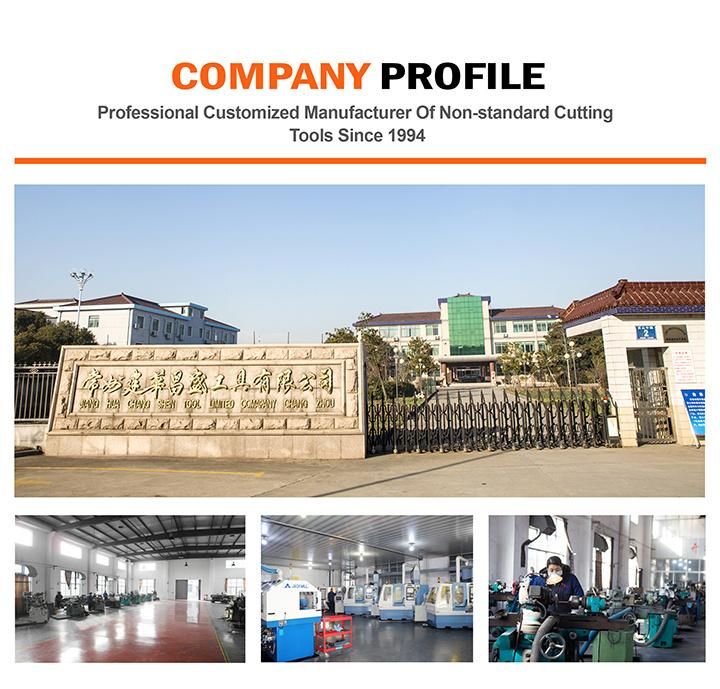

1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience and more professional.
2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.
1.Selected high-quality raw materials
Grade | YG10X | YG10.2 WF25(Taiwan) | K44 K40 | Sandvik H10F |
Hardness | HRC50 | HRC55 | HRC60 | HRC65 |
Grain Size | 0.7um | 0.6um | 0.5um | 0.4um |
Cobalt Content | 10% | 10% | 12% | 12.50% |
Flexural Strength | 3320N/mm2 | 4000N/mm2 | 4300N/mm2 | 4300N/mm2 |
2.Super Coating
TiN | TiCN | CrN | AlTiN | TiSiN | Nano | DLC | |
Hardness(HV) | 2700 | 3000 | 2500 | 3200 | 3600 | 42(GPA) | 3600 |
Thickness(UM) | 2-6 | 2-6 | 2-6 | 2.5-3 | 3 | 3 | 0.5-10 |
Oxidation Temp(°) | 600 | 400 | 700 | 900 | 1000 | 1200 | 350 |
Friction Coefficient | 0.4 | 0.3 | 0.2 | 0.3 | 0.45 | 0.4 | 0.06 |
Color | Gold | SteelGray | SilverGrey | Black | Copper | Blue | SilverGrey |

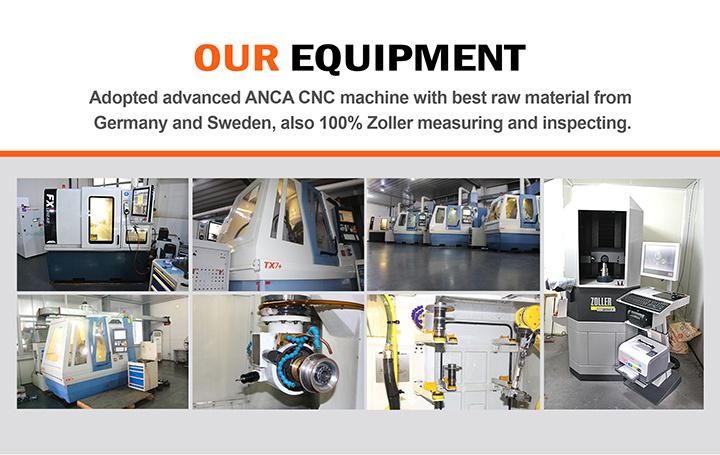

3.Imported CNC machine
1.ANCA from Australia
2.Tru Tech from USA
3.Jack Mill from TaiWan province of CHINA
4.Imported Test Machine
1.Zoller Genius 3s Zoller TFT-Display
2.SEVEN OCEAN part of Hexagon

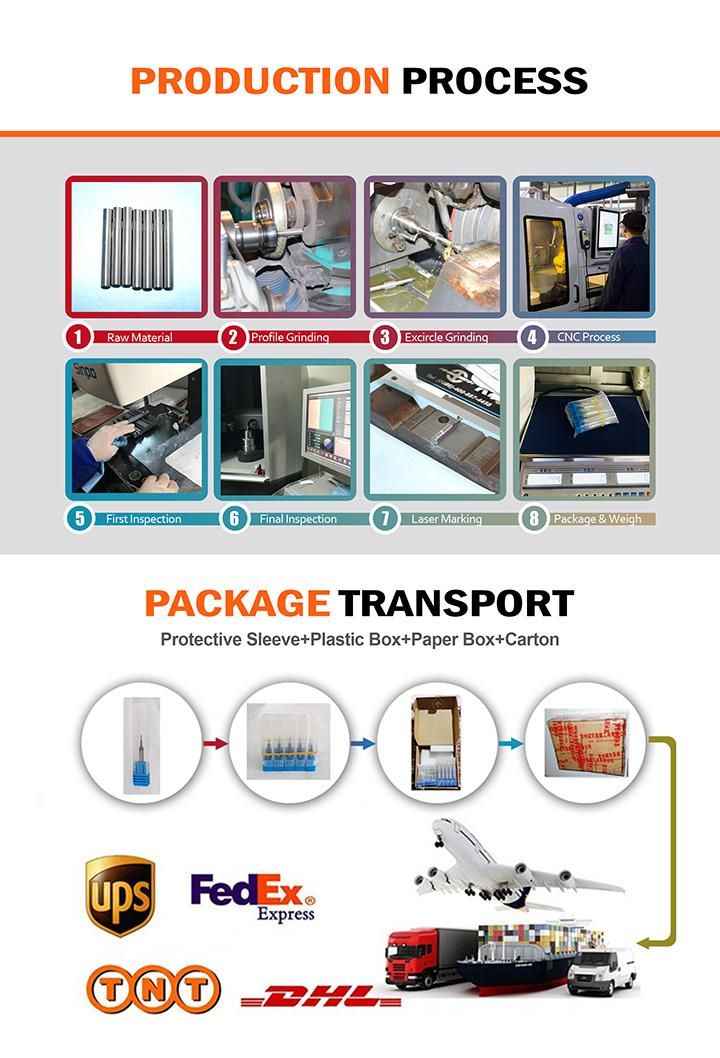

5.Strict measurement sequence Five step test
1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter the After the tools finished after CNC machine
4.Test flutes After coating
5.Test the packing before shipping
6.Packaging & Shipping
1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.
7.Delivery Time
1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.
