• Model NO.：SNMX-SPUB
• Material：Cemented Carbide
• Type：Cutting Tool
• Code：Snmx
• Standards：M
• Style：Universal Tool
• Cutting Process：Turning Tools
• Work Type：External Work
• Transport Package：Plastic Box
• Specification：ISO
• Trademark：Excelledge
• Origin：Chengdu, China
• HS Code：82080100
• Production Capacity：20, 000 PCS,Month
• Package size per unit product：16.00cm * 1.50cm * 0.60cm
• Gross weight per unit product：0.250kg

Basic Info.

Model NO. SNMX-SPUB Material Cemented Carbide Type Cutting Tool Code Snmx Standards M Style Universal Tool Cutting Process Turning Tools Work Type External Work Transport Package Plastic Box Specification ISO Trademark Excelledge Origin Chengdu, China HS Code 82080100 Production Capacity 20, 000 PCS/Month

Packaging & Delivery

Package size per unit product 16.00cm * 1.50cm * 0.60cm Gross weight per unit product 0.250kg

Product Description

We are a professional manufacturer of Carbide Inserts, and can supply you with kinds of standard and special standard Carbide Inserts with excellent edge strength at competitive price.

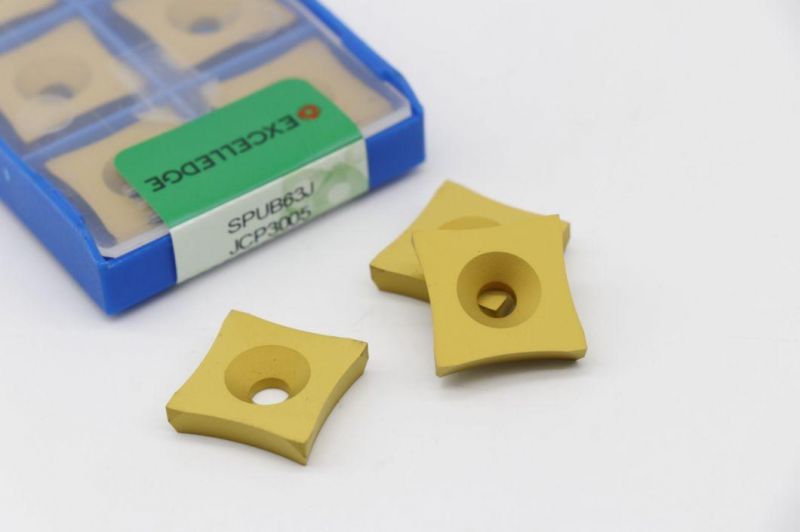

Carbide Inserts for Outside Tube Scarfing, which is used to remove the weld beads after the high frequncy welding.

The proporties of scarfing inserts are as follows:
1. Special high hardness in high temperature grade for high speed scarfing.
2. Different radius for diversity tubes.
3. Advance CVD multi-layer coating for extended tool life.

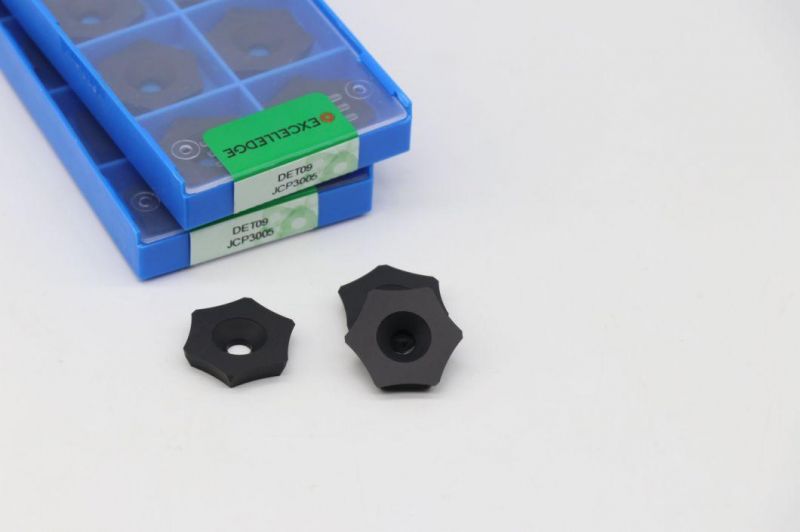

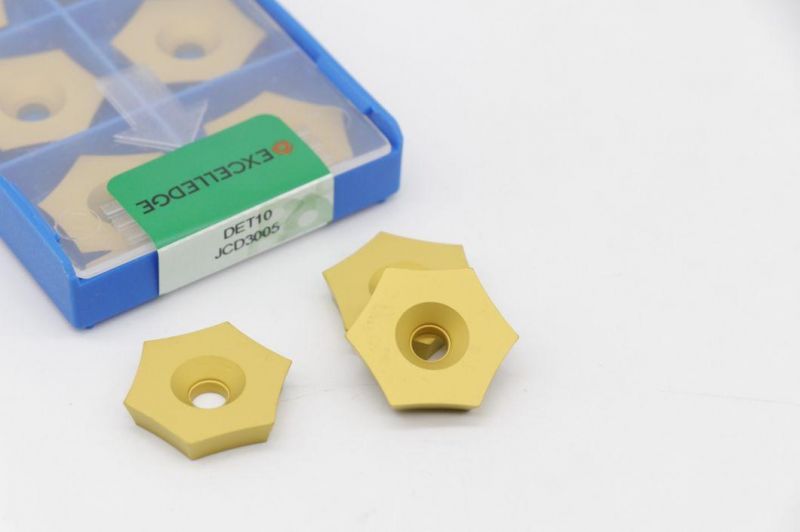

We have SNMX, SPUB, SDUX, SNGN, DET series, ...
The scarfing Inserts also can be made according to your own specification.

CVD Coated Grades are as follows:

Grade	Description	Equivalent to ISO
JCM3015	MT-CVD coated, the substrate with excellent wear resistance in combination with TiCN+Al2O3(thick) multi-layer coating, which is suitable for stainless steel tube scarfing process.	M10~M25
JCP3015	MT-CVD coated, the substrate with excellent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.	P20~P35
