• Alveolus Dentalis：Spiral Slot, Straight Slot
• Handle Type：Straight Shank
• Usage Mode：Machine and Hand Use
• Material：Solid Carbide,Tungsten Carbide, HSS
• Type：Cylindrical Reamer
• HRC：45,55,60,65 HRC
• Reamer Flute：1,2,3,4,5,6,8,12
• Flexural Strength：3500-5000n,mm2
• Length：30-200mm (on Your Requirement)
• Diameter：3mm-40mm (on Your Requirement)
• Usage：General Purpose,High Speed Reaming
• Controlling Mode：CNC System
• Certificate：ISO9001:2008
• OEM：Yes
• Transport Package：Protective Sleeve+Plastic Box+Paper Box+Carton
• Trademark：ChangCheng
• Origin：China
• HS Code：8205590000
• Production Capacity：50000
• Package size per unit product：50.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：3.000kg

Basic Info.

Alveolus Dentalis Spiral Slot, Straight Slot Handle Type Straight Shank Usage Mode Machine and Hand Use Material Solid Carbide/Tungsten Carbide, HSS Type Cylindrical Reamer HRC 45/55/60/65 HRC Reamer Flute 1/2/3/4/5/6/8/12 Flexural Strength 3500-5000n/mm2 Length 30-200mm (on Your Requirement) Diameter 3mm-40mm (on Your Requirement) Usage General Purpose/High Speed Reaming Controlling Mode CNC System Certificate ISO9001:2008 OEM Yes Transport Package Protective Sleeve+Plastic Box+Paper Box+Carton Trademark ChangCheng Origin China HS Code 8205590000 Production Capacity 50000

Packaging & Delivery

Package size per unit product 50.00cm * 30.00cm * 20.00cm Gross weight per unit product 3.000kg

Product Description

Tool models	End mill, Drill Bits, Reamers, Boring cutters, Taps, Saw Blades, Welding Tools, Customized Cutting Tools, etc.
Raw Material	Solid carbide, Tungsten carbide , HSS…(Customized)
Coating	TIN, TiALN, AlTiN, TiAIN, etc.
Length	30-200mm (Customized)
Diameter	3mm-40mm (Customized)
HRC	45/55/60/65 Degrees
Controlling mode	CNC
Usage	General High Speed Cutting Used On CNC Lathe Used in industrial drilling  and  reaming applications
Processing material	Alloy steel, titanium alloy, nickel base alloy, steel, stainless steel, quenched and tempered hardened steel, non-ferrous metals, etc.
Application	Automotive, aviation, aerospace enterprise, motorcycle engine, diesel engine, carburetor, compressor, mold industry, etc.

Customized Available,OEM or ODM Available

Our Advantage

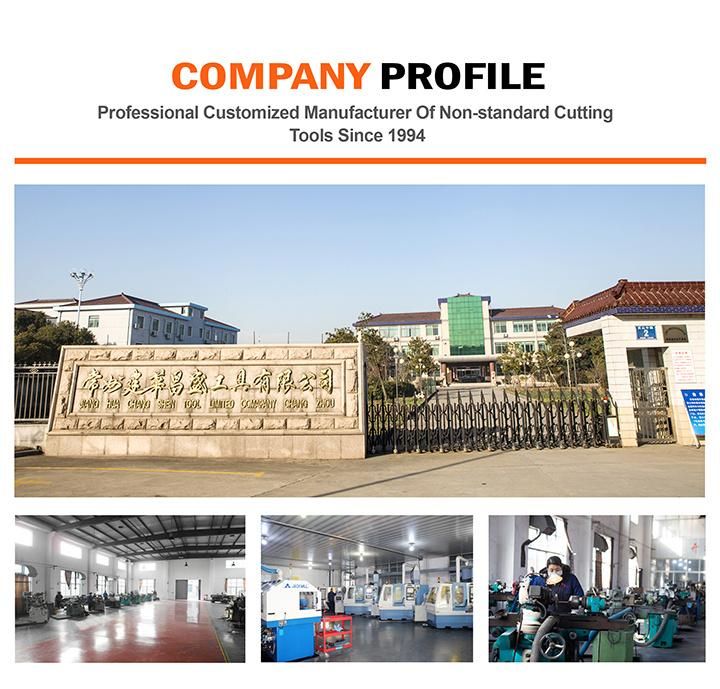

1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience and more professional.
2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.






1.Selected high-quality raw materials

Grade	YG10X	YG10.2 WF25(Taiwan)	K44 K40	Sandvik H10F
Hardness	HRC50	HRC55	HRC60	HRC65
Grain Size	0.7um	0.6um	0.5um	0.4um
Cobalt Content	10%	10%	12%	12.50%
Flexural Strength	3320N/mm2	4000N/mm2	4300N/mm2	4300N/mm2

100% original raw materials, no recycle

2.Super Coating

	TiN	TiCN	CrN	AlTiN	TiSiN	Nano	DLC
Hardness(HV)	2700	3000	2500	3200	3600	42(GPA)	3600
Thickness(UM)	2-6	2-6	2-6	2.5-3	3	3	0.5-10
Oxidation Temp(°)	600	400	700	900	1000	1200	350
Friction Coefficient	0.4	0.3	0.2	0.3	0.45	0.4	0.06
Color	Gold	SteelGray	SilverGrey	Black	Copper	Blue	SilverGrey

Super coating reduce the coefficient of friction, improve the efficency of machines and improve the tools life much.

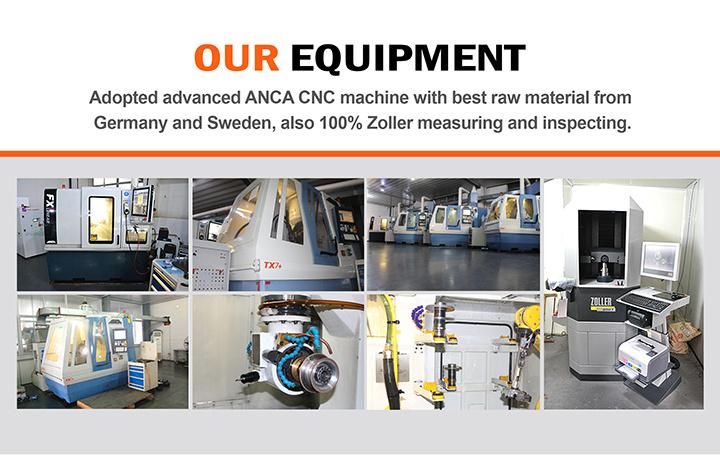

3.Imported CNC machine
1.ANCA from Australia
2.Tru Tech from USA
3.Jack Mill from TaiWan province of CHINA

4.Imported Test Machine
1.Zoller Genius 3s  Zoller TFT-Display
2.SEVEN OCEAN part of Hexagon

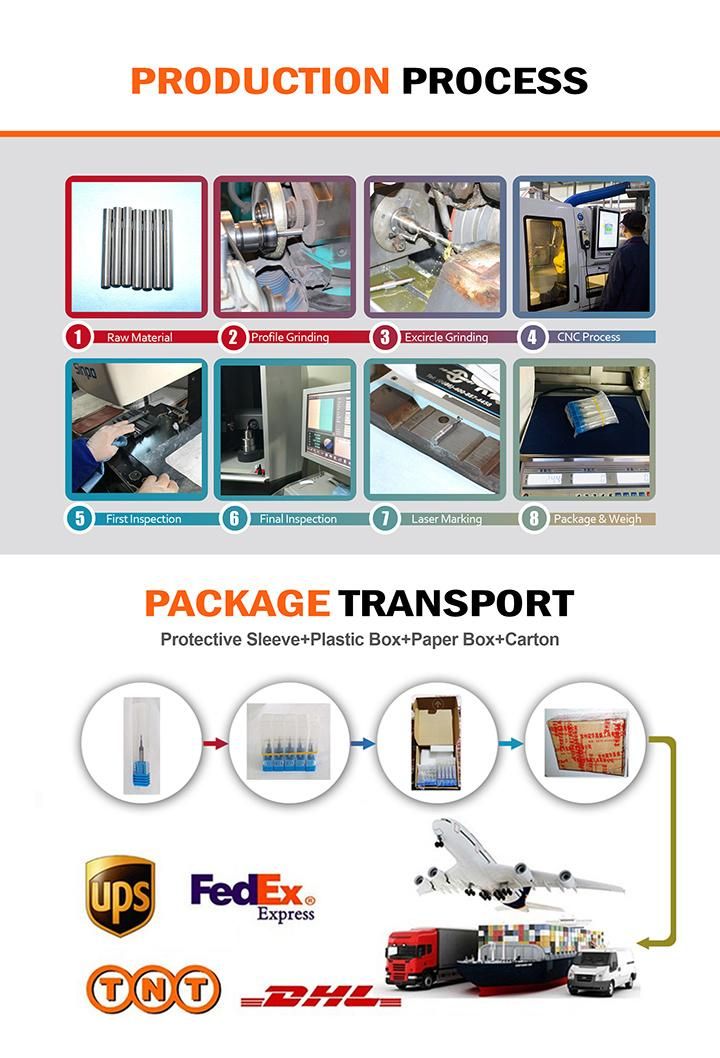

5.Strict measurement sequence Five step test
1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter the After the tools finished after CNC machine
4.Test flutes After coating
5.Test the packing before shipping



6.Packaging & Shipping
1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.

7.Delivery Time
1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.
