• Model NO.：Single Flute end mill
• Package：One Piece in Plastic Box, 10 Boxes in One Carton
• Export Markets：Global
• Material Composition：89% Carbide, 10%Co and 1% Others
• Suitable for：Copper, Cast Iron, Aluminum, Composite Material
• Certification：GS, Ce, ISO 9001
• Composition：89% Carbide, 10% Co, 1% Other Material
• Transport Package：Air
• Specification：SGS
• Trademark：Hiboo
• Origin：Changzhou Jiangsu China
• HS Code：8207709000
• Production Capacity：50000PCS,Mouth

Basic Info.

Model NO. Single Flute end mill Package One Piece in Plastic Box, 10 Boxes in One Carton Export Markets Global Material Composition 89% Carbide, 10%Co and 1% Others Suitable for Copper, Cast Iron, Aluminum, Composite Material Certification GS, Ce, ISO 9001 Composition 89% Carbide, 10% Co, 1% Other Material Transport Package Air Specification SGS Trademark Hiboo Origin Changzhou Jiangsu China HS Code 8207709000 Production Capacity 50000PCS/Mouth

Product Description

1. Specifications

Item Name:Solid Carbide Single Flute Straight Shank End Mill For Aluminum

Flute Dia:4.5mm

Flute Length:15mm

Shank Dia:6mm

Total Length:50mm

Weight:30g




Application Field:

HRC45 Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Hard Steel,Stainless Steel.

HRC50 Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.

HRC55 Suggest Cutting:Ordinary Steel,Hard Steel, Heat Resistant Steel,Stainless Steel,Ti Alloy.

HRC60 Suggest Cutting:Stainless Steel,Ti Alloy,Hardened Steel,Heat Resistant Steel,Quenched and tempered steel.

2.Changzhou Hiboo Tools



3. Raw Materials

SANDVIK of Sweden, Teagutec of Korean, Kennametal of American, Guhring of Germany;

And Zhuzhou YG10X, WC25F Taiwan.

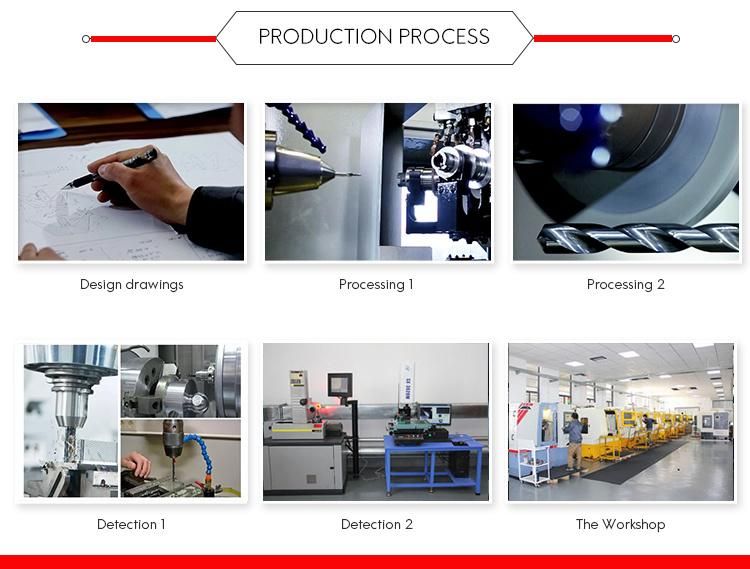

4. Our Advanced equipments

1. Walter CNC machine from Germany.
2. ANCA CNC machine from Australia.
3. Guhring detecting instrument from Germany.
4. MICHEAL DECHAL CNC Machine from Germany

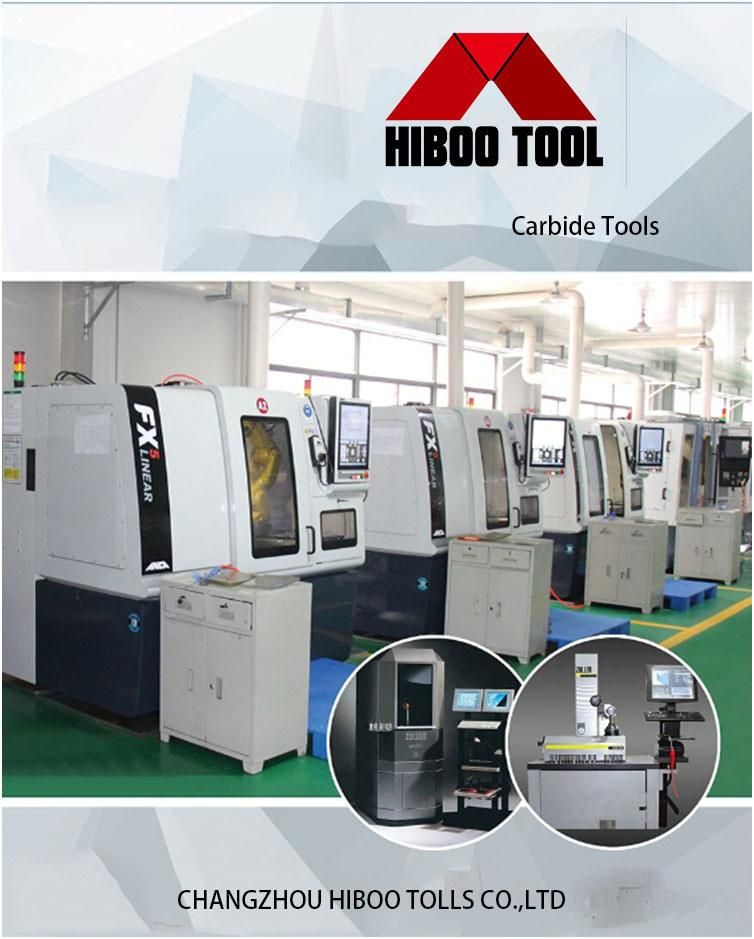

5.Our Workshop and Warehouse



6. Our advantages

1. Solid carbide tools are made by 5 Axi grainding machine with High toughness
High wearing futhre
2. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high-wearing feature.
3. Inspected by Zoller Machine
4. Workpiece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat treatment steel, aluminum alloy steel and customised drawings

7. Package
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)White parts for protect the flute of cutters.
(4)Laser brand and demensions on the body of cutters,   print labels.
(5)Put the goods encased with air bubble paper into the carton.
(6)Other packing will be accepted according to your needs.




8.Payment Term
 T/T,Western Union .

9.Contact us

If you have any interests in our different kinds of Tools,please don't hesitate to contact us.Warm welcome to your inquiry and consulting ! ! !


Note:
1. All the end mills, carbide drill bit and reamers should be used depending on there workpieces, then it may be play the biggest roles.
2. Cutting tools are sharp, when usage it please careful.
Any further questions, pls feel free to tell us. Thanks!

We are hot welcomed to visit our factory in Jiangsu China.

Diameter	Cutting Length	Shank Diameter	Over Length
1	3	4	50
1.5	4	4	50
2	6	4	50
2.5	7	4	50
3	8	4	50
3.5	10	4	50
4	10	4	50
4.5	13	6	50
5	13	6	50
5.5	15	6	50
6	15	6	50
7	20	8	60
8	20	8	60
9	25	10	75
10	25	10	75
11	30	12	75
12	30	12	75
14	35	14	80
16	45	16	100
18	50	18	100
20	50	20	100
