Carbide End Mill CNC Machine Cutting Tools Carbide Milling Cutter

ZhuZhou Rivictory New Material Co., Ltd.
  • Coating：Uncoated
  • Tooth Form：Straight Tooth
  • Tooth Space：Extra Dense Tooth
  • Structure：Welding Tooth
  • Material：Cemented Carbide
  • Type：Saw Blade Milling Cutter

Base Info

  • Origin：Zhuzhou
  • HS Code：2023512222
  • Production Capacity：50000

Description

Basic Info.

Origin Zhuzhou HS Code 2023512222 Production Capacity 50000

Product Description

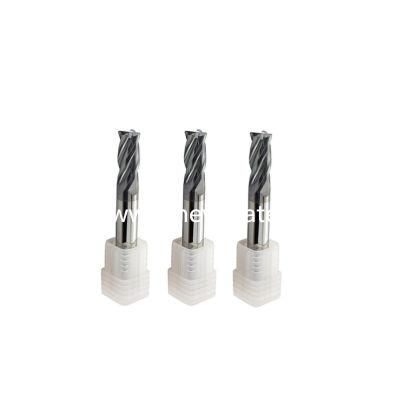

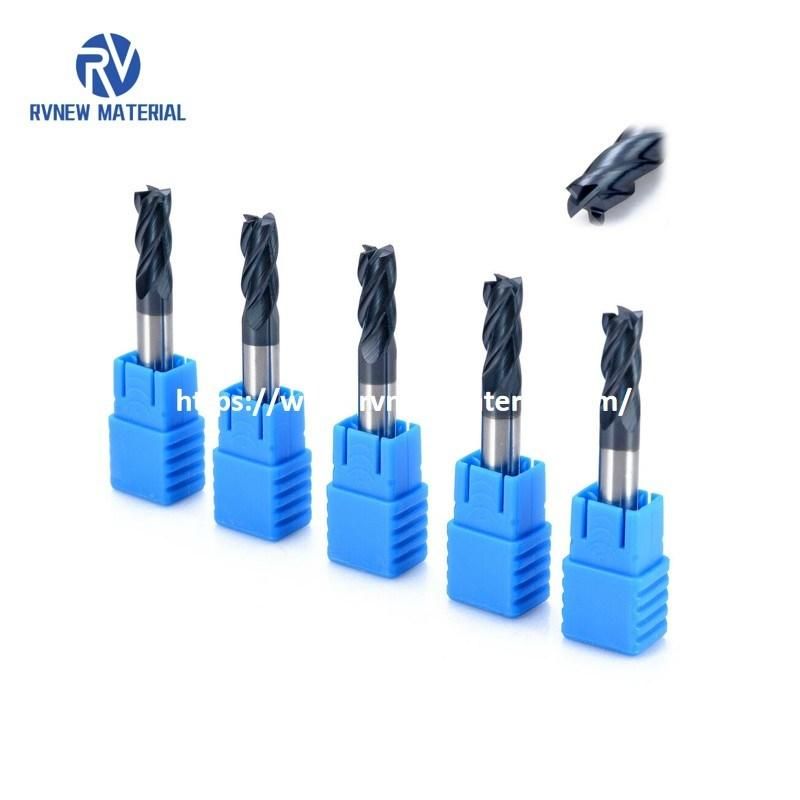

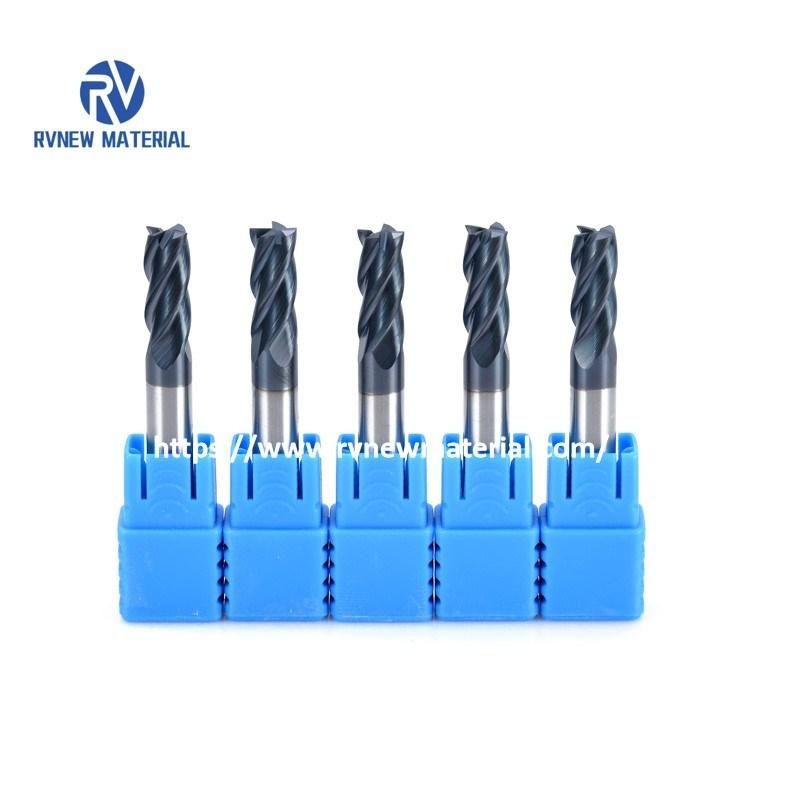

Carbide End Mill CNC Machine Cutting Tools Carbide Milling CutterFeatures:
--The milling cutter is made of high quality tungsten steel material with stable performance and long service time.
--The use of new ultra-fine particles of tungsten steel material, with high wear resistance and strength, exclusive high-speed cutting.
--This carbide end mill has the characteristic of high toughness, special high-hardness, high-speed cutting, help saving time.

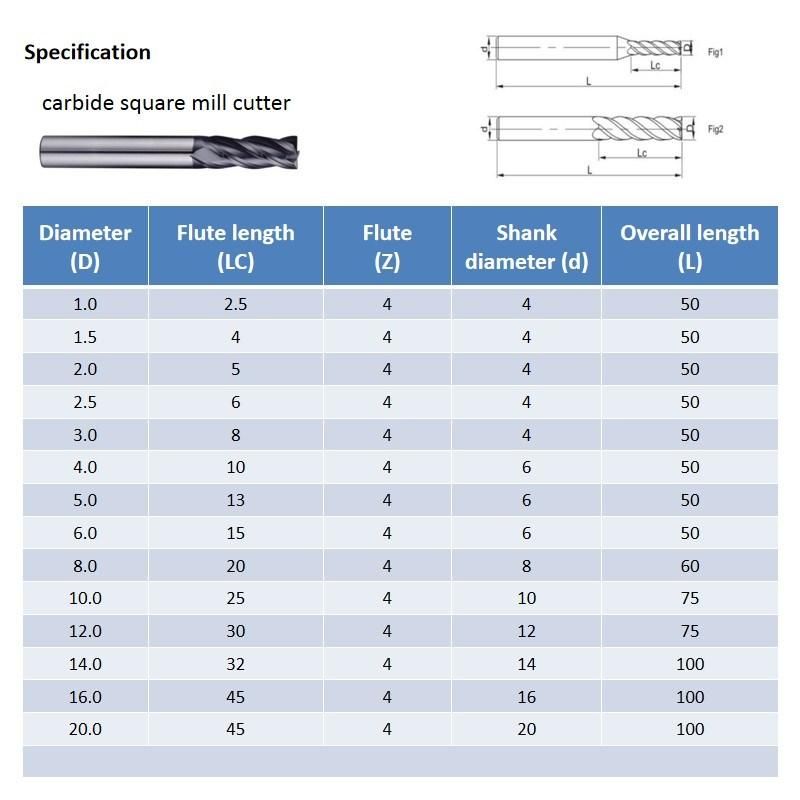

Product Parameter
Name
 Tungsten carbide end mill

MaterialHSS, Carbide ect.
Flutes2/4/6 flutes
HardnessHRC45/55/58/65
Helix Angle
 		35°, 45°
CoatingAlTiN, NACO BLUE, NACO BLACK, TiN etc.
SizeDia 1-20mm,Overall  length 50-150mm
Smooth FinishHighly Polished
FeatureExcellent chip evacuation

Super Raw Material
Type MaterialCoGrain SizeFlexural Strength
HRC45YG10X10%0.7um3320 N/mm2
HRC55
YG10.2&WF25(Taiwan)
 		10%0.6um4000 N/mm2
HRC60K40,K44(Germany)12%0.5um4300 N/mm2
HRC65H10F(Sweden)10%0.5um4300 N/mm2

Super Coating
TypeHardness
(HV)		Thickness
(UM)		Oxidation Temp
(ºC)		Friction CoeffientColor
AlTiN32002.5-39000.3Black
TiAIN28002.5-38000.3Violet
TiSiN3600310000.45Copper
NACO42(GPA)312000.4Blue

Carbide End Mill CNC Machine Cutting Tools Carbide Milling CutterCarbide End Mill CNC Machine Cutting Tools Carbide Milling CutterCarbide End Mill CNC Machine Cutting Tools Carbide Milling CutterCompany Profile
  Carbide End Mill CNC Machine Cutting Tools Carbide Milling Cutter

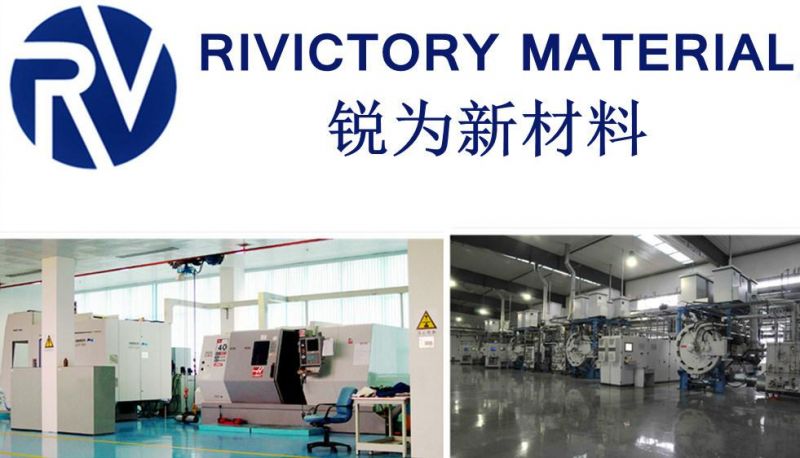

Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou City, Hunan Province, China, the largest tungsten carbide producing area in China. Our main products inclue: tungsten carbide blanks, milling cutters, carbide rods, and epoxy resin insulators,non-standard and so on.  We have a professional QC team follow to the System on ISO9001:2008,Covering the raw materials incoming ,production processes ,finished products and packaging to ensure high quality products output . At the same time, the company has its own research and development team, which can customize products according to customer needs.


Packaging and Shipment
Carbide End Mill CNC Machine Cutting Tools Carbide Milling CutterCarbide End Mill CNC Machine Cutting Tools Carbide Milling Cutter


FAQ

1. who are we?
We are based in Hunan, China, start from 2020,sell to Eastern Europe(30.00%),Western Europe(20.00%),North America(20.00%),Southern Europe(5.00%),Domestic Market(5.00%),Northern Europe(5.00%),South Asia(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tungsten Carbide Rod,Carbide End Mill,Epoxy Resin Insulator

4. why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
