CNC Tool DC Precision Collets DC Spring Collet Straight Collet
Kunshan Canuri Precision Tools Co., Ltd.- Certification：ISO9001:2008
- Application：Milling Machine, Drilling Machine, Boring Machine
- Standard：Standard
- Coating：Uncoated
- Material：Carbon Steel
- Processing Types：Machinig
Base Info
- Model NO.：DC10
- Model Number：DC10 Collet
- Accuracy：0.001mm
- Usage：Milling,Drilling,Boring
- Transport Package：Inner with Plastic Box, Outer with Cartons
- Specification：DC10
- Trademark：SEPAL
- Origin：China
- HS Code：84662000
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. DC10 Model Number DC10 Collet Accuracy 0.001mm Usage Milling/Drilling/Boring Transport Package Inner with Plastic Box, Outer with Cartons Specification DC10 Trademark SEPAL Origin China HS Code 84662000 Production Capacity 20000PCS/MonthProduct Description
DC Collet
Size:2-12mm
Accuracy:0.005mm
Collect range: 3-12mm
Material: 65Mn
Hardness: HRC50-56

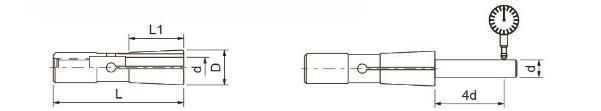

| Model | D | d | L | L1 | Collet Range |
| DC6-2D | 9.8 | 2 | 36 | 10 | 1.75-2.00 |
| DC6-2.25D | 9.8 | 2.25 | 36 | 10 | 2.00-2.25 |
| DC6-2.5D | 9.8 | 2.5 | 36 | 10 | 2.25-2.50 |
| DC6-2.75D | 9.8 | 2.75 | 36 | 14 | 2.50-2.75 |
| DC6-3D | 9.8 | 3.0 | 36 | 14 | 2.75-3.00 |
| DC6-3.25D | 9.8 | 3.25 | 36 | 14 | 3.00-3.25 |
| DC6-3.5D | 9.8 | 3.5 | 36 | 14 | 3.25-3.50 |
| DC6-3.75D | 9.8 | 3.75 | 36 | 14 | 3.50-3.75 |
| DC6-4D | 9.8 | 4 | 36 | 14 | 3.75-4.00 |
| DC6-4.25D | 9.8 | 4.25 | 36 | 14 | 4.00-4.25 |
| DC6-4.5D | 9.8 | 4.5 | 36 | 14 | 4.25-4.50 |
| DC6-4.75D | 9.8 | 4.75 | 36 | 14 | 4.50-4.75 |
| DC6-5D | 9.8 | 5 | 36 | 16 | 4.75-5.00 |
| DC6-5.25D | 9.8 | 5.25 | 36 | 16 | 5.00-5.25 |
| DC6-5.5D | 9.8 | 5.5 | 36 | 16 | 5.25-5.50 |
| DC6-5.7D | 9.8 | 5.75 | 36 | 16 | 5.50-5.75 |
| DC6-6D | 9.8 | 6 | 36 | 16 | 5.75-6.00 |
| Model | D | d | L | L1 | Collet Range |
| DC6-3E | 9.6 | 3 | 36 | 14 | 3 |
| DC6-3.175E | 9.6 | 3.175 | 36 | 14 | 3.175 |
| DC6-4E | 9.6 | 4 | 36 | 14 | 4 |
| DC6-5E | 9.6 | 5 | 36 | 16 | 5 |
| DC6-6E | 9.6 | 6 | 36 | 16 | 6 |
| DC8-3E | 15 | 3 | 45 | 15 | 3 |
| DC8-4E | 15 | 4 | 45 | 26 | 4 |
| DC8-6E | 15 | 6 | 45 | 24 | 6 |
| DC8-8E | 15 | 8 | 45 | 26 | 8 |
| DC10-3E | 19 | 3 | 52 | 15 | 3 |
| DC10-4E | 19 | 4 | 52 | 18 | 4 |
| DC10-6E | 19 | 6 | 52 | 24 | 6 |
| DC10-8E | 19 | 8 | 52 | 26 | 8 |
| DC10-10E | 19 | 10 | 52 | 30 | 10 |
| DC12-4E | 22 | 4 | 60 | 15 | 4 |
| DC12-6E | 22 | 6 | 60 | 25 | 6 |
| DC12-8E | 22 | 8 | 60 | 30 | 8 |
| DC12-10E | 22 | 10 | 60 | 33 | 10 |
| DC12-12E | 22 | 12 | 60 | 33 | 12 |
