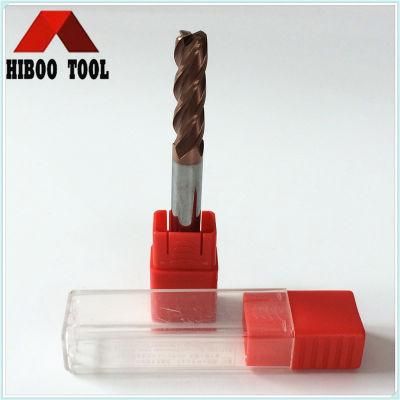

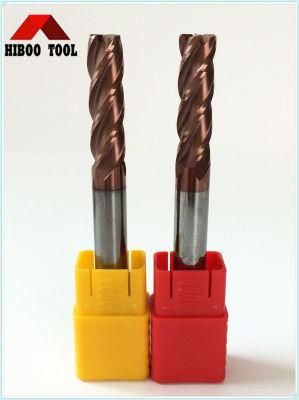

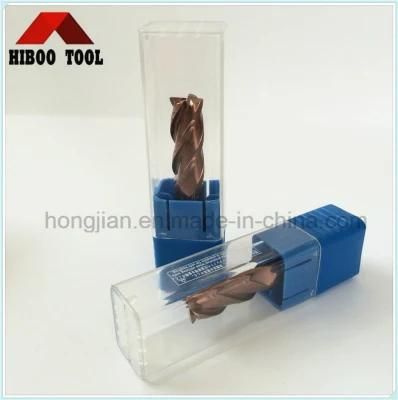

China Factory HRC45 Carbide Corner Raduis End Mill
Changzhou Hongjian Tools Co., Ltd.- Coating：Coating, Coating
- Tooth Form：as Requirements, Spiral Tooth
- Tooth Space：Standard, Standard
- Structure：Integral, Integral
- Material：Carbide, Carbide
- Type：Milling Cutter, Milling Cutter
Base Info
- Model NO.：corner raduis end mill
- Grain Size：0.7um
- Helix Angle：35 Degree
- HRC：45
- Bending Strength：>=3800
- Usage：General Purpose,High Speed Cutting
- Finish Surface：Plain Surface, The Side, Socket
- Suitable for：Copper, Cast Iron, Carbon Steel, Mould Steel
- Free Service：OEM
- Transport Package：1PC in a Plastic Tube, 10PCS a Group
- Specification：SGS
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Month
Description
Overview
Product Descriptioncutting Flute Shank Corner A.0.L d l D R Corner L 1×3×4D×R0.2×50L×4F 1 3 4 R0.2 50 1×3×4D×R0.3×50L×4F 1 3 4 R0.3 50 1.5×3×4D×R0.2×50L×4F 1.5 4 4 R0.2 50 1.5×3×4D×R0.3×50L×4F 1.5 4 4 R0.3 50 2×6×4D×R0.2×50L×4F 2 6 4 R0.2 50 2×6×4D×R0.3×50L×4F 2 6 4 R0.3 50 2.5×8×4D×R0.2×50L×4F 2.5 6 4 R0.2 50 2.5×8×4D×R0.5×50L×4F 2.5 6 4 R0.5 50 3×8×3D×R0.3×50L×4F 3 8 3 R0.3 50 3×8×3D×R0.5×50L×4F 3 8 3 R0.5 50 3×8×4D×R0.3×50L×4F 3 8 4 R0.3 50 3×8×4D×R0.5×50L×4F 3 8 4 R0.5 50 4×10×4D×R0.5×50L×4F 4 10 4 R0.5 50 4×10×4D×R1.0×50L×4F 4 10 4 R1.0 50 4×10×6D×R0.5×50L×4F 4 10 6 R0.5 50 4×10×6D×R1.0×50L×4F 4 10 6 R1.0 50 5×13×6D×R0.5×50L×4F 5 13 6 R0.5 50 5×13×6D×R1.0×50L×4F 5 13 6 R1.0 50 6×15×6D×R0.5×50L×4F 6 15 6 R0.5 50 6×15×6D×R1.0×50L×4F 6 15 6 R1.0 50 8×20×8D×R0.5×60L×4F 8 20 8 R0.5 60 8×20×8D×R1.0×60L×4F 8 20 8 R1.0 60 8×20×8D×R1.5×60L×4F 8 20 8 R1.5 60 10×25×10D×R0.5×75L×4F 10 25 10 R0.5 75 10×25×10D×R1.0×75L×4F 10 25 10 R1.0 75 10×25×10D×R1.5×75L×4F 10 25 10 R1.5 75 10×25×10D×R2.0×75L×4F 10 25 10 R2.0 75 12×30×12D×R0.5×75L×4F 12 30 12 R0.5 75 12×30×12D×R1.0×75L×4F 12 30 12 R1.0 75 12×30×12D×R1.5×75L×4F 12 30 12 R1.5 75 12×30×12D×R2.0×75L×4F 12 30 12 R2.0 75 3×8×3D×R0.3×75L×4F 3 8 3 R0.3 75 3×8×3D×R0.5×75L×4F 3 8 3 R0.5 75 3×8×4D×R0.5×75L×4F 3 8 4 R0.5 75 3×8×4D×R1.0×75L×4F 3 8 4 R1.0 75 4×10×4D×R0.5×75L×4F 4 10 4 R0.5 75 4×10×4D×R1.0×75L×4F 4 10 4 R1.0 75 4×10×6D×R0.5×75L×4F 4 10 6 R0.5 75 4×10×6D×R1.0×75L×4F 4 10 6 R1.0 75 5×13×6D×R0.5×75L×4F 5 13 6 R0.5 75 5×13×6D×R1.0×75L×4F 5 13 6 R1.0 75 6×15×6D×R0.5×75L×4F 6 15 6 R0.5 75 6×15×6D×R1.0×75L×4F 6 15 6 R1.0 75 8×20×8D×R0.5×100L×4F 8 20 8 R0.5 100 8×20×8D×R1.0×100L×4F 8 20 8 R1.0 100 8×20×8D×R1.5×100L×4F 8 20 8 R1.5 100 10×25×10D×R0.5×100L×4F 10 25 10 R0.5 100 10×25×10D×R1.0×100L×4F 10 25 10 R1.0 100 10×25×10D×R1.5×100L×4F 10 25 10 R1.5 100 10×25×10D×R2.0×100L×4F 10 25 10 R2.0 100 12×30×12D×R0.5×100L×4F 12 30 12 R0.5 100 12×30×12D×R1.0×100L×4F 12 30 12 R1.0 100 12×30×12D×R1.5×100L×4F 12 30 12 R1.5 100 12×30×12D×R2.0×100L×4F 12 30 12 R2.0 100
Company Profile
Our Advantages
1. HRC48 Micro grain carbide rod
order numberCompany ProfileOur AdvantagesExhibition
