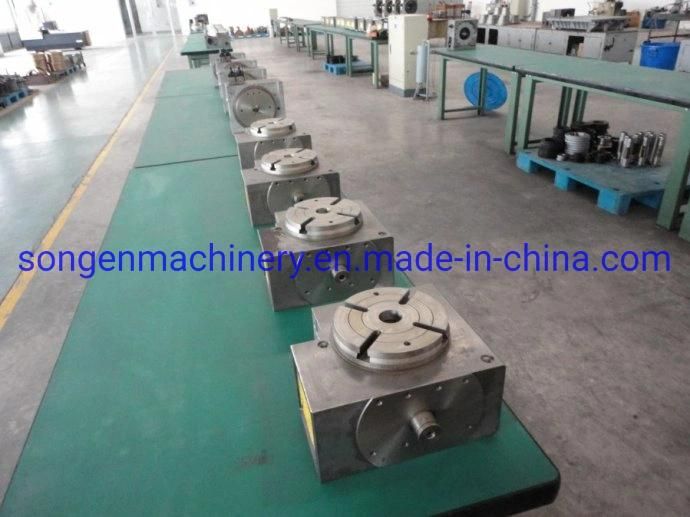

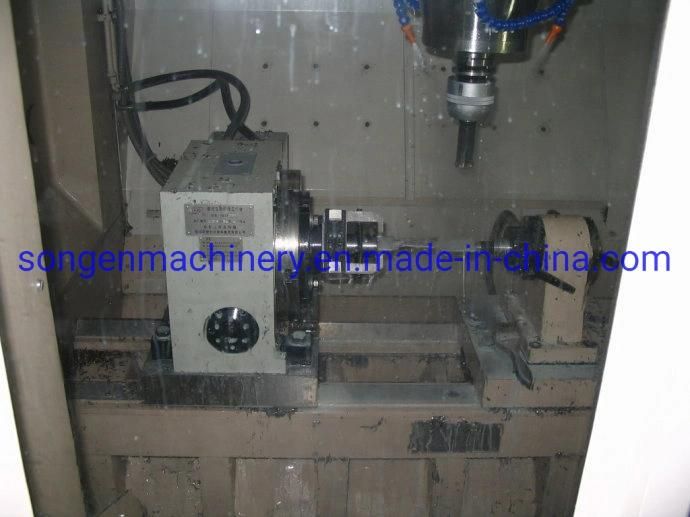

Center Heights 110, 125, 140, 145, 150mm Universal Nc Dividing Heads
Songen Machinery Co., Ltd.- Certification：CE, ISO 9001:2008, GS
- Function：Universal
- Structure：Vertical And Horizontal
- Material：Metal
- Type：CNC Controlled
- Center Height：110 - 150mm
Base Info
- Model NO.：NCDH110, NCDH125A, NCDH140, NCDH145, NCDH150
- Worm Gear Ratio：1:90
- Indexing Accuracy：60"
- Repeatability Accuracy：7.5"
- Logo Printing：with Logo Printing
- Size：Middle
- Customized：Customized
- Transport Package：Plywood Case
- Trademark：Songen
- Origin：China
- HS Code：84663000
- Production Capacity：1000 Sets,Year
Description
SpecificationsNCDH110 NCDH125A NCDH125 NCDH140 NCDH145 NCDH150 Center height, mm 110 125 125 140 145 150 Diameter of the table surface, mm 125 160 160 160 160 160 T-slot width on table surface, mm 10H12 10H10 10H10 10H10 10H10 10H10 Worm gear ratio 1:90 1:90 1:90 1:90 1:90 1:90 Diameter of centering bush, mm 16H7 20H7 20H7 20H7 20H7 20H7 Diameter of indexer tram bushing, mm 10H8 10H8 10H8 10H8 10H8 10H8 Width of positioning key, mm 18 18 18 18 18 18 Spindle nose connection, mm Dia.52h6 No external thread holes A16 Collet None None 3J, 5C c/w intermediate bushing None 3J, 5C c/w intermediate bushing Motor torque, N.m ≤2.94 Air pressure, Mpa 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.4~0.6 0.45~0.5 Repeatability accuracy, Sec 7.5 Indexing accuracy, Sec 60 60 60 60 60 45 Max. tangential torque, N.m 120 Max. speed, RPM 11.1 11.1 11.1 11.1 11.1 33.3 Net weight, Kgs 50 80 80 90 90 95 Gross weight, Kgs 58 88 88 100 100 102 Load capacity, Kgs Horizontal 100 150 150 150 150 150 Vertical 50 80 80 80 80 80
