• Model NO.：GT
• Accuracy：0.005mm
• Transport Package：Wooden Box and Cartons
• Specification：GT100 GT125 GT150 GT175 GT200 GT300
• Trademark：ZH
• Origin：China
• HS Code：84663000
• Production Capacity：1000sets,Month

Basic Info.

Model NO. GT Accuracy 0.005mm Transport Package Wooden Box and Cartons Specification GT100 GT125 GT150 GT175 GT200 GT300 Trademark ZH Origin China HS Code 84663000 Production Capacity 1000sets/Month

Product Description

China Modular Vise Manufacturer GT Precision Machining Vise
Product description 1. Produced of high quality steel, carburized to surface hardness:HRC58-62

2. Parallelism 0.005mm, squareness 0.005mm, can work with two and more vises together

3. Locate position by pilot pin, adjust pin on body according to opening size, then clamp quickly.

4. It is widely used on machining center and other precision machine tools

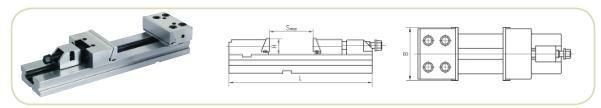

Order No.	B(mm)	H(mm)	Smax(mm)	L(mm)	(KG)  Clamping force
GT100-I		30	100	270	3000
GT125-I	125	40	150	345	3000
GT150A-I	150	50	200	420	5000
GT150B-I	150	50	300	520	5000
GT150C-I	150	50	400	620	5000
GT175A-I	175	60	200	455	6000
GT175B-I	175	60	300	555	6000
GT175C-I	175	60	400	655	6000
GT175D-I	175	60	500	755	6000
GT175E-I	175	60	600	855	6000
GT200A-I	200	65	200	495	10000
GT200B-I	200	65	300	595	10000
GT200C-I	200	65	400	695	10000
GT200D-I	200	65	500	795	10000
GT200E-I	200	65	600	895	10000
GT300A-I	200	80	200	535	12000
GT300B-I	300	80	300	635	12000
GT300C-I	300	80	400	735	12000
GT300D-I	300	80	500	835	12000
GT300E-I	300	80	600	935	12000
GT300F-I	300	80	700	1035	12000
GT300G-I	300	80	800	1135	12000

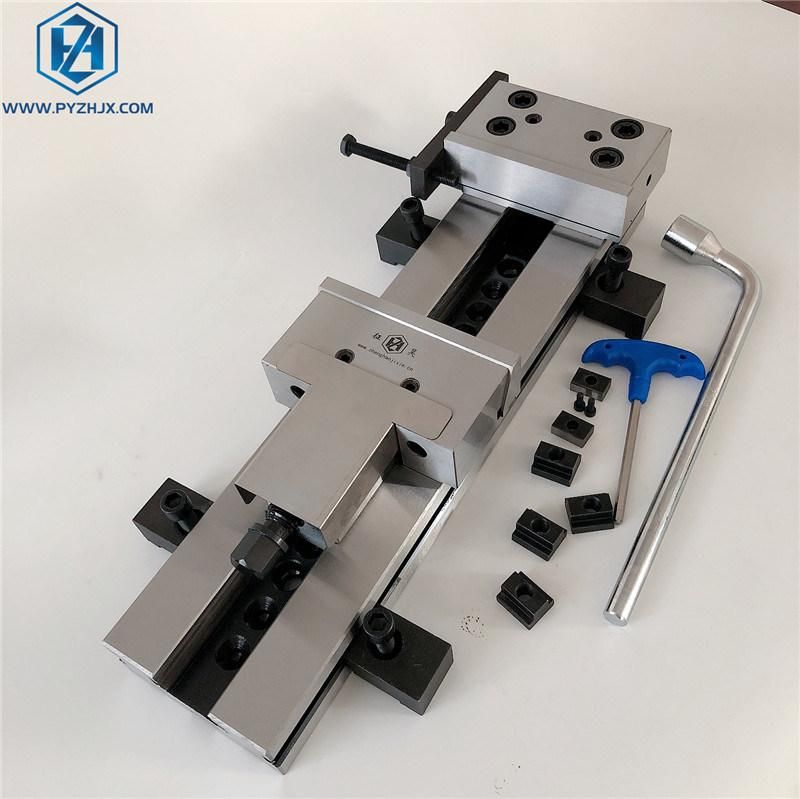

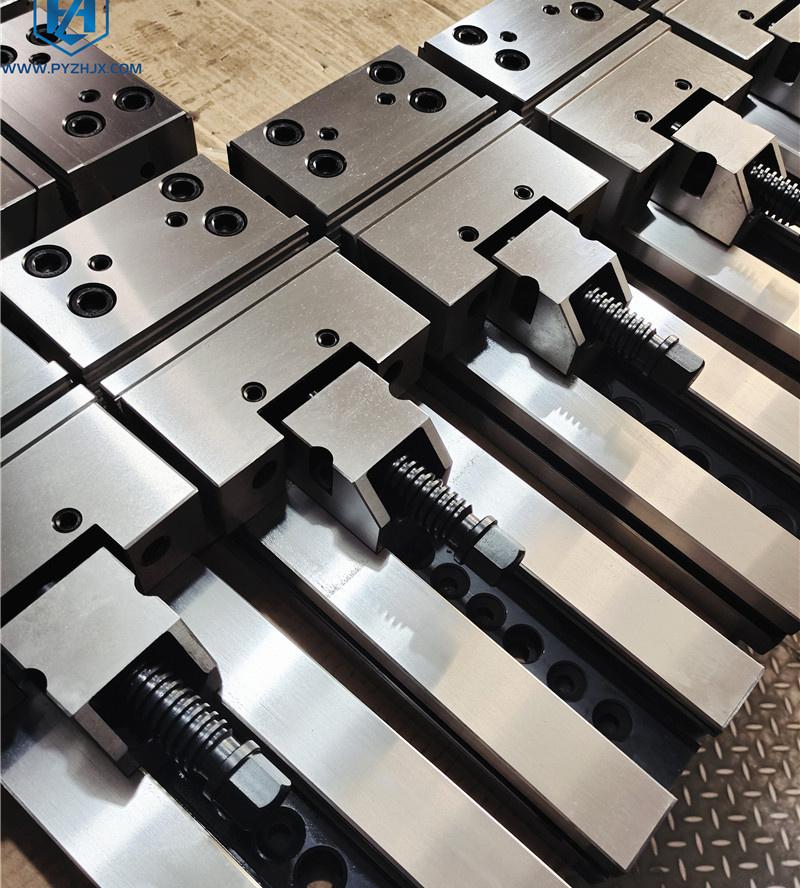

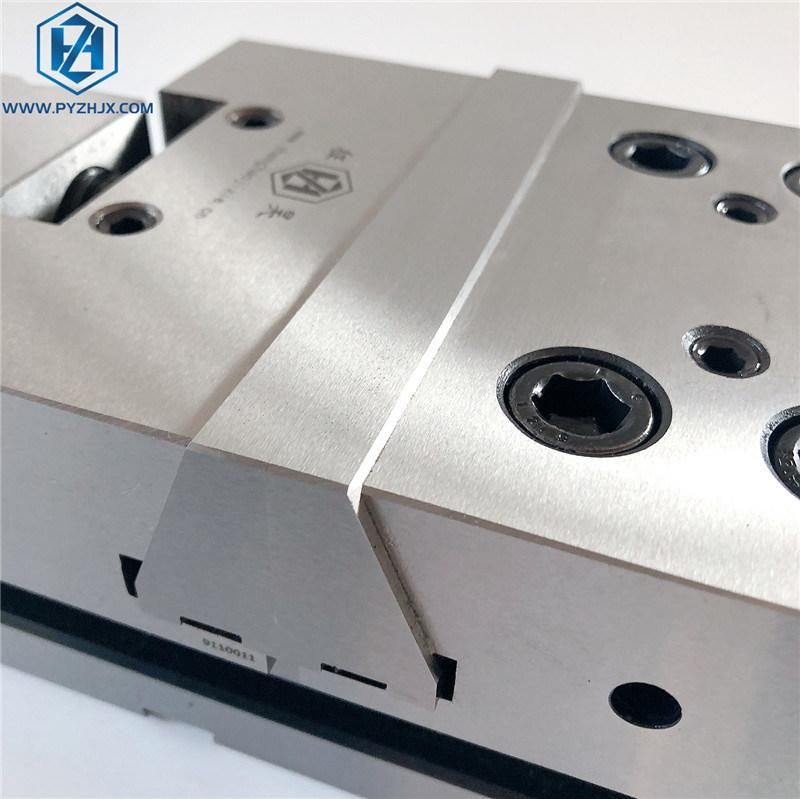

Product Detailed Images

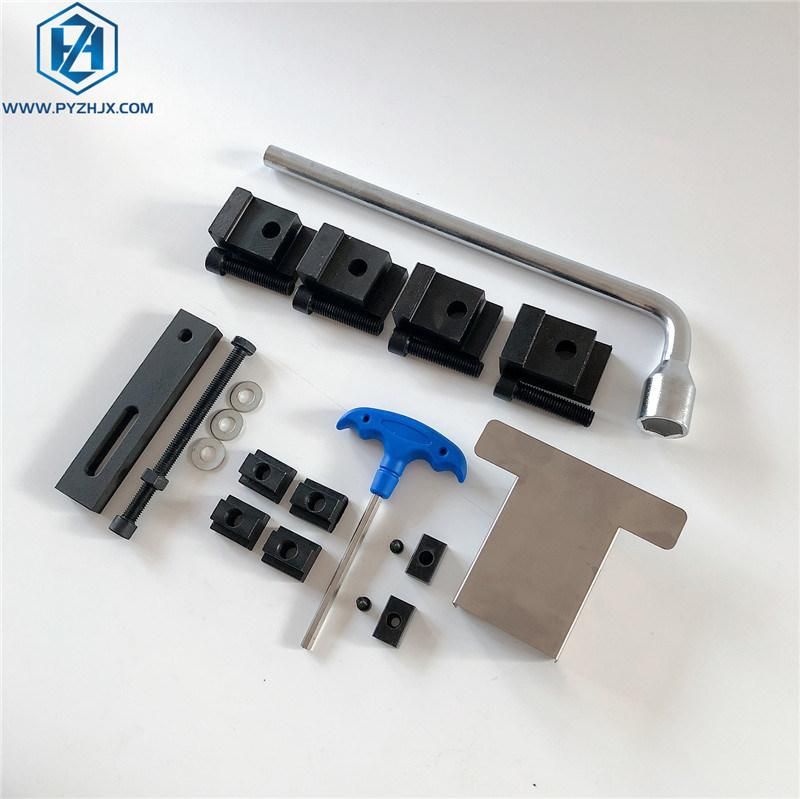

Vise accessories

Packing&Delivery

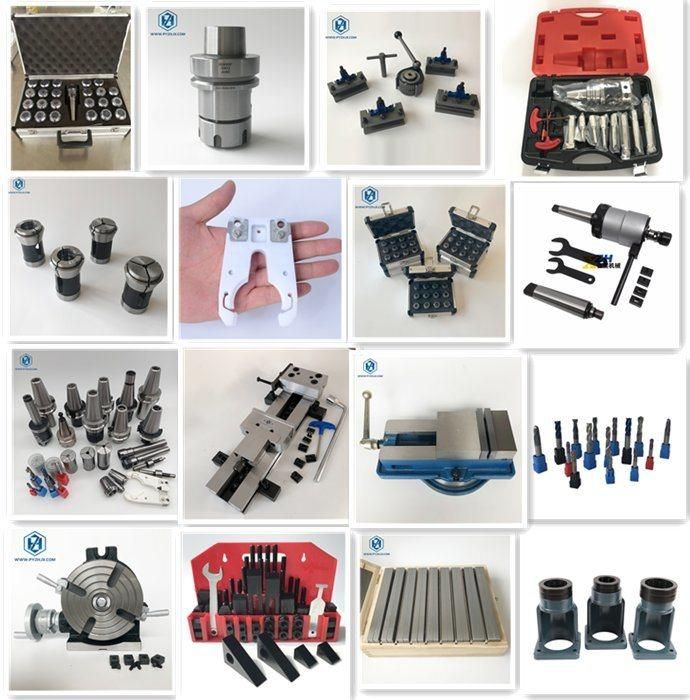

Company Products:

Machine tool Accessories: tool holders, vises, collets, end mills, face mills, rotary table chuck sets, quick change tool post and holder sets, etc

Vises: GT modular vise, QKG precision vises, QGG precision vises, QM machine vises, Q41 machine vises, Q97 machine vises, Q93 machine vises, Q13 machines vises, etc

Tool Holders: BT tool holders, DIN69871 SK Tool Holders, NT tool holders, CAT tool holders, ISO Tool Holders, HSK Tool Holders, morse taper tool holders, R8, straight shank tool holders, etc.

Collets: ER Collets, ERC Collets, ERG Collets, Straight Collets, OZ Collets, W25 collets, DIN6343 collets, SK collets, 5C collets, etc.

Accessories: Tool Holder Bushing, Nut and Spanner, Pull Stud, Tool Holder Locking Device, Live Center etc.

Company Advantages

Rich Experience --- Zhenghao started manufacturing precision tool vises in the early year of 1998 and has became a leader in supplying the machine tools accessories in China at an affordable prices. Adequate Stocks --- With more than 20 years experience, our factory has a high product capacity, backed by professional team of skilled and experienced labour. 100% Quality --- Our precision tool vises are manufactured according to international standards like ISO, CE etc.
Package --- All the packages are strictly in accordance with export requirements, We also provide packing our products in our
customer's brand name.
Delivery --- Prompt shipment of orders, will arrange shipment for you as soon as got your payment.
The main products are precision vises, elastic collets, mill chucks, quick change chucks, tap chucks, boring heads, CNC tool holder, adapter and other series spring collet. Our productions export to more than 30 countries and regions. including the USA, the UK, Germany, Italy, Canada Britain and Spain. Our company adheres to the principles of "quality first, customers supreme and reputation fundamental". They are deeply trusted and appreciated by customers both from at home and abroad.


FAQ

1. Are you a factory?
Yes, Zhenghao has been established in 1998, we have been manufacturing precision modular vises for more than 22 years.

2. How can you guarantee the quality?
Pre-production sample can be provided before mass production, and we always do final inspection before shipment.

3. What else can you produce?
Collets,Precision tool Vise,Tool Holders etc,.

4. What's your advantages over other suppliers?
We are a professional factory for CNC lathe tool accessories, we can make sure to provide you the best services with rich
production experiences, stick quality control system and after-sales system.

5. What services can Zhenghao provides?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency: USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash
