• Model NO.：300x2.5x32mm
• Type：Circular Saw Machine
• Hardness：HRC62-65
• Tooth Grinding：CNC Tooth Grinding Machine
• Heatment Treatment：Salt Bath
• Tooth Number：Subject to Order
• Material：HSS
• Saw Body Thickness：2.5mm
• Bore：32mm
• Delivery Time：4-6 Weeks After Order
• Application：Stainless Steel Tube Cutting.
• Transport Package：10PCS Per Carton
• Specification：300x2.5x32mm
• Trademark：FUWEISI, BOSS CUT
• Origin：China, Germany, Japan, USA Material
• HS Code：8202399000
• Production Capacity：30000PCS Per Month

Basic Info.

Model NO. 300x2.5x32mm Type Circular Saw Machine Hardness HRC62-65 Tooth Grinding CNC Tooth Grinding Machine Heatment Treatment Salt Bath Tooth Number Subject to Order Material HSS Saw Body Thickness 2.5mm Bore 32mm Delivery Time 4-6 Weeks After Order Application Stainless Steel Tube Cutting. Transport Package 10PCS Per Carton Specification 300x2.5x32mm Trademark FUWEISI, BOSS CUT Origin China, Germany, Japan, USA Material HS Code 8202399000 Production Capacity 30000PCS Per Month

Product Description

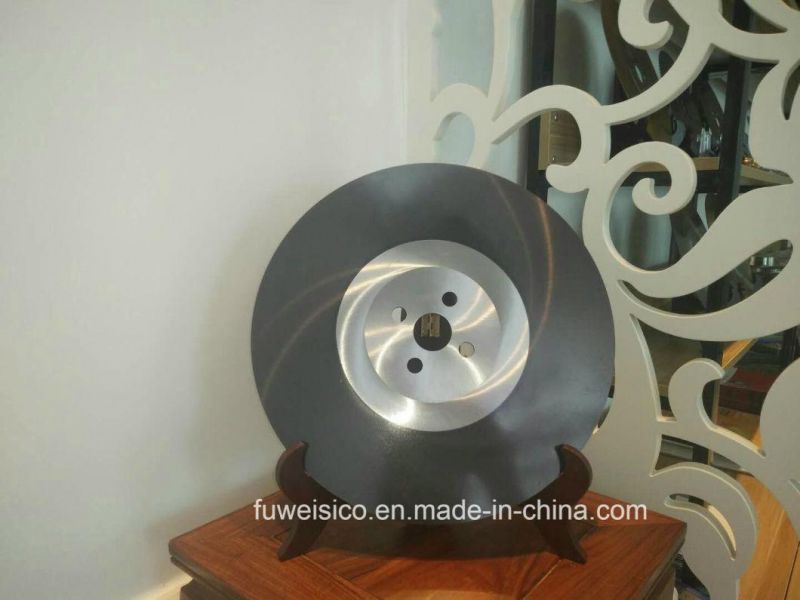

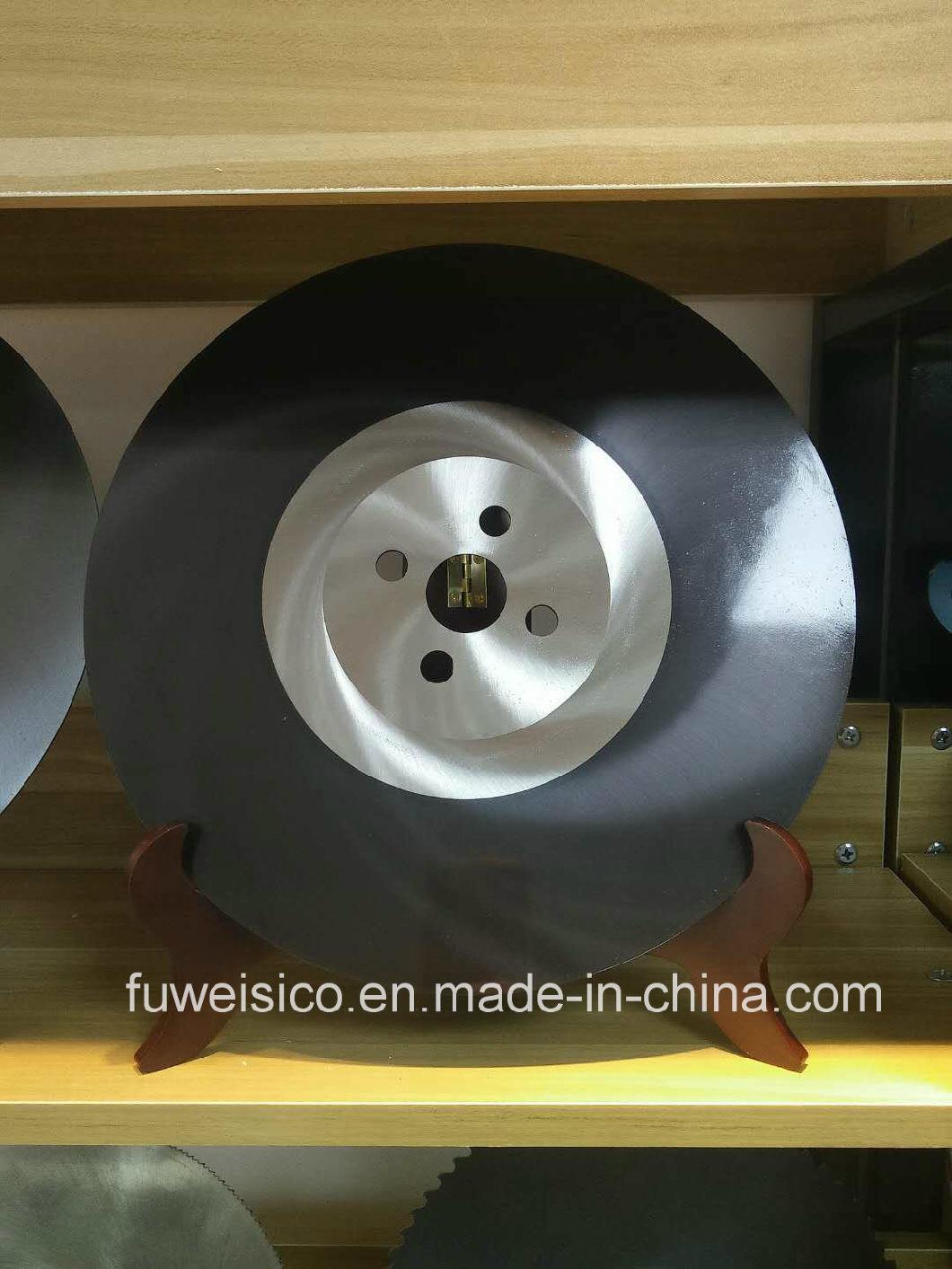

Hiqh Quality FUWEISI HSS M2,M35 CIRCULAR SAW BLADE FOR STAINLESS STEEL CUTTING.SUCH AS 304,401. HARD MATERIAL.

Type:
TIALN PLUS PVD COATED.

Tooth form:
A/AW/B/BW/Hz

Diameter:
200mm; 225mm, 275mm, 300mm,
315mm, 350mm, 370mm, 400mm, 425mm, 450mm.500mm,550mm,600mm,630mm.

Thickness:
1.2mm; 1.6mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm. 4.0mm.

Bore diameter:
32mm, 38mm, 40mm, 50mm or customer bore size.

Technical data of TiALN coating:

Colour: Dark Black.

Process: PVD

Hardness: 2500HV

Friction: 0.4

Thickness: 1-4mm.

Max cutting temperature: 600 degree.

Operation:
Structural steel
Alloyed steels
Steel pipes and profiles
Pipes and profiles out non ferrous metals

Technical recommendation:
Raising of the coating hardness by reducing the friction
Universal coating for better sawblade life
50-100%higher speed and feed rates
Prevention of side pick-UPS

Production is based on DIN standards 1836, 1837, 1838 and 1840, extended by the refined "FUWEISI" manufacturing standards. The delivery program consists of a range of standard sawblades which can be delivered from stock and a range of special sawblades to be produced to customer specifications.

The physical vapor deposition--PVD--is a technology used to deposit thin metallic layers on several types of substrate.The process is carried out under vacumme where the metals that will be deposited(zirconim,tianium,chrome) are evaoporated.Due to the kinetic energy and the outstanding pptential applied on the blade,the metallic ions are atttracted to the blade surface to be coated,together with a process gas forming the desired coating.

The PVD is indicated to innovative products and that need to meet high tribological standards(surface hardness and abrasion,scratch and corrosion resistance.)

After PVD coating,we have:

*** Higher tool durability.
*** Increased tool performance.
*** Cutting time reduction.
*** Better cut piece Quality.

The FUWEISI brand HSS PVD coated sawblades are supplied as standard in high speed steel grade M2 = DIN 1.3343. It suits for the cutting of the materilas like stainless steel, iron pipe, steel pipe, etc.

What circular sawing machines can use FUWEISI HSS PVD coated circular saw blade?


ADIGE SALA	FABRIS	MAIR	SCOTCHMAN
BAIER	FEMI	MEP	SIMEC
BEWO	FONG-HO	METORA	SINICO
BIMAX	GERNETTI	MBM MERCURY	SOCO
BONAK	HABERLE	MTM	STAYER
BROBO WALDOWN	IBP PEDRAZZOLI	OMES	STARTRITE
CONNI	IMET	OMP	THOMAS
DALLY	KALTENBACH	RAYGOR	TRENNJAEGER
DEMURGER	KOSOKU	RGA	TOMET
DONG JIN	MAC	ROBEJO	ULMIA
DORINGER	MACC	ROHBI	WAGNER
EISELE	MACO	RURACK OTTO	WUNSCH

Why choose FUWEISI Saw Industry?

• 20 Years experience in saw blade manufacturing.
• Certified high speed steel material from wellknown steel mill in China.
• Professional sales & technical team at your service.
• FUWEISI Saw Industry is specialized in providing whole metal cutting blades and solutions  for customers.
• Factory with the best competitive price and quality .
• Directly after-sales service from Factroy
• Owned different certificates such as CE, TUV,SGS, ISO9001, etc.
• Owned direct export license,and have been exporting to more than 20 countries and regions.

Do you accept OEM orders?

• Yes, we can make OEM for saw blades according to your requests,but we have minimum order qty to start.

What is your warranty?

• Quality: 100% assured by strict QC system,and manufactured according to export standard.

What is the payment term if I placed orders to you?

• Normally we will accept T/T or L/C. More details can be discussed case by case.

What is your lead time?

• 15 to 60 days after receiving deposit. Special situation can be discussed case by case.
