• Model NO.：CNMG~WNMG
• Style：Universal Tool
• Cutting Process：Turning Tools
• Work Type：External Work
• Transport Package：Plastic and Carton Packing
• Specification：ISO
• Trademark：Excelledge
• Origin：Chengdu, China
• HS Code：82081011
• Production Capacity：500, 000 PCS,Month

Basic Info.

Model NO. CNMG~WNMG Style Universal Tool Cutting Process Turning Tools Work Type External Work Transport Package Plastic and Carton Packing Specification ISO Trademark Excelledge Origin Chengdu, China HS Code 82081011 Production Capacity 500, 000 PCS/Month

Product Description

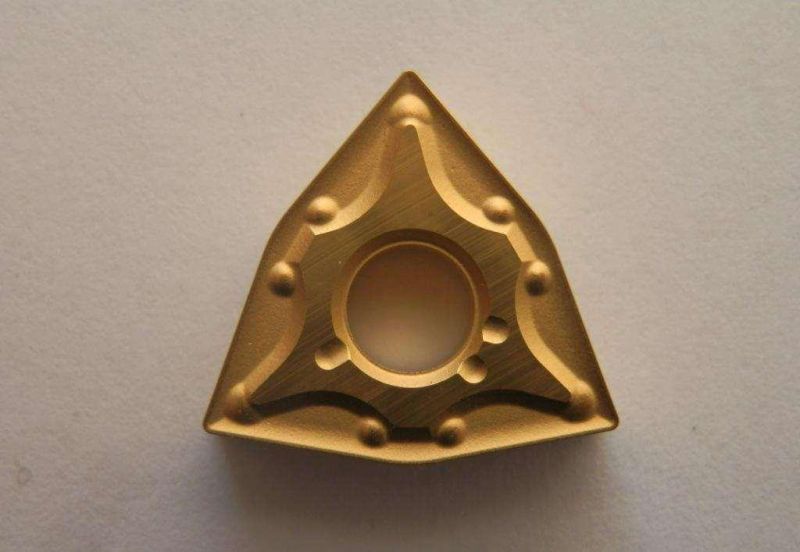

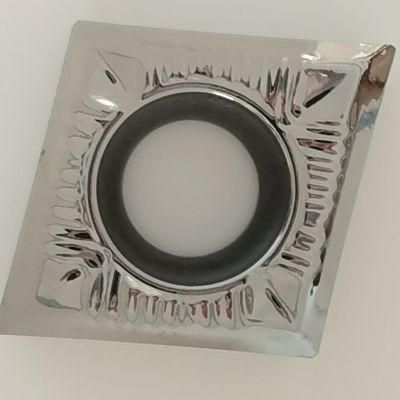

Extensive range of Carbide Inserts,
Excellent resistance of machanical and thermal shock.
Outstanding edge strength, resistance to crater wear, deformation and edge build-up.
Advanced MT-CVD coating technology for extended tool life.
The Carbide Inserts also can be made according to your own specification.


Grade	Description	Equivalent to ISO
JCP1015	MT-CVD coated, the substrate with excellent wear resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for finishing of steel.	P05~P15
JCP2015	MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for semi-finishing of steel.	P10~P25
JCP3015	MT-CVD coated, the substrate with excellent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.	P20~P35
JCM1015	MT-CVD coated, the substrate with excellent wear resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is optimal for finishing and semi-finishing of stainless steel.	M05~M15
JCM2015	MT-CVD coated, the substrate with special micro structure in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is optimal for finishing and roughing of stainless steel.	M10~M25
JCM3015	MT-CVD coated, the substrate with excellent toughness in combination with TiCN+Al2O3(thin)+TiN multi-layer coating, which is optimal for semi-finishing and roughing of stainless steel.	M20~M35
JCK1025	MT-CVD coated, the super fine grain size substrate with excellent hardness in combination withAl2O3(extra thick) + TiCN(thick) coating, the smooth surface, which is suitable for turning and milling of grey cast iron at high speed	K05~K15
JCK2025	MT-CVD coated, the substrate with excellent hardness and stripping resistance in combination withAl2O3(thick) + TiCN(thick) coating, the smooth surface of the tools, which is suitable for turning and milling of cast iron at middle and high speed.	K10~K30
JCK3025	MT-VD coated, the substrate with excellent wear resistance and toughness in combination withAl2O3(extra thick) + TiCN(thick) coating, which is suitable for the milling of cast iron(for example, nodular iron) at middle and high speed and interrupted turning.	K20~K35
