• Model NO.：CNMG~WNMG
• Standards：P
• Style：Universal Tool
• Cutting Process：Turning Tools
• Work Type：External Work
• Transport Package：Plastic Box
• Specification：ISO
• Trademark：Excelledge
• Origin：Chengdu, China
• HS Code：82080100
• Production Capacity：50, 000 PCS,Month

Basic Info.

Model NO. CNMG~WNMG Standards P Style Universal Tool Cutting Process Turning Tools Work Type External Work Transport Package Plastic Box Specification ISO Trademark Excelledge Origin Chengdu, China HS Code 82080100 Production Capacity 50, 000 PCS/Month

Product Description

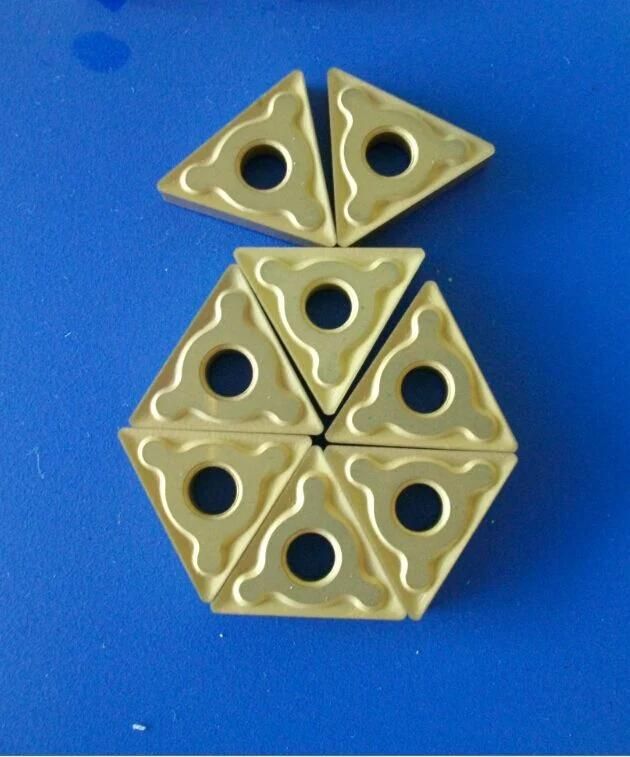

Extensive range of standard and special standard Carbide Indexable Inserts
Diversity of Chipbreakers;
Different grades;
Excellent resistance to mechannical and thermal shock;
Outstanding edge strength, resistance to crater wear, deformation and edge build up;
Advanced MT-CVD multi-layer coating technology for extended tool life.

CVD Coated Grades are as follows:

Grade	Description	Equivalent to ISO
JCP1015	MT-CVD coated, the substrate with excellent wear resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for finishing of steel.	P05~P15
JCP2015	MT-CVD coated, Cutting edge with good toughness in combination with  TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for semi-finishing of steel.	P10~P25
JCP3015	MT-CVD coated, the substrate with excellent toughness and plastic deformation resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is suitable for roughness of steel.	P20~P35
JCM1015	MT-CVD coated, the substrate with excellent wear resistance in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is optimal for finishing and semi-finishing of stainless steel.	M05~M15
JCM2015	MT-CVD coated, the substrate with special micro structure in combination with TiCN+Al2O3(thick)+TiN multi-layer coating, which is optimal for finishing and roughing of stainless steel.	M10~M25
JCM3015	MT-CVD coated, the substrate with excellent toughness in combination with TiCN+Al2O3(thin)+TiN multi-layer coating, which is optimal for semi-finishing and roughing of stainless steel.	M20~M35
JCK1025	MT-CVD coated, the super fine grain size substrate with excellent hardness in combination withAl2O3(extra thick) + TiCN(thick) coating, the smooth surface, which is suitable for turning and milling of grey cast iron at high speed	K05~K15
JCK2025	MT-CVD coated, the substrate with excellent hardness and stripping resistance in combination withAl2O3(thick) + TiCN(thick) coating, the smooth surface of the tools, which is suitable for turning and milling of cast iron at middle and high speed.	K10~K30
JCK3025	MT-VD coated, the substrate with excellent wear resistance and toughness in combination withAl2O3(extra thick) + TiCN(thick) coating, which is suitable for the milling of cast iron(for example, nodular iron) at middle and high speed and interrupted turning.	K20~K35
