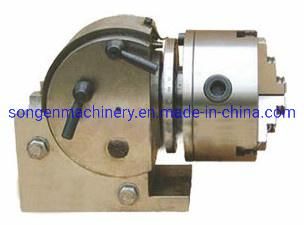

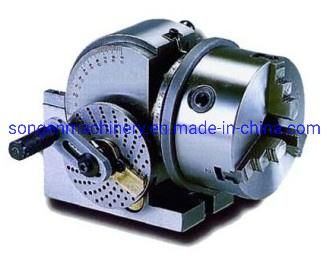

Center Height 132.7mm BS-2 Universal Dividing Head

Songen Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2008, GS
  • Function：Universal
  • Material：Metal
  • Type：Universal Dividing Head
  • Center Height：132.7mm

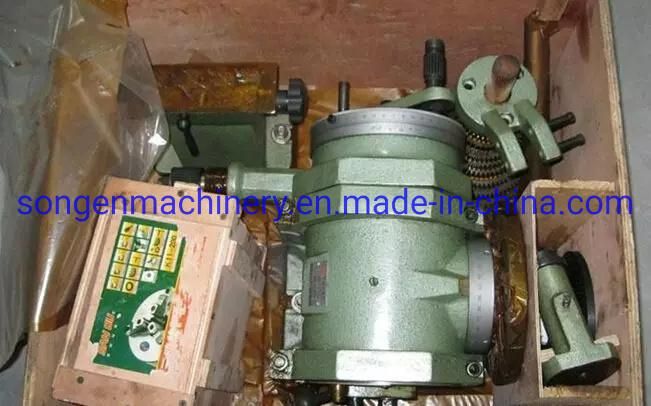

  • Standard Accessories：Dividing Plates and Tailstock

Base Info

  • Model NO.：BS-2
  • Optional Accessories：Adapting Flange, Centers
  • Logo Printing：with Logo Printing
  • Size：Middle
  • Customized：Non-Customized
  • Transport Package：Plywood Case
  • Specification：Center height 132.7mm
  • Trademark：Songen
  • Origin：China
  • HS Code：84663000
  • Production Capacity：1000 Sets,Year

Description

Basic Info.

Model NO. BS-2 Optional Accessories Adapting Flange, Centers Logo Printing with Logo Printing Size Middle Customized Non-Customized Transport Package Plywood Case Specification Center height 132.7mm Trademark Songen Origin China HS Code 84663000 Production Capacity 1000 Sets/Year

Product Description

[1] This universal dividing center can carry out all types of gear cuttings, precision dividings and spirl works;
[2] Tilts from a horizontal position of 90 degrees down to -10 degrees from vertical and inclinations can be read off a scale graduated in degrees;
[3] Ratio of worm to gear is 1: 40;
Standard Accessories
Plate A (15, 16, 17, 18, 19, 20), One PC;
Plate B (21, 23, 27, 29, 31, 33), One PC;
Plate C (37, 39, 41, 43, 47, 49), One PC.
Optional Accessories
6" (or 7") 3-Jaw Self-Centering Chuck, Qty: One PC.
