• Materials：Cemented Carbide,Tungsten Carbide
• Diameter：D3-25mm
• Materials to Be Cut：Steel&Stainless Steel
• Flutes：4
• Machinigng Method：Roughing
• Milling Method：Side Milling
• Wc：90%
• Co：10
• Density：14.4
• Grain Size：0.6-0.8
• T.R.S：3500
• Coating Colour：Black,Copper,Blue Nano
• Length：50mm,60mm,75mm,100mm,120mm,150mm,200mm
• Helix：35 Degree
• Machines：CNC Center, Enraving Machines, High Speed Machine
• Transport Package：Plastic Box Inside, Carton Outside
• Specification：8X60, 10X75
• Origin：Chian
• HS Code：8207709000
• Production Capacity：40000PCS,Month

Basic Info.

Materials Cemented Carbide/Tungsten Carbide Diameter D3-25mm Materials to Be Cut Steel&Stainless Steel Flutes 4 Machinigng Method Roughing Milling Method Side Milling Wc 90% Co 10 Density 14.4 Grain Size 0.6-0.8 T.R.S 3500 Coating Colour Black/Copper/Blue Nano Length 50mm/60mm/75mm/100mm/120mm/150mm/200mm Helix 35 Degree Machines CNC Center, Enraving Machines, High Speed Machine Transport Package Plastic Box Inside, Carton Outside Specification 8X60, 10X75 Origin Chian HS Code 8207709000 Production Capacity 40000PCS/Month

Product Description

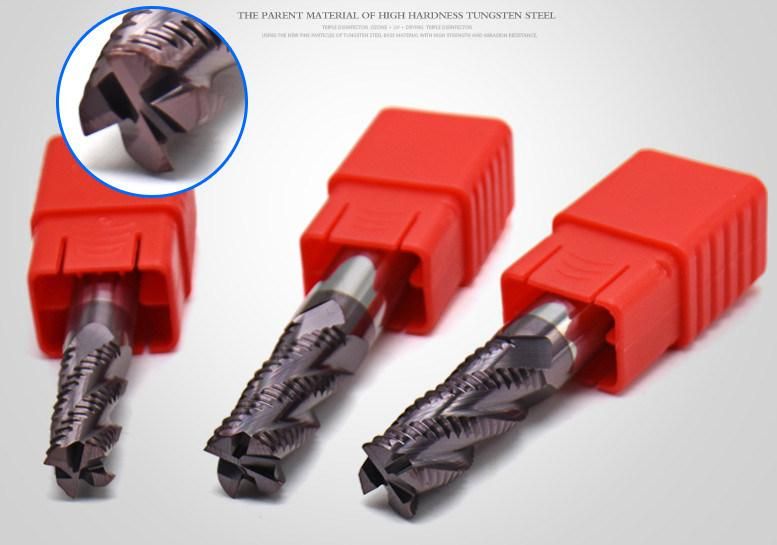

High Performance Tungsten carbide Roughing End mill  in 2 flutes HRC60

Name: carbide end mill for roughing cutting
Helix angle: 35 degree
Flutes: 4 flutes
Machine to be used on: CNC center, Engraving machine, high speed machine ect.,
Features: produced by Walter five-axis grinder, large-diameter design, smooth chip removal, strong tool rigidity, not easy to lack angle. Using fine-grained grinding wheels to reduce the surface grinding wheel marks, more uniform coating surface treatment and longer service life.










Size sheet:

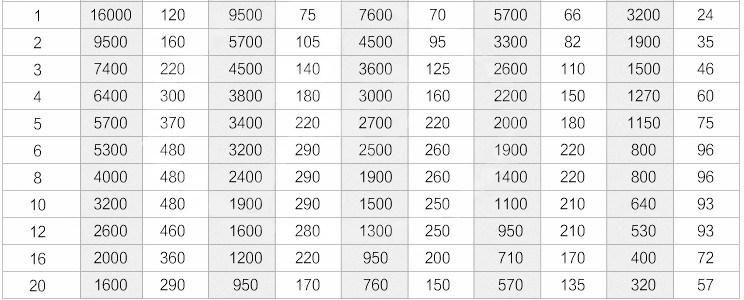

Machining date:


Type of machining:

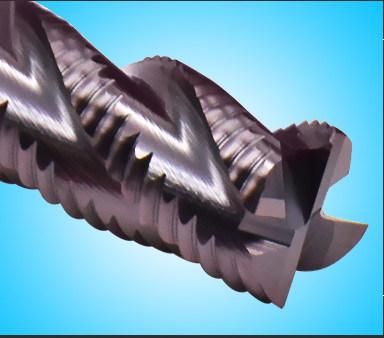

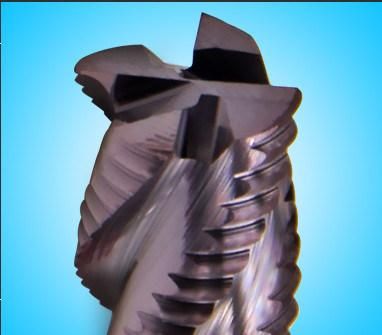

details of the end mills:

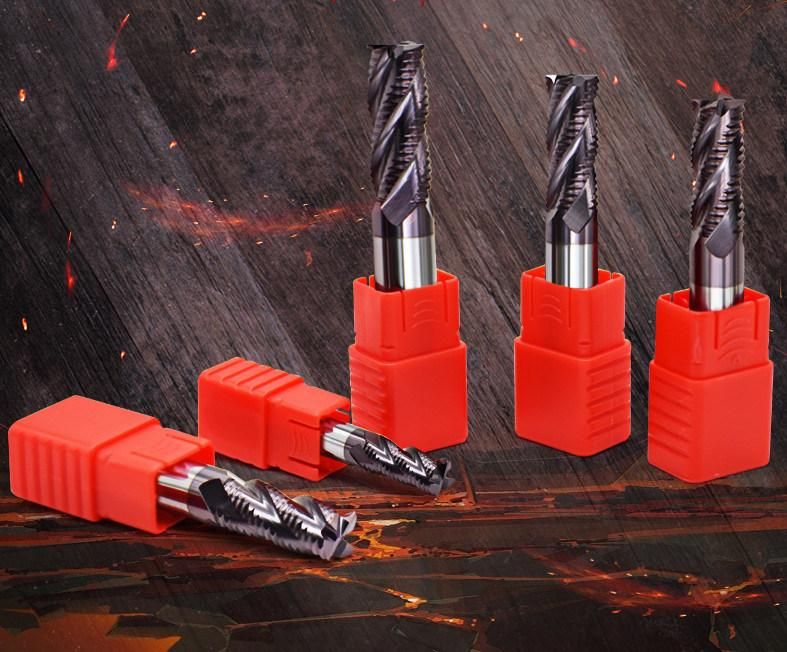

Photos showing:
