• Model NO.：square end mills
• Application：Metal
• Process Usage：Metal-Cutting CNC Machine Tools
• Movement Method：Contour Control
• Control Method：Closed-Loop Control
• Numerical Control：CNC,Mnc
• Performance Classification：High-End CNC Machine Tools
• Certification：ISO 9001
• Condition：New
• Diamter：1-20mm
• Length：50-100mm
• Helix：45 Degree
• Hardness：HRC45
• Grian Size：0.6um
• Samples：Available
• OEM：Accept
• Transport Package：1PC in a Plastic Tube, 10PCS in a Group
• Specification：SGS
• Trademark：HIBOO
• Origin：Changzhou Jiangsu China
• HS Code：8207709000
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. square end mills Application Metal Process Usage Metal-Cutting CNC Machine Tools Movement Method Contour Control Control Method Closed-Loop Control Numerical Control CNC/Mnc Performance Classification High-End CNC Machine Tools Certification ISO 9001 Condition New Diamter 1-20mm Length 50-100mm Helix 45 Degree Hardness HRC45 Grian Size 0.6um Samples Available OEM Accept Transport Package 1PC in a Plastic Tube, 10PCS in a Group Specification SGS Trademark HIBOO Origin Changzhou Jiangsu China HS Code 8207709000 Production Capacity 50000PCS/Month

Product Description

Solid carbide 45 degree end mill milling cutter

1. Super-Fine Micrograin carbide rod:

WC=90%, Co=10%, TRS>3800N/mm2; Hardness>91.8HRA, Grain size: 0.5um; High qulaity of wearability and impact

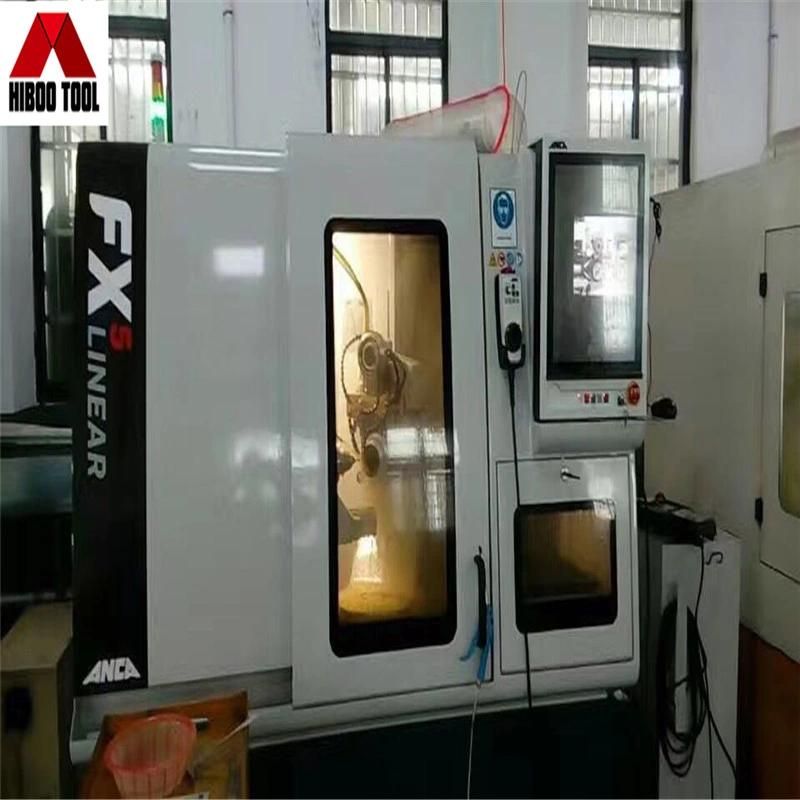

2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.

3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

4. Each end mill is inspected by Zoller measuring and inspected machine.

5. We accept the specification as your requirement.

6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy


Order  no	flute diameter	length of cutting	shank diameter	A. O. L
1.0x3x4Dx50Lx4F	1	3	4	50
1.5x4x4Dx50Lx4F	1.5	4	4	50
2.0x6x4Dx50Lx4F	2	6	4	50
2.5x8x4Dx50Lx4F	2.5	8	4	50
3.0x8x4Dx50Lx4F	3	8	4	50
3.5x10x4Dx50Lx4F	3.5	10	4	50
4.0x11x4Dx50Lx4F	4	11	6	50
4.5x13x6Dx50Lx4F	4.5	13	6	50
5.0x13x6Dx50Lx4F	5	13	6	50
5.5x13x6Dx50Lx4F	5.5	13	6	50
6.0x15x6Dx50Lx4F	6	15	6	50
7.0x16x8Dx60Lx4F	7	16	8	60
8.0x20x8Dx60Lx4F	8	20	8	60
9x20x10Dx75Lx4F	9	20	8	75
10x25x10Dx75Lx4F	10	25	10	75
11x25x12Dx75Lx4F	11	25	12	75
12x30x12Dx75Lx4F	12	30	12	75
14x35x14Dx100Lx4F	14	35	14	100
