• Origin：Zhuzhou
• HS Code：2023512222
• Production Capacity：50000

Basic Info.

Origin Zhuzhou HS Code 2023512222 Production Capacity 50000

Product Description

Features:
--The milling cutter is made of high quality tungsten steel material with stable performance and long service time.
--The use of new ultra-fine particles of tungsten steel material, with high wear resistance and strength, exclusive high-speed cutting.
--This carbide end mill has the characteristic of high toughness, special high-hardness, high-speed cutting, help saving time.

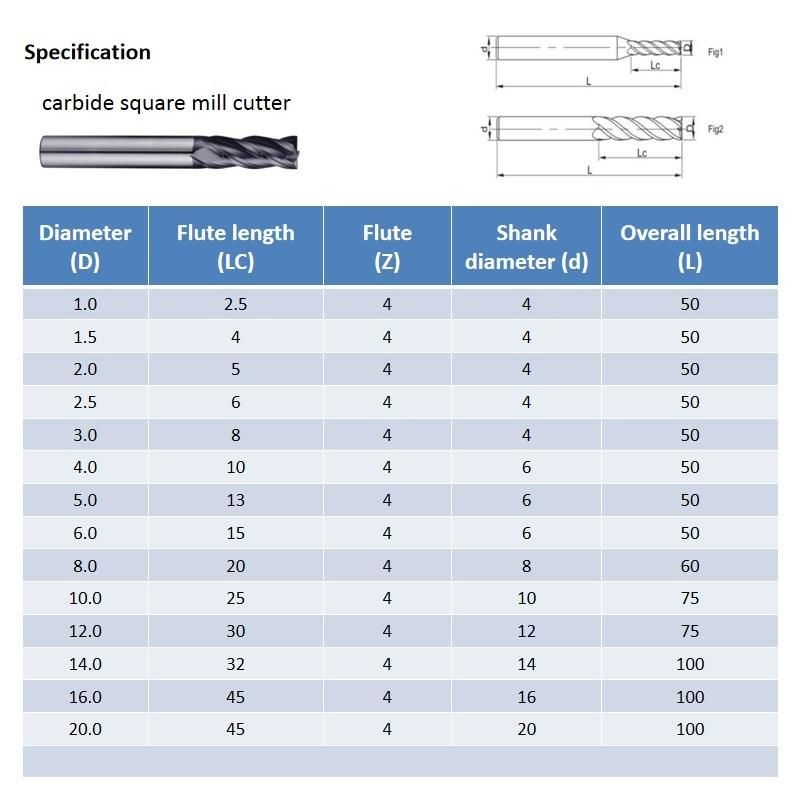

Product Parameter

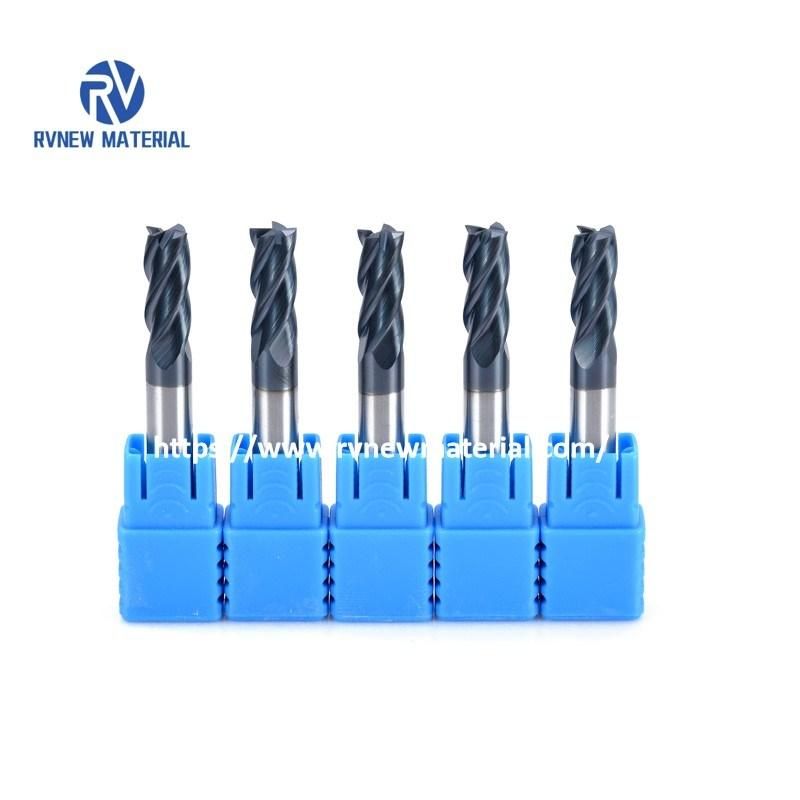

Name	Tungsten carbide end mill
Material	HSS, Carbide ect.
Flutes	2/4/6 flutes
Hardness	HRC45/55/58/65
Helix Angle	35°, 45°
Coating	AlTiN, NACO BLUE, NACO BLACK, TiN etc.
Size	Dia 1-20mm,Overall  length 50-150mm
Smooth Finish	Highly Polished
Feature	Excellent chip evacuation

Super Raw Material

Type	Material	Co	Grain Size	Flexural Strength
HRC45	YG10X	10%	0.7um	3320 N/mm2
HRC55	YG10.2&WF25(Taiwan)	10%	0.6um	4000 N/mm2
HRC60	K40,K44(Germany)	12%	0.5um	4300 N/mm2
HRC65	H10F(Sweden)	10%	0.5um	4300 N/mm2

Super Coating

Type	Hardness (HV)	Thickness (UM)	Oxidation Temp (ºC)	Friction Coeffient	Color
AlTiN	3200	2.5-3	900	0.3	Black
TiAIN	2800	2.5-3	800	0.3	Violet
TiSiN	3600	3	1000	0.45	Copper
NACO	42(GPA)	3	1200	0.4	Blue

Company Profile

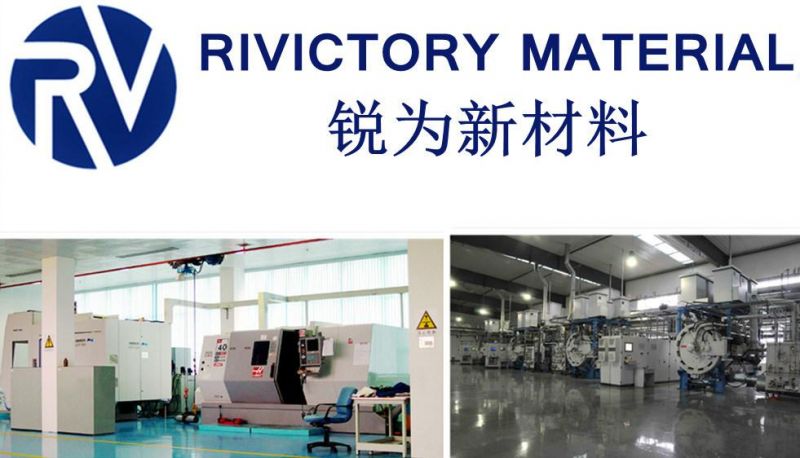

Zhuzhou Rivictory New Material Co., Ltd. is located in Zhuzhou City, Hunan Province, China, the largest tungsten carbide producing area in China. Our main products inclue: tungsten carbide blanks, milling cutters, carbide rods, and epoxy resin insulators,non-standard and so on.  Strictly QC We have a professional QC team follow to the System on ISO9001:2008,Covering the raw materials incoming ,production processes ,finished products and packaging to ensure high quality products output . At the same time, the company has its own research and development team, which can customize products according to customer needs.


Packaging and Shipment

FAQ

1. who are we?
We are based in Hunan, China, start from 2020,sell to Eastern Europe(30.00%),Western Europe(20.00%),North America(20.00%),Southern Europe(5.00%),Domestic Market(5.00%),Northern Europe(5.00%),South Asia(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tungsten Carbide Rod,Carbide End Mill,Epoxy Resin Insulator

4. why should you buy from us not from other suppliers?
Our company is located in Zhuzhou city, the capital of non-ferrous metals and high-speed railway. Has a completely industrial chain,design and research team. Our high quality products and services are welcomed all over the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
