2-Flute HRC50 Bronze Coated Solid Carbide Ball Nose End Mills
Zhuzhou Apple Carbide Tools Co., Ltd.- Coating：Coating
- Tooth Form：Spiral Tooth
- Tooth Space：Sparse Tooth
- Structure：Solid Tungsten Carbide
- Material：Tungsten Carbide
- Type：Flattened
Base Info
- Model NO.：R5.0*20*D10*75
- Product Name：2-Flute HRC50 Bronze Coated Solid Carbide Ball Nos
- HRC：50
- Flute：2 Flutes
- Transport Package：1 Pieces in a Plastic Box, Paper Carton Outside
- Specification：2cm x 2cm x 1cm
- Trademark：CTCB. AP
- Origin：China
- HS Code：8207709000
- Production Capacity：10000
Description
Carbide Grade
Technical Details of tungsten carbide rod
CC108
Co:10% WC 90% Grain Size: 0.8um
CC125
Co:12% WC ~88% Grain Size: 0.5um
CC124
Co:12% WC ~88% Grain Size: 0.4um
GC093
Co:9% WC ~81% Grain Size: 0.3um
Suitable workpiece HRC for 2-Flute HRC50 Bronze Coated Solid Carbide Ball Nose End Mills In Milling Cutter
Carbide Grade
HRC of End mill
Workpiece
CC108
HRC50-55
For cutting the materials under HRC52
CC125
HRC55-58
For cutting the materials under HRC56
CC124
HRC60-62
For cutting the materials under HRC60
GC093
HRC63-65
For cutting the materials under HRC65

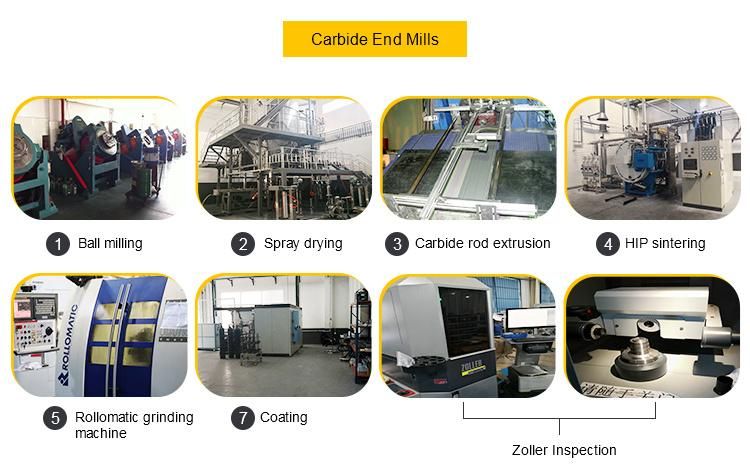

Machining Operation of 2-Flute HRC50 Bronze Coated Solid Carbide Ball Nose End Mills In Milling Cutter

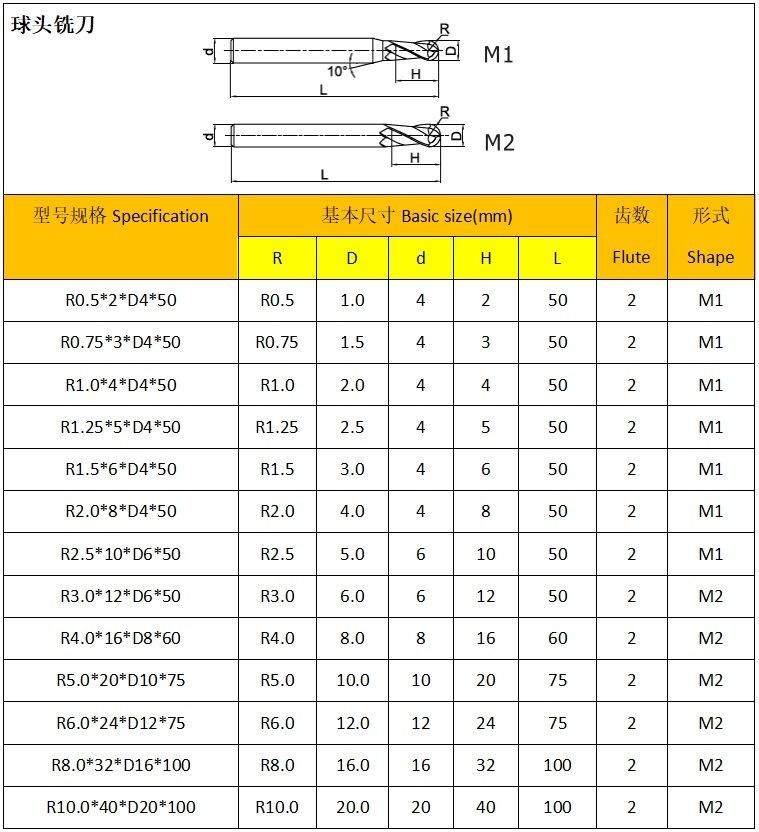

Dimensions of 2-Flute HRC50 Bronze Coated Solid Carbide Ball Nose End Mills In Milling Cutter

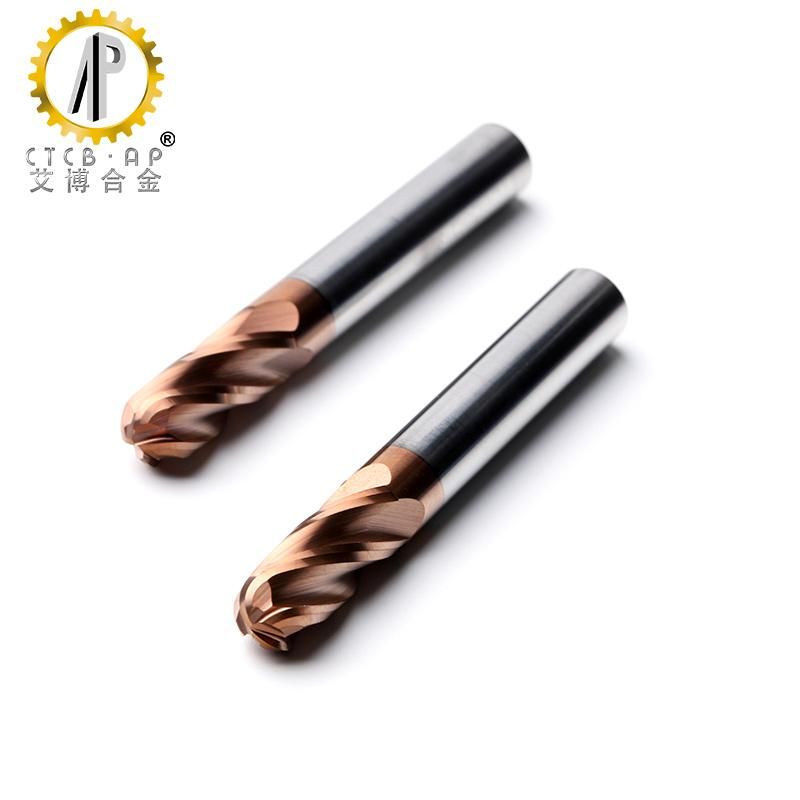

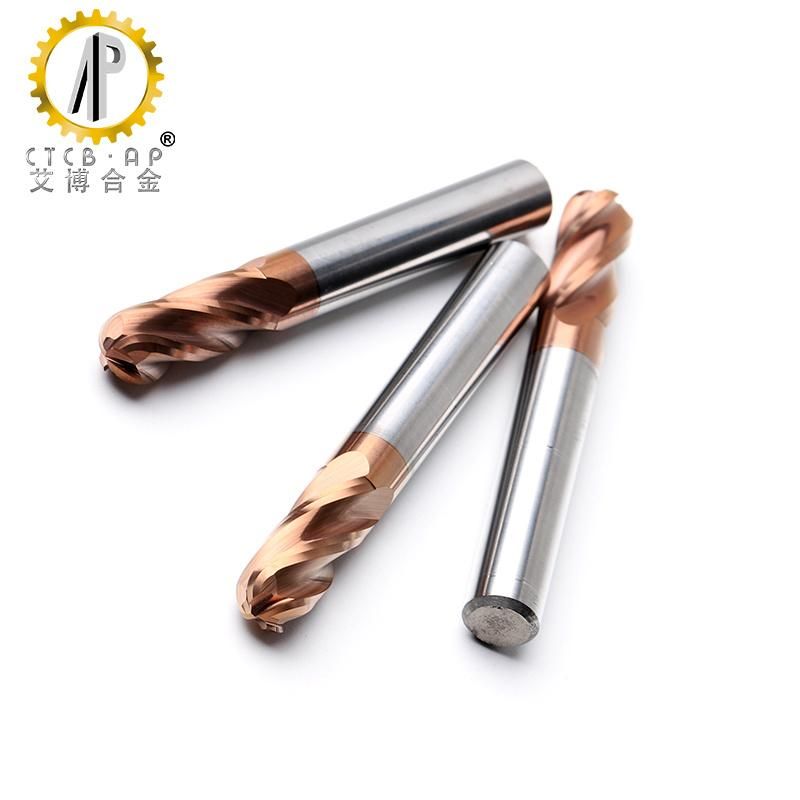

Pictures of 2-Flute HRC50 Bronze Coated Solid Carbide Ball Nose End Mills In Milling Cutter
