• Model NO.：BC05
• Type：Tungsten Carbide
• Diamond：PCB V Scoring Blade
• PCB：V Cut
• Transport Package：Carton
• Specification：Dia 51 to Dia 120
• Trademark：OEM
• Origin：China
• HS Code：82090090
• Production Capacity：50000 Pieces

Basic Info.

Model NO. BC05 Type Tungsten Carbide Diamond PCB V Scoring Blade PCB V Cut Transport Package Carton Specification Dia 51 to Dia 120 Trademark OEM Origin China HS Code 82090090 Production Capacity 50000 Pieces

Product Description

Chinese Solid Tungsten carbide Circular Saw Blades, Circular Saw Blades manufacturer
Tungsten carbide Circular Saw Blades is the most commonly cutting tools. The quality of carbide saw blade and processing are closely related. Reasonable selection of carbide saw blades is important for improving product quality, shortening the processing time, reducing processing costs. Tungsten carbide saw blade contains the type of substrate material, diameter, number of teeth, thickness, profile, angle, aperture and other parameters, which determine the processing capacity and cutting blade. Selecting the blade for cutting materials should take the type, thickness, cutting speed, cutting direction, feed speed, and width of the need into consideration.
V CUT blades including diamond V CUT saw blades and tungsten carbide V CUT,

V CUT blades are used to cut printed circuit board apply to automatic V-CUT machine, belong to high quality blades.

PCB Diamond saw blades has the long working life; generally using a couple of blades. Our company produce PCB diamond blades using high quality steel from Germany, brazing Polycrystalline diamond tips to guarantee the quality.

tungsten carbide V CUT is widely accepted by printed circuit board manufacturer. The Solid tungsten carbide V CUT  are became the common cutter of cutting V-Scoring on printed circuit board.

V CUT blades can cut carton, FR2, FR4, fiber glass, TG, alumina, Iron, and copper etc.

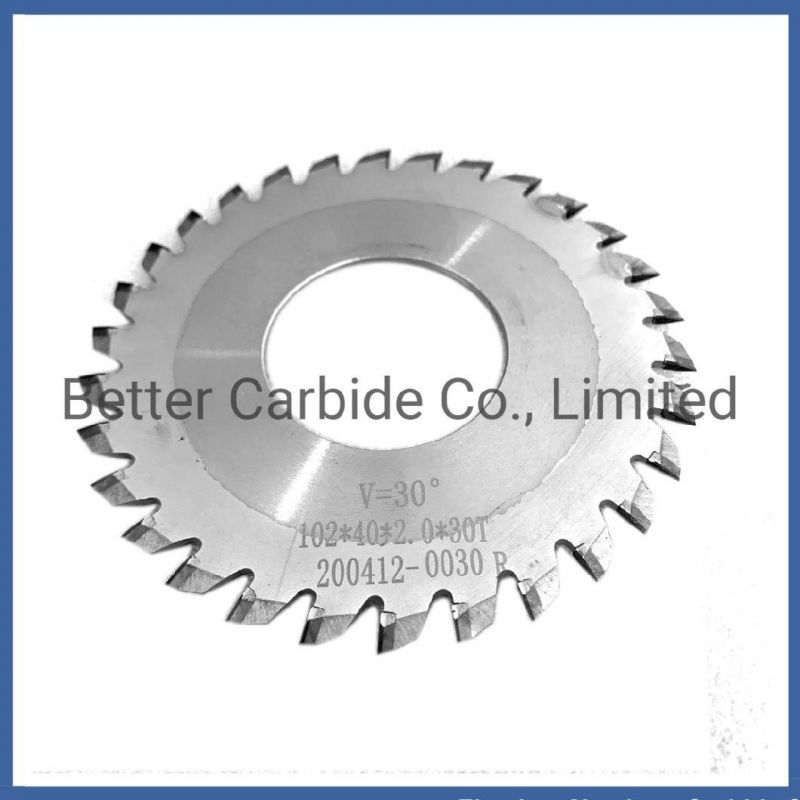

The size of our V-CUT: DIA39.5×DIA17×2.4, DIA51×DIA25×2.4, DIA56×DIA25×2.4, DIA51×DIA25×2.0, DIA50.8×DIA25×2.0, 50×DIA25×2.0, DIA51×DIA30×2.4, DIA61×DIA30×2.0, DIA66×DIA35×2.0, DIA100×DIA40×2.0,DIA120×DIA40×2.0, DIA120×DIA25.4×2.0(With 4 fixing holes)
Our angle of V-CUT: 20°,25°,30°,35°,40°,45°,50°,55°,60°
Our teeth of V-CUT: 20, 24, 32, 40, 48, 52, 100, 120
