• Model NO.：DY-TCT
• Application：for Cutting Wood ,Chipboard , Laminat Board
• Diameter Size：110-300mm
• Hole Size：16,19,20,25.4,30mm
• Steel Material：65mn , 75cr1
• Surface Finish：Silk Printing
• Transport Package：Carton Box
• Specification：130-300mm
• Origin：Mainland China
• HS Code：8202310000
• Production Capacity：100000,Month

• Universal rip saw blades for longitudinal cutting of all types of wood, dry and wet, with a standard quality of the cutting edge and a lower height of the cut
• Usage: for multi-rip machines for primary processing of wood and pallet production

Instructions How To Use Saw Blades Correctly
We recommend to follow the below rules in order to reach the best cutting results:

• Machine must be in good condition without vibrations

• Flanges used to tighten the saw blades must be of the same diameter (about1/3 of the blade size)

• Flanges must be clean and it is important to check their side run out

• Check the spindle of machine. It must be absolutely straight

• Tips must always be sharpened with the original angles

• See the most appropriate way

• If rebored by over 20mm, the blade loses its original attributes and its stability

• It is needed to grind the top of chip limiters together with tip grinding and keep the oversize

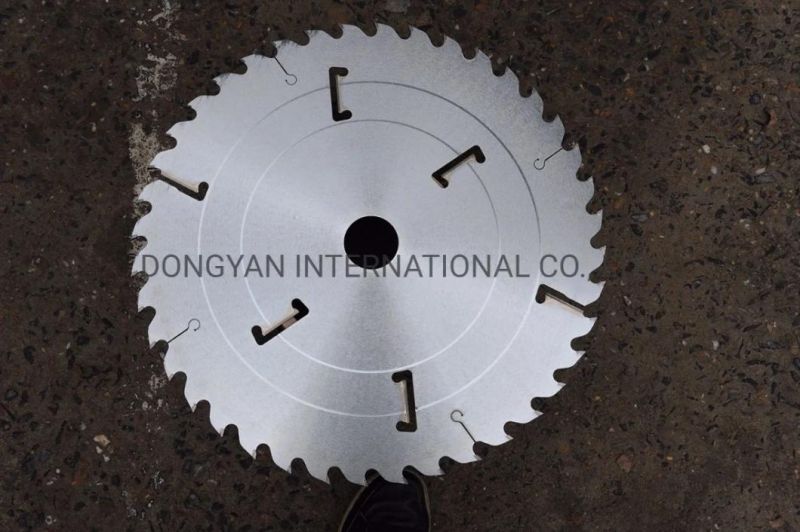

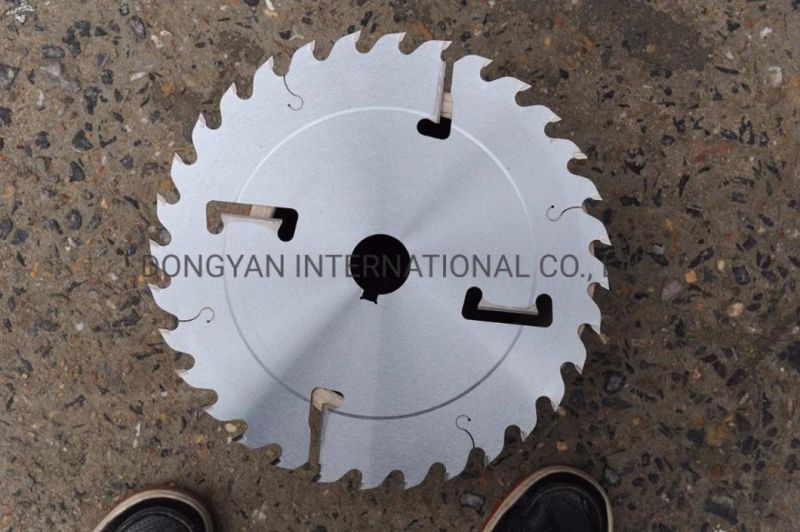

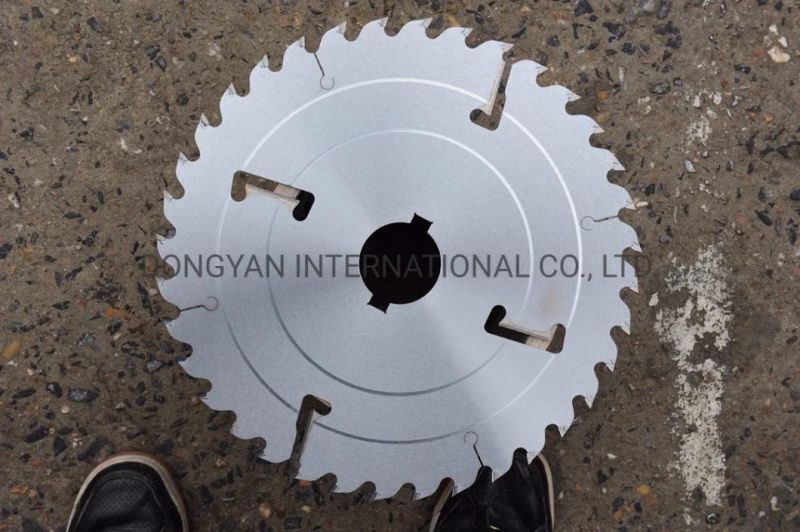

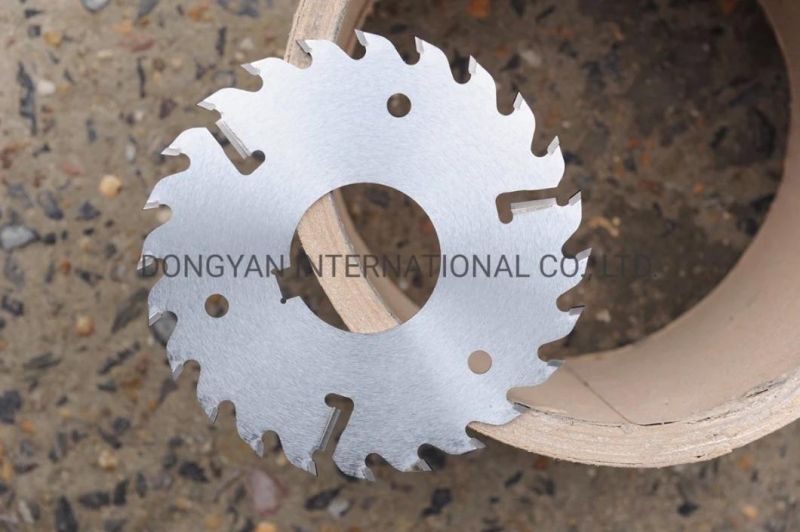

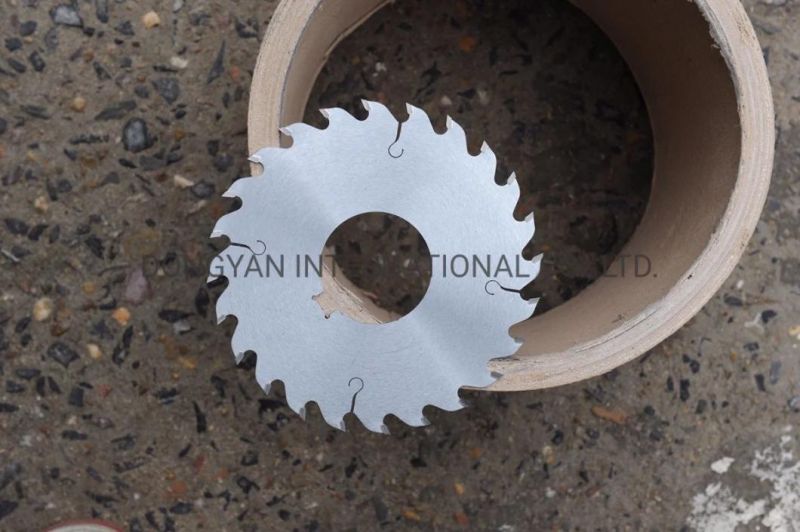

Pictures :
