Yg8 Od250mm Tungsten Carbide Abrasive Sharpening Milling Cutter

Zhuzhou Up Cemented Carbide Co., Ltd.
  • Certification：ISO9001:2008
  • Tooth Form：Flat Tooth
  • Diameter：250mm
  • Function：Incision
  • Shape：Hole Saw Blade
  • Coating：Uncoated

Base Info

  • Model NO.：OD250*ID70*T3.5MM
  • Type：Carbide Saw Blade
  • Outer Diameter：250mm
  • Inner Diameter：70mm
  • Thickness：3.5mm
  • Grade：Ys2t
  • Grain Sizes：Fine Grain Size
  • Density：14.6g,cm3
  • Hardness：91.8hra
  • T.R.S：3200MPa
  • Co：10%
  • Wc：90%
  • Transport Package：25kg. Carton
  • Specification：OD250*ID70*T3.5MM
  • Trademark：ZZUP
  • Origin：Zhuzhou, Hunan, China
  • HS Code：820900100
  • Production Capacity：100000PCS,Month

Description

GradeDensity  g/cm3T.R.S  Mpa  Hardness   HRAPerformance & application recommendedISO codeYG6X14.9185092Fine grain alloy, good wear resistance. Semifinishing of chilled cast iron, non-ferrors metals alloys, semi-finishing and finishing of hardened steel, alloy steel.K10YG614.9245090.5High wear resistance, bending strength, suitable for electronic industry with the disc cutting knife.K10YG814.8245090.5High strength ,impact and shock resistance higher than YG6X,,but wear resistance and cutting speed comparatively lower.Roughing of cast irons,non-ferrors metals and their alloys as well as non metallic materials at low cutting speedK20YG10X14.7232089.5High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrors metals and their alloys as well asK40YS2T14.5220091Fine grain alloy, good wear resistance. Used for processing hard wood,veneer board,PCB,PVC and metals.M10

Sizes choosing:
TYPEOD(mm)ID   (mm)S   (mm) TYPEOD(mm)ID   (mm)S   (mm)
Φ12×Φ6×S1260.6-4.5 Φ60×Φ19×S60190.8-7.0
Φ13×Φ6×S1360.6-4.5 Φ63×Φ17×S63170.8-7.0
Φ16×Φ6×S1660.6-4.5 Φ70×Φ22×S70220.8-7.0
Φ22×Φ10×S22100.6-4.5 Φ75×Φ22×S75220.8-7.0
Φ25×Φ12×S25120.6-5.5 Φ80×Φ22×S80220.8-7.0
Φ32×Φ10×S32100.8-5.5 Φ83×Φ21×S83210.8-7.0
Φ40×Φ10×S40100.8-6.0 Φ86.5×Φ21.5×S86.521.51.0-7.0
Φ45×Φ13×S45130.8-6.0 Φ90×Φ22×S90221.0-7.0
Φ53×Φ13×S53130.8-6.0 Φ100×Φ22×S100221.0-7.0
Φ52×Φ24.5×S5224.50.8-6.0 Φ125×Φ22×S125221.0-7.0
Φ53×Φ24.5×S5324.50.8-6.0 Φ200×Φ70×S200703.0-4.5
Φ55×Φ16×S55160.8-6.0 Φ250×Φ70×S250703.0-4.5
Φ58×Φ22×S58220.8-6.0

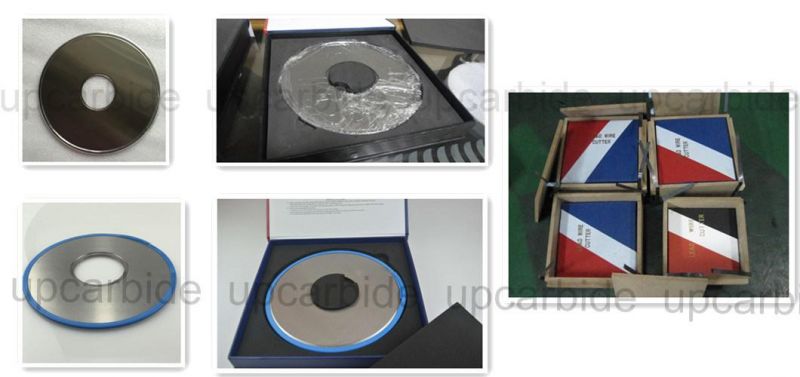

Packing details
Yg8 Od250mm Tungsten Carbide Abrasive Sharpening Milling Cutter





Shipping ways

Yg8 Od250mm Tungsten Carbide Abrasive Sharpening Milling Cutter

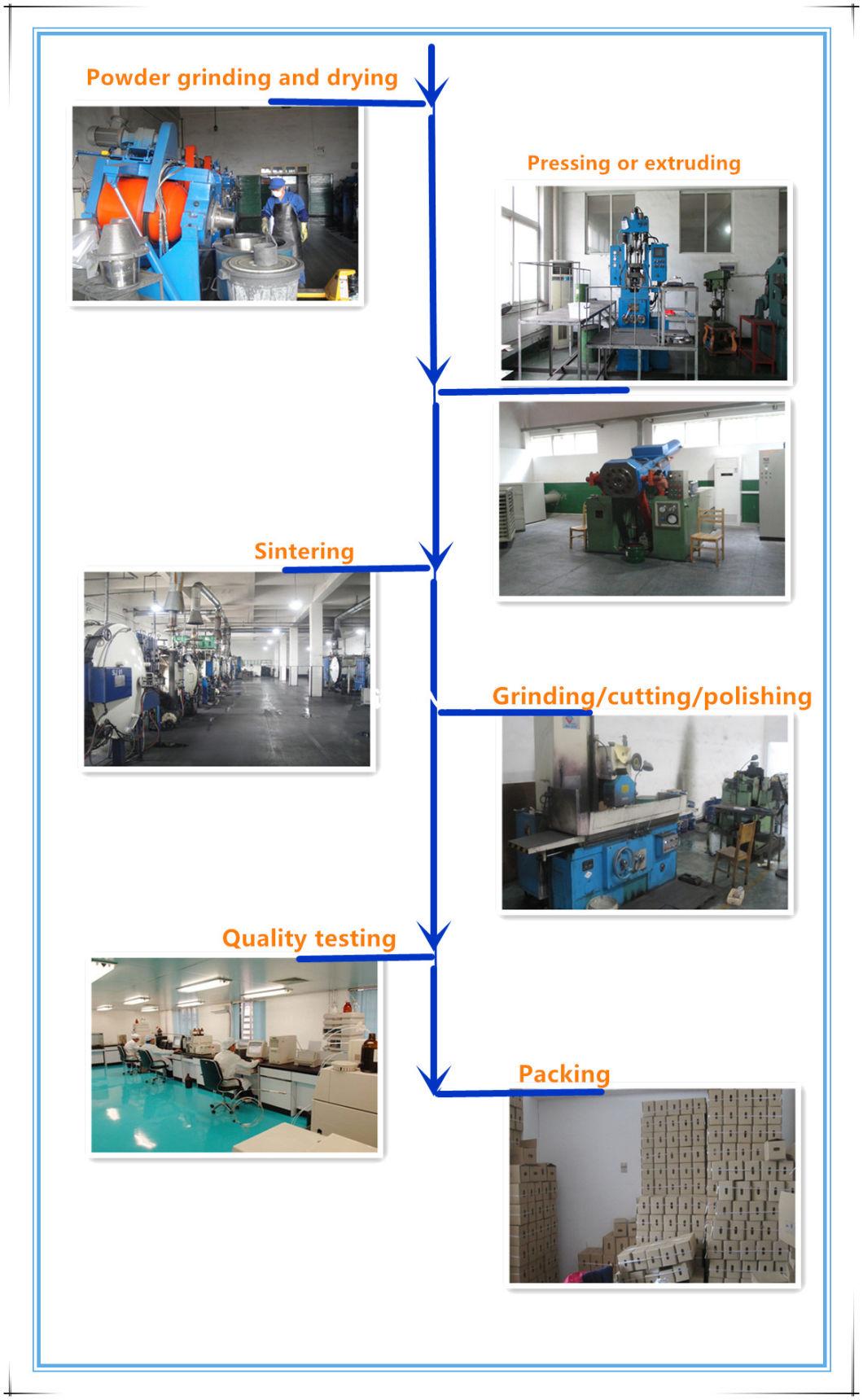

Production process

Yg8 Od250mm Tungsten Carbide Abrasive Sharpening Milling Cutter
