Mini Series rotary table HV-3" HV-4" HV-5"

Tengzhou Hoton Machinery Co., Ltd.
  • Certification:CE, ISO 9001:2008
  • Structure:Horizontal
  • Material:Cast Iron
  • Type:Rotary table
  • Logo Printing:Without Logo Printing
  • Size:Small

Base Info

  • Model NO.:HV-3" HV-4" HV-5"
  • Customized:Customized
  • Transport Package:Plywood Case
  • Specification:CE SGS ISO9001
  • Trademark:HOTON
  • Origin:Shandong China
  • HS Code:84669390
  • Production Capacity:20 PCS,Month


Basic Info.

Model NO. HV-3" HV-4" HV-5" Customized Customized Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin Shandong China HS Code 84669390 Production Capacity 20 PCS/Month

Product Description

Mini Series rotary table HV-3" HV-4" HV-5"
Mini Series rotary table HV-3" HV-4" HV-5"MINI SERIES ROTARY TABLE FEATURES:

Mini H/V rotary is one of main accessories of DIY and home use milling machines it is used for index
boring, milling, circle cutting, spot facing and boring hole etc on milling machine. Rotary table in vertical
 with tailstock working together, it can used on complex work for circle index boring and milling.

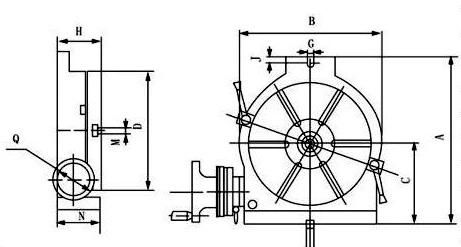

Table diameter  mmΦ76.2Φ110Φ127
Morse taper of the center holeMT2MT2MT2
Height of center for Verti.mounting   mm5981.590
Width of the T-slot  mm81212
Adjacent angle of table T-slot90°120°120°
Width of the locating key  mm121212
Module of the worm gear111
Transmission ratio of the worm gear1:361:721:72
Graduation of the table360°360°360°
Rotating angle of the table with one revolution of the worm10°
Max.bearing(with table Hor.)kg100150200
Max.bearing(with table Vert.)kg5075100

Mini Series rotary table HV-3" HV-4" HV-5"
J  15
Mini Series rotary table HV-3" HV-4" HV-5"Mini Series rotary table HV-3" HV-4" HV-5"
