• Model NO.：T30
• Saw Blade External Diameter：60mm
• Transport Package：Carton Box for Each Piece or Customers Requirement
• Specification：ISO9001-2000; SGS
• Trademark：Router Bit
• Origin：China
• HS Code：6804210000
• Production Capacity：5000 PCS,Month

Basic Info.

Model NO. T30 Saw Blade External Diameter 60mm Transport Package Carton Box for Each Piece or Customers Requirement Specification ISO9001-2000; SGS Trademark Router Bit Origin China HS Code 6804210000 Production Capacity 5000 PCS/Month

Product Description

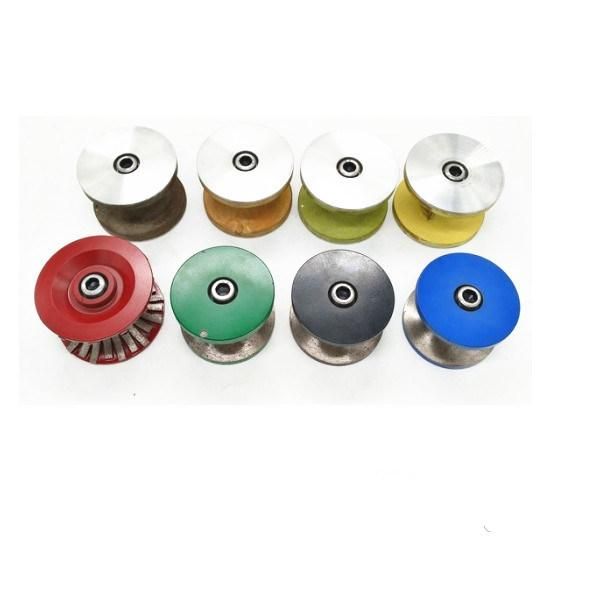

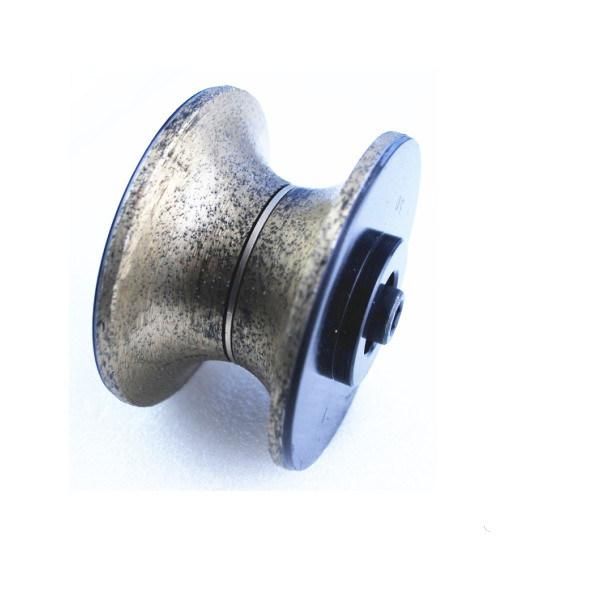

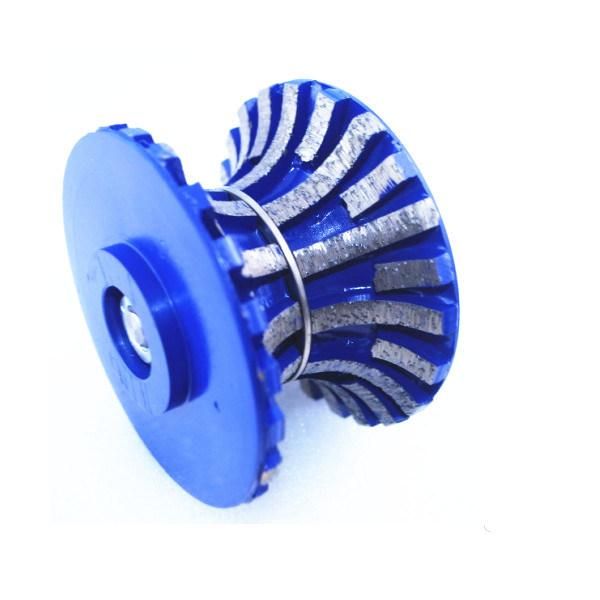

CNC Profiling wheels are equipped on CNC stone processing machine, the excellent leader in irregular shape stone processing tools. Thanks to it precised profiling, high efficiency, it is widely used in the edge processing of vanity top and counter-top, etc.
We have developed the outstanding sets of profiling wheel for the CNC machine to profile granite, marble and engineered stone.








Available for working on 22mm&35mm CNC machine.

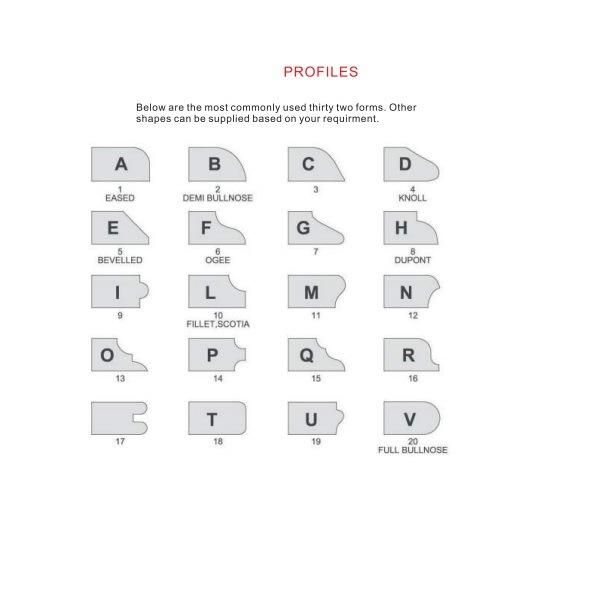

Different profiles, different shapes like A, B, E, F, H, T, V etc are available.

Position	Type of Working Layer	Grit	Working Procedure	RPM g/min	Feed Speed (mm/min)	Removal mm
Pos.0	Meter sintered,Segmented	30/40	Chamforing	4500	500-600	shape
Pos.1	Meter sintered,Segmented	30/40	Shaping	4500	500-600	shape
Pos.2	ABR hot pressed,Continous	70/80	Coarse finishing	4500-4600	1000-1400	0.3+/-0.05
Pos.3	ABR hot pressed,Continous	140/170	Medium finishing	4500-4600	1000-1400	0.2+/-0.05
Pos.4	ABR hot pressed,Continous	230/270	Finishing	1200-1500	600-800	0.1+/-0.05
Pos.5	ABR hot pressed,Continous	400	Good finishing	1200-1500	600-800	0.05+/-0.025
Pos.6	ABR hot pressed,Continous	800	Polishing	1200-1500	600-800	0.05+/-0.025
Pos.7	ABR hot pressed,Continous	1500	Polishing and buff	1200-1500	600-800	0.05+/-0.025
Pos.8	ABR hot pressed,Continous	3000	Polishing and buff	1200-1500	600-800	0.05+/-0.025
