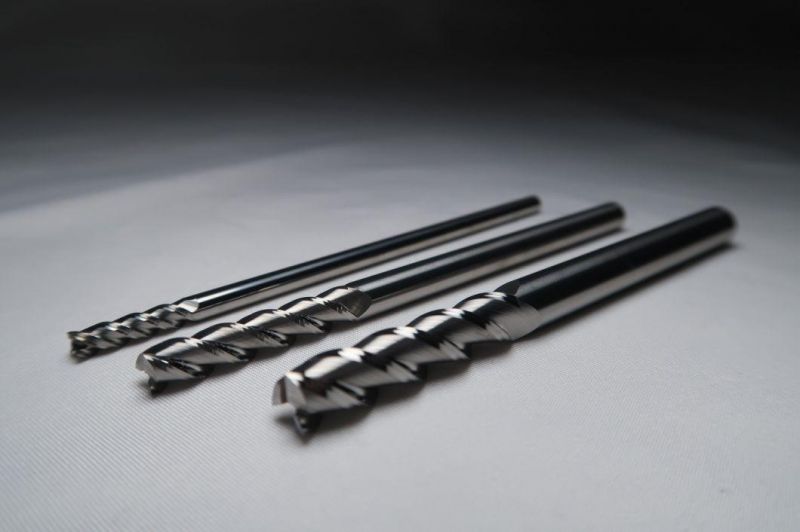

Solid Carbide Long Length Endmill
Changzhou Lihao Tools Co., Ltd.- Coating：Uncoated
- Tooth Form：Spiral Tooth
- Tooth Space：Extra Dense Tooth
- Structure：Indexable Type
- Material：Tungsten Steel
- Type：Face Milling Cutter
Base Info
- Model NO.：Long length Endmill
- Free Service：OEM
- Certification：SGS
- Transport Package：1PC in a Plastic Tube, 10PCS a Group
- Trademark：LeeHoo
- Origin：China
- HS Code：820770000
- Production Capacity：100000
Description
Basic Info.
Model NO. Long length Endmill Free Service OEM Certification SGS Transport Package 1PC in a Plastic Tube, 10PCS a Group Trademark LeeHoo Origin China HS Code 820770000 Production Capacity 100000Product Description
Description:1. Chemical Composition: 10%-12%Co-WC,100% raw material.
2. Physical and Machinal properties: Density: 14.40-14.65g/cm3 Hardness: HRA91.8-92.5 TRS> 3600N/mm2, Helix angle 30°-45 °.
3, Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
4, Organizational Structure: WC mean grain size: 0.4-0.6um
5. Corresponds to International Standards: K20-K30, K20-K40
6, Suitable for: Machining of cast iron, nonferrous alloy, nonferrous metals, fireproof alloy, Titanium alloy, alloy steel, carbon steel and other non-metallic. It has suitable for finishing processing the grooves and side. Meanwhile, it can be processing in high speed and high efficiency which the material HRC>60
| Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
