• Model NO.：All sizes
• Type：Carbide Saw Blade
• Materials：Tungsten Carbide
• Co：8%
• Wc：90%
• Grain Size：Ultra Fine
• Thickness：From 0.3mm
• Model Number：Tungsten
• Application：Cast Iron; Steel; Slitting Saw
• Technology：Hip Sintered
• Tolerance：Finish Grind, Mirror Polish
• Surface：Polished
• Performance：Compressive Resistance
• Standard：ISO
• Packing：Plastic Package Inside,

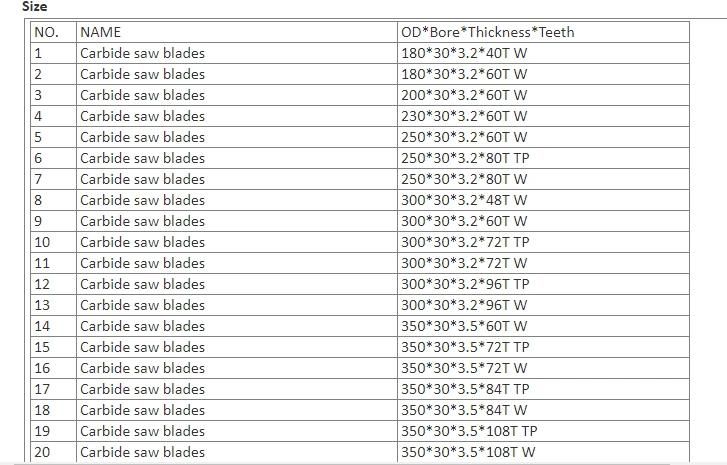

• Sizes：30X3.0X10X48t, 63X2.0X16X80t, 63X3.0X16X80t
• Grade：Yl10.2, Yg15, Yg15X, Ys2t, Yg6X
• Transport Package：Plastic Box Inside and Carton
• Specification：from 30mm to 300mm
• Trademark：GW
• Origin：China
• HS Code：8466910000
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. All sizes Type Carbide Saw Blade Materials Tungsten Carbide Co 8% Wc 90% Grain Size Ultra Fine Thickness From 0.3mm Model Number Tungsten Application Cast Iron; Steel; Slitting Saw Technology Hip Sintered Tolerance Finish Grind, Mirror Polish Surface Polished Performance Compressive Resistance Standard ISO Packing Plastic Package Inside, Sizes 30X3.0X10X48t, 63X2.0X16X80t, 63X3.0X16X80t Grade Yl10.2, Yg15, Yg15X, Ys2t, Yg6X Transport Package Plastic Box Inside and Carton Specification from 30mm to 300mm Trademark GW Origin China HS Code 8466910000 Production Capacity 30000PCS/Month

Product Description

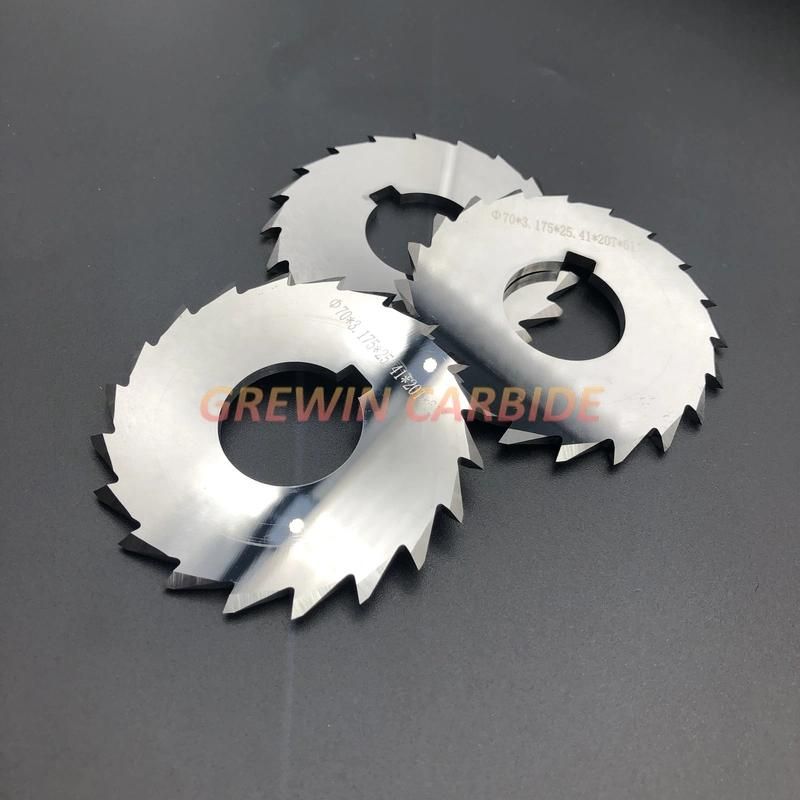

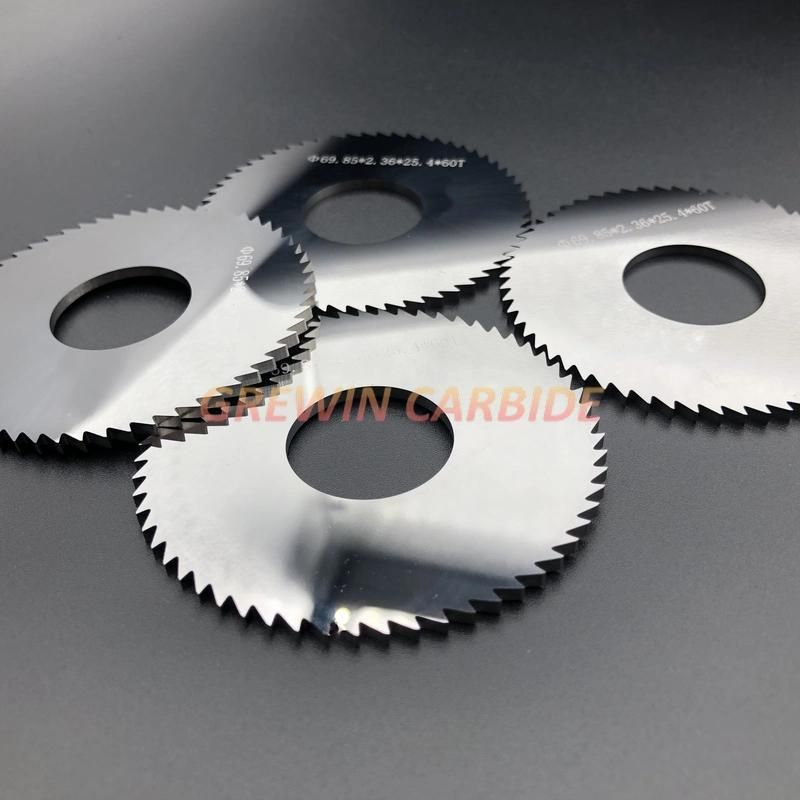

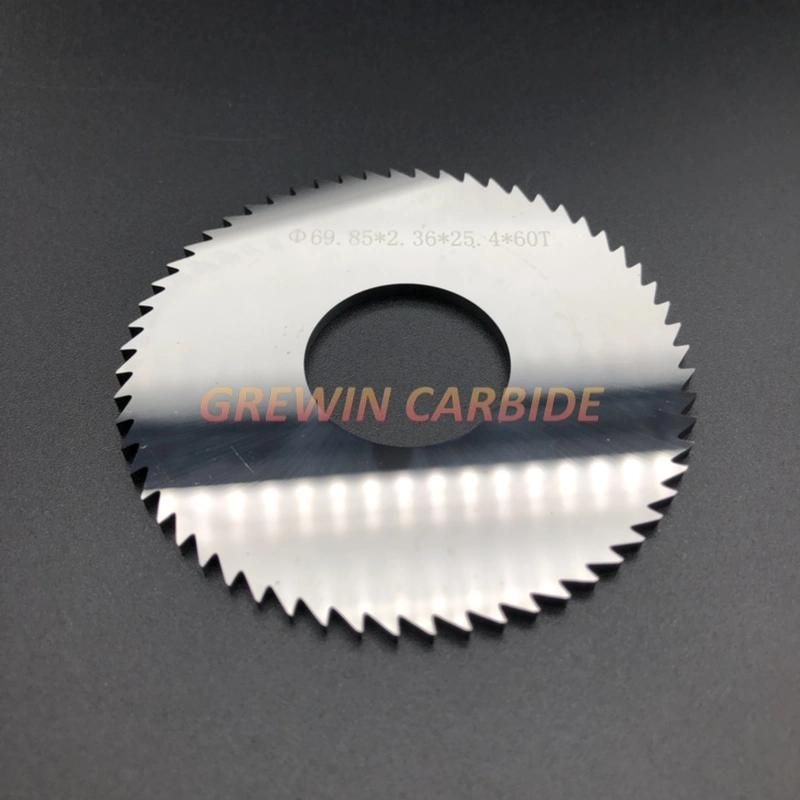

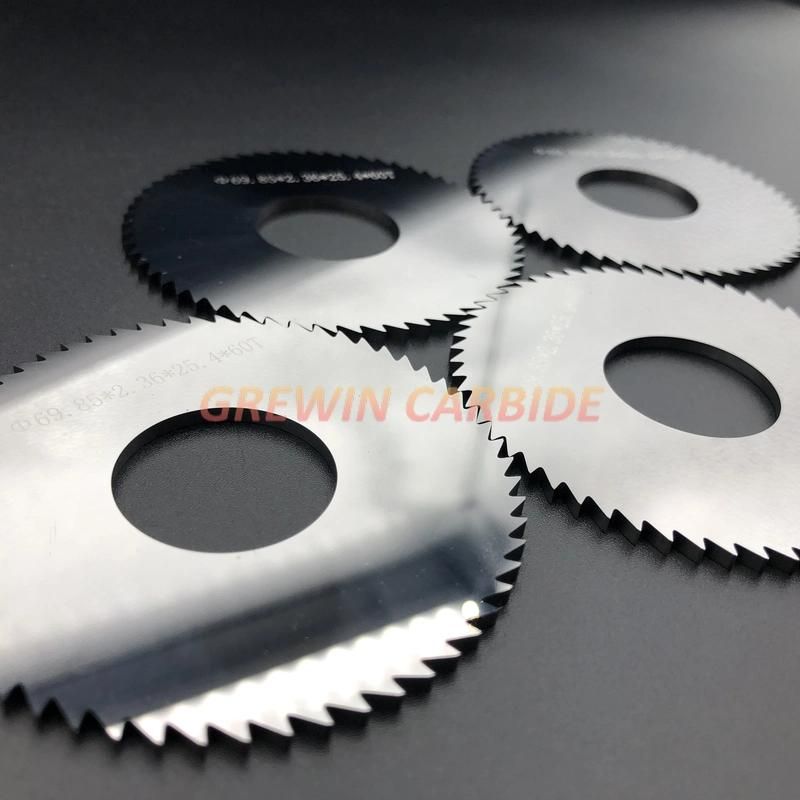

Tungsten Carbide Saw Blade / Tungsten Carbide Saw Blade for Disc / / Circular Saw/ Saw Blade /

Production introduction
STEEL BODY: We use high quality steel plate to ensure good performance and to reduce the huge amount of friction. Laser cut steel plate to remain flat and accurate for years of continuous use.

TIPS: Micro grain tungsten carbide tips are used to achieve the correct cutting quality and long life characteristic.

BRAZING: Auto tip seat grinding and Auto brazing machines are set up to get right temperature are teeth placement. The good silver welding material requires brazing at lower temperature to avoid dangerous results when being used.

SHARPENING: We carefully research the individual bevel tooth design and tooth combination for each blade according to their use. Auto sharpening phase each angle and make precise to ensure smooth cutting face and effort-saving

4 Kinds of TCT Circular Saw Blade as follow:
1st        T.C.T. SAW BLADE FOR WOOD
2nd       T.C.T. SAW BLADE FOR ALUMINUM
3rd        T.C.T. SAW BLADE FOR LAMINATED PANEL
4th        T.C.T. SAW BLADE FOR METAL

Saw Caution:
1.Please put alloy saw vertically hang the drying rack, be sure to avoid the damp places, do not place alloy saw on the ground or on a shelf, keeping flat will lead alloy blade deformation.

2. Use time, do not exceed the maximum speed. Speed method of calculation is attached for information.

3. Use time, must take protective mask, gloves, helmets, working protection shoes, protective glasses.

4. During the installation Alloy saw, must firstly confirm the function, use of saw table, first read the statement of saw table. Avoid mistakes Install so as to caused the accident.

5. During the installation Alloy saw, must first check whether there is a split distortions, and fill-ping, swaps and other phenomena teeth on alloy saw, and then install it.

6. Super-hard and sharp of saw tooth alloy saw, prohibit the collision, falling ground, with taking carefully.

7.After install alloy saw blade, the saw core hole must be confirmed whether firmly fixed in the flange of saw table saw, a gasket must be good washer, and then gently hand to push saw blade, confirmed the rotation Whether the eccentric shaking.

8. The cutting direction of Alloy saw arrow must be aimed at rotation direction of saw table. Strictly no installation the opposite direction, the mistake direction will lead out tooth.

9. Pre-turn: the replacement of alloy saw, pre-turn for one minute before the use, in order to let the saw table into the work status.

10. Before cutting, must confirm whether the use of alloy saw blade is in keeping with the cutting material.

11. Cutting material, it must normal operation of the saw blade intercept material, prohibited pushing hard.

12. Prohibit the reverse turn, reverse leads to drop saw teeth, be dangerous.

13.During using, hear unusual voices and see the abnormal shaking, the section is not flat, immediately stop operations and look for unusual reasons. And replace saw .

14.At Cutting, the prohibition of the saw blade to stop suddenly in the middle of cutting. Stop in the middle of cutting, will lead the saw tooth shedding, saw deformation.

15. Pls promptly apply proof-rust oil after cutting. Prevent from saw rust.

16. When the saw tooth is not sharp, pls grind saw tooth again, must go to the manufacturers specify or professional grinding shop. Otherwise it will destroy the original saw tooth angle, impact accuracy cutting and shorten the life of saw blade use.

Advantage:
1 High quality, supper sharp + smooth cutting + long working life
2 100% raw material, HIP-Sintered
3 CNC grinding for teeth, with high precision
4 Various grades for different kinds of cutting material
5 Strict quality control, complete test equipments
6 Competitive price
7 Good after sale service
