• Model NO.：metric and inch
• Size：5mm to 63mm
• Style：Universal Tool
• Cutting Process：Milling Cutter
• Work Type：Cut off
• Transport Package：Plastic Box
• Specification：6mm to 63mm
• Trademark：stc
• Origin：Zhenjiang
• HS Code：82077090
• Production Capacity：5000PCS,Size

Basic Info.

Model NO. metric and inch Size 5mm to 63mm Style Universal Tool Cutting Process Milling Cutter Work Type Cut off Transport Package Plastic Box Specification 6mm to 63mm Trademark stc Origin Zhenjiang HS Code 82077090 Production Capacity 5000PCS/Size

Product Description

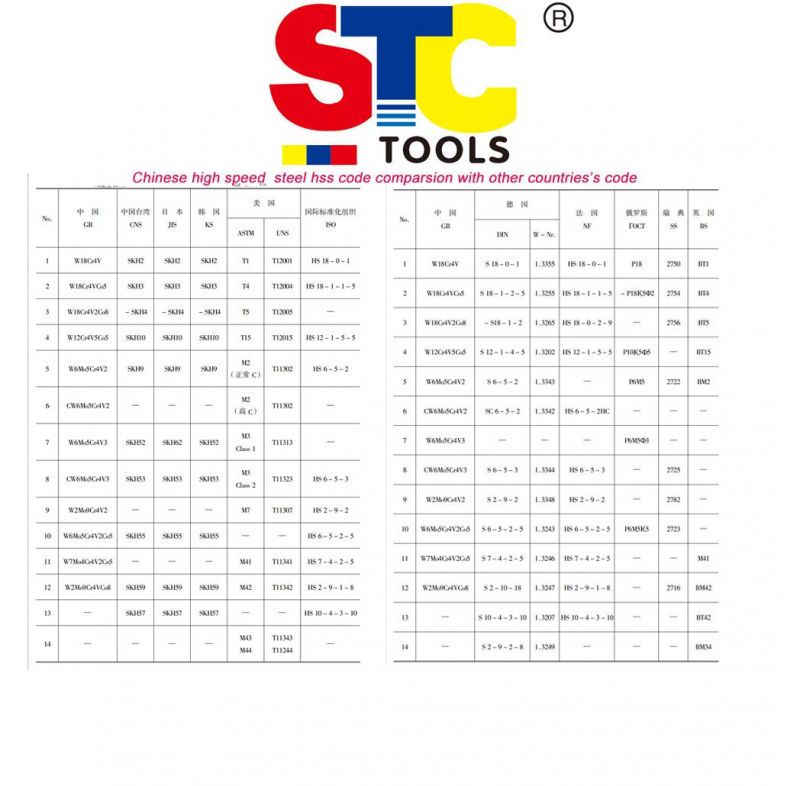

We make roughening end mills from high quality of high speed steel M2Al. (HSSE).

Weldon shank and cylindral shank both available.

Taper shank available.

Regular length and long length available.

Center cutting and non-centering cutting both available.

Tin Tialn coating both available on request.

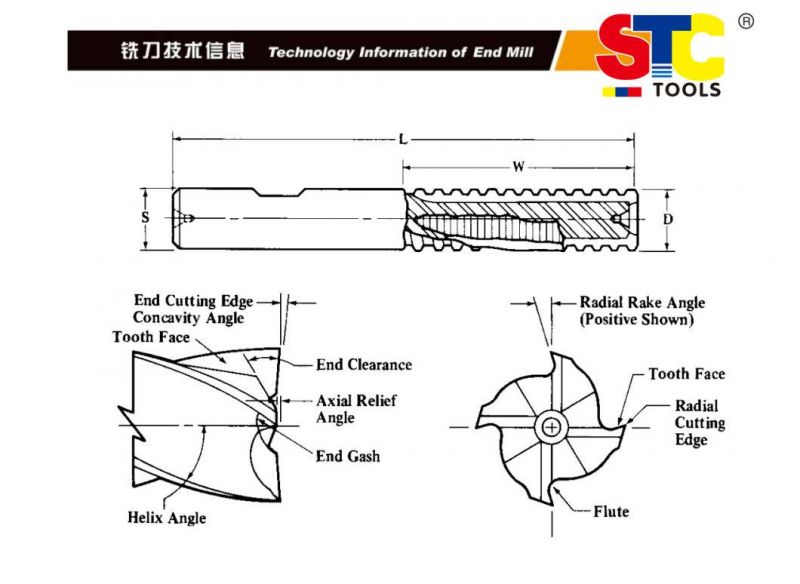

d	d1	L2	L1	Z
6.0	6.0	13	57	4
7.0	10	16	66	4
8.0	10	19	69	4
9.0	10	19	69	4
10	10	22	72	4
11	12	22	79	4
12	12	26	83	4
14	12	26	83	4
16	16	32	92	4
18	16	32	92	4
20	20	38	104	4
22	20	38	104	4
25	25	45	121	4
28	25	45	121	6
30	25	45	121	6
32	32	53	133	6
36	32	53	133	6
40	40	63	155	6
45	40	63	155	6
50	50	75	177	6
56	50	75	177	8
63	63	90	202	8

Roughing end mills, Metric size long length

d	d1	L2	L1	Z
6.0	6.0	24	68	4
7.0	10	30	80	4
8.0	10	38	88	4
9.0	10	38	88	4
10	10	45	95	4
11	12	45	102	4
12	12	53	110	4
14	12	53	110	4
16	16	63	123	4
18	16	63	123	4
20	20	75	141	4
22	20	75	141	4
25	25	90	166	4
28	25	90	166	6
30	25	90	166	6
32	32	106	186	6
36	32	106	186	6
40	40	125	217	6
45	40	125	217	6
50	50	150	252	6
56	50	150	252	8
63	63	180	292	8

















Roughing end mills
Inch size standard length


d	d1	L2	L1	Z
1/4	3/8	5/8	2-7/16	4
5/16	3/8	3/4	2-1/2	4
3/8	3/8	3/4	2-1/2	4
1/2	1/2	1-1/4	3-1/4	4
5/8	5/8	1-5/8	3-3/4	4
3/4	5/8	1-5/8	3-3/4	4
3/4	3/4	1-5/8	3-7/8	4
7/8	3/4	1-7/8	4-1/8	4
7/8	7/8	1-7/8	4-1/8	4
1	3/4	2	4-1/4	4
1	1	2	4-1/2	4
1-1/8	1	2	4-1/2	5
1-1/4	1	2	4-1/2	5
1-1/4	1-1/4	2	4-1/2	5
1-1/2	1-1/4	2	4-1/2	6
1-3/4	1-1/4	2	4-1/2	6
2	1-1/4	2	4-1/2	6
2	2	2	5-3/4	6
2	1-1/4	2	4-1/2	8

Roughing end mills , inch size long length

d	d1	L2	L1	Z
1/4	3/8	1-1/4	3-1/16	4
5/16	3/8	1-3/8	3-1/8	4
3/8	3/8	1-1/2	3-1/4	4
1/2	1/2	2	4	4
5/8	5/8	2-1/2	4-5/8	4
3/4	5/8	3	5-1/8	4
3/4	3/4	3	5-1/4	4
7/8	3/4	3-1/2	5-3/4	4
7/8	7/8	3-1/2	5-3/4	4
1	1	4	6-1/2	4
1-1/4	3/4	4	6-1/4	5
1-1/4	1-1/4	3	5-1/2	5
1-1/4	1-1/4	4	6-1/2	5
1-1/2	3/4	4	6-1/4	6
1-1/2	1-1/4	3	5-1/2	6
1-1/2	1-1/4	4	6-1/2	6
1-1/2	1-1/4	5	78-1/2	6
1-3/4	1-1/4	4	6-1/2	6
2	1-1/4	4	6-1/2	6
2	2	4	7-3/4	6
2	1-1/4	4	6-1/2	8
