• Cutting Form：Flat, Ball Nose, Corner Radius, Roughing
• Coating Types：Tisin, Tialn, Altin, Ticn, Blue Nano
• End Mill Flute Diameter：D0.5mm-D25mm, Customized
• Length：50mm-150mm, Customized
• Work Piece：HRC 45, 50, 60, 65,70
• Flutes Number：2, 3, 4, 5, 6
• OEM/ODM：Available
• Logo Printing：Laser Marking for Free
• Transport Package：1PC in a Plastic Tube, 10PCS a Group
• Specification：Customized
• Trademark：LeeHoo
• Origin：China
• HS Code：820770000
• Production Capacity：100000

Basic Info.

Cutting Form Flat, Ball Nose, Corner Radius, Roughing Coating Types Tisin, Tialn, Altin, Ticn, Blue Nano End Mill Flute Diameter D0.5mm-D25mm, Customized Length 50mm-150mm, Customized Work Piece HRC 45, 50, 60, 65,70 Flutes Number 2, 3, 4, 5, 6 OEM/ODM Available Logo Printing Laser Marking for Free Transport Package 1PC in a Plastic Tube, 10PCS a Group Specification Customized Trademark LeeHoo Origin China HS Code 820770000 Production Capacity 100000

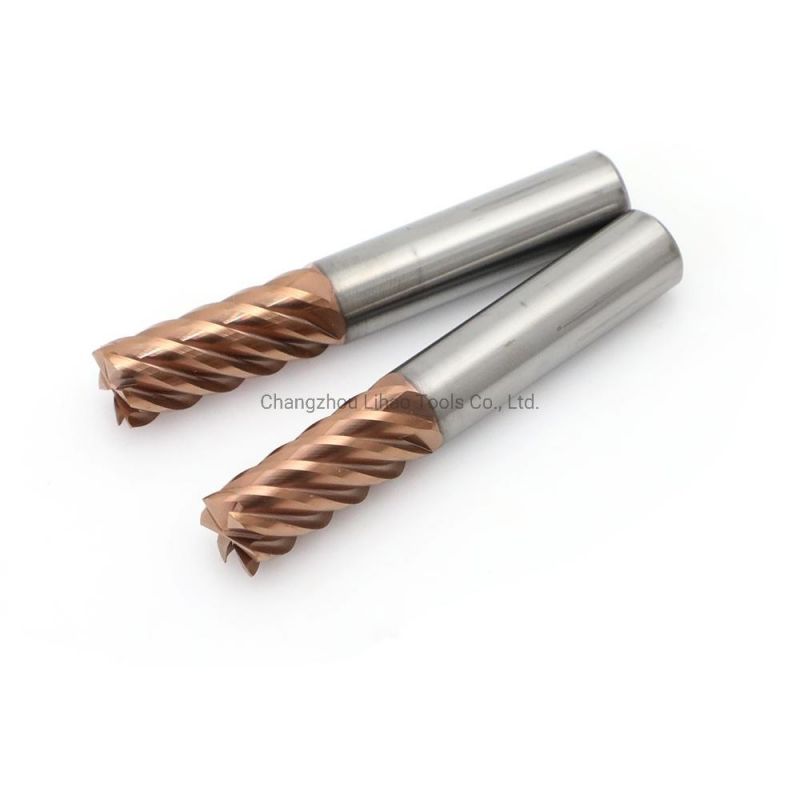

Product Description

HRC:          45/55/58/60/65/70
Coated:    Altin/Tialn/Tisin/Tin/DLC/Nano/Diamond
Flutes: 2flutes/4flutes/6flutes


1. Can be used for the processing of copper, cast iron, carbon steel, mold steel, stainless steel, taitanium alloy, tool steel, and heat-treated steel
2. Bring good surface roughness after processing
3. With highly heat-resistant ALTIN coating, can be used for high-speed processing
4. High toughness, using grain-sized carbon tungsten as the raw material
5. Help to increase the smoothness, reduce the friction coefficient, and improve the lathe efficiency, thus saving more production time

NO.	Specification	Blade Diameter	Blade Length	Shank Diameter	Total Length
1	1*3*4D*50L	1	3	4	50
2	1.5*4*4D*50L	1.5	4	4	50
3	2*5*4D*50L	2	5	4	50
4	2.5*7*4D*50L	2.5	7	4	50
5	3*8*4D*50L	3	8	4	50
6	4*11*4D*50L	4	11	4	50
7	5*13*5D*50L	5	13	5	50
8	6*15*6D*50L	6	15	6	50
9	8*20*8D*60L	8	20	8	60
10	10*25*10D*75L	10	25	10	75
11	12*30*12D*75L	12	30	12	75
12	14*45*14D*100L	14	45	14	100
13	16*45*16D*100L	16	45	16	100
14	18*45*18D*100L	18	45	18	100
15	20*45*20D*100L	20	45	20	100
16	4*15*4D*75L	4	15	4	75
17	6*25*6D*75L	6	25	6	75
18	8*30*8D*75L	8	30	8	75
19	4*16*4D*100L	4	16	4	100
20	6*30*6D*100L	6	30	6	100
21	8*35*8D*100L	8	35	8	100
22	10*40*10D*100L	10	40	10	100
23	12*45*12D*100L	12	45	12	100
24	6*45*6D*150L	6	45	6	150
25	8*50*8D*150L	8	50	8	150
26	10*55*10D*150L	10	55	10	150
27	12*60*12D*150L	12	60	12	150
28	14*65*14D*150L	14	65	14	150
29	16*65*16D*150L	16	65	16	150
30	18*65*18D*150L	18	65	18	150
31	20*75*20D*150L	20	75	20	150

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.



2) How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.

3) How long can I expect to get the sample?

After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express account or prepay us if you do not have an account.



4) How long does the whole procedure being worked out?

After you place an order, the production handling time is about 30 days. We need 15 days to prepare all the stuff then 15 days for manufacturing.



5) What about the transportation and delivery date?

Normally we use shipment to transport the goods. It is about 25-40 days. It also depends on which country and port you are in.It could be shorter if you need to send the goods like Asian. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.



6) Are you a trading company or manufaturer?

We are a professional manufacturer.



7) Where is your factory located?

We are located in  Xixiashu Town, New North District, Changzhou City, Jiangsu, China.





8) How about your stock?

We have large quantity products in stock, regular types and sizes are all in stock.



9) Is free shipping possible?

We don't offer a free shipping service. We can have a discount if you buy a large quantity of products.
