• Model NO.：HSS 315 x 2.5mm
• Type：Cutter
• Hardness：HRC62-65
• Tooth Grinding：CNC Tooth Grinding Machine
• Heatment Treatment：Salt Bath
• Tooth Number：Z=220
• Material：High-Speed Steel
• Thickness：2.0mm,2.5mm
• Bore：32mm
• Delivery Time：4-6 Weeks After Order
• Application：Tube Cutting.
• Transport Package：10PCS Per Carton
• Specification：315x2.5mm
• Trademark：FUWEISI
• Origin：China
• HS Code：82023900
• Production Capacity：300, 000PCS Per Year

Basic Info.

Model NO. HSS 315 x 2.5mm Type Cutter Hardness HRC62-65 Tooth Grinding CNC Tooth Grinding Machine Heatment Treatment Salt Bath Tooth Number Z=220 Material High-Speed Steel Thickness 2.0mm,2.5mm Bore 32mm Delivery Time 4-6 Weeks After Order Application Tube Cutting. Transport Package 10PCS Per Carton Specification 315x2.5mm Trademark FUWEISI Origin China HS Code 82023900 Production Capacity 300, 000PCS Per Year

Product Description

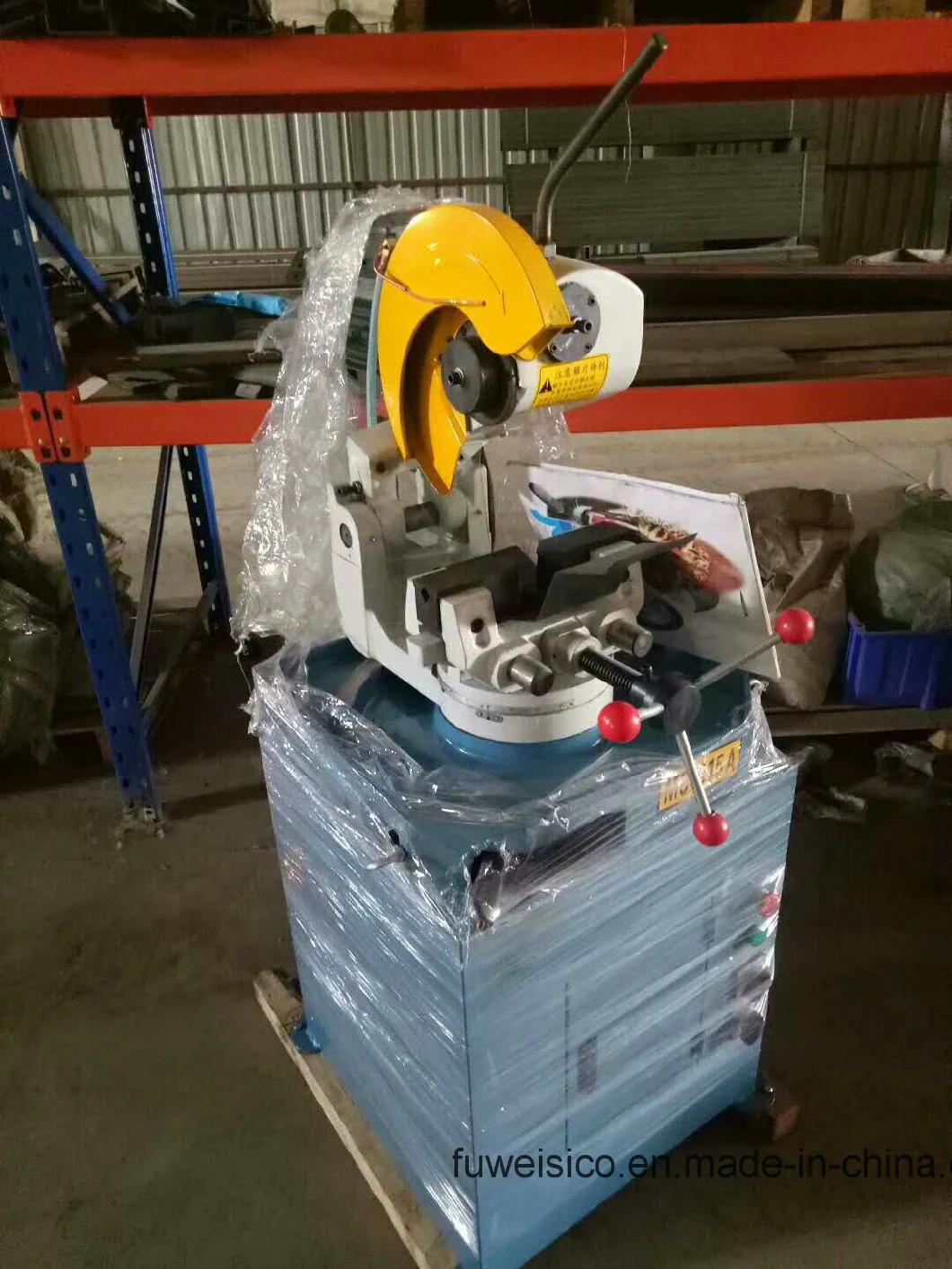

FUWEISI High Quality HSS Circular Saw Blade for tube cutting used on 315 manual machine.


FUWEISI High Quality HSS Circular Saw Blade.

Type:
       Tin-coated(Titan-Nitrid)
Tooth form:
         A/AW/B/BW/Hz
Diameter:
         200mm; 225mm, 275mm, 300mm,
         315mm, 350mm, 370mm, 400mm, 425mm, 450mm.500mm
Thickness:
          1.2mm; 1.6mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm. 4.0mm.
Bore diameter:
           32mm, 38mm, 40mm, 50mm or customer bore size.

Technical data ot Tin coating:

Colour: Gold
Process: PVD
Hardness: 2500HV
Friction: 0.4
Thickness: 1-4mm.
Max cutting temperature: 600 degree.
Operation:
               Structural steel
               Alloyed steels
               Steel pipes and profiles
                Pipes and profiles out non ferrous metals
Technical recommendation:

Raising of the coating hardness by reducing the friction
Universal coating for better sawblade life
50-100%higher speed and feed rates
Prevention of side pick-UPS

Production is based on DIN standards 1836, 1837, 1838 and 1840, extended by the refined "FUWEISI" manufacturing standards. The delivery program consists of a range of standard sawblades which can be delivered from stock and a range of special sawblades to be produced to customer specifications.

The FUWEISI HSS TIN sawblades are supplied as standard in high speed steel grade M2 = DIN 1.3343. It suits for the cutting of the materilas like stainless steel, iron pipe, steel pipe, etc.

All the products haven been enjoying an excellent reputation in the world market for it's competitive price and excellent quality.

Why choose FUWEISI Saw Industry?

• 20 Years experience in saw blade manufacturing.
• Professional sales & technical team at your service.
• FUWEISI Saw Industry is specialized in providing whole metal cutting blades and solutions  for customers.
• Factory with the best competitive price and quality .
• Directly after-sales service from Factroy
• Owned different certificates such as CE, TUV,SGS, ISO9001, etc.
• Owned direct export license,and have been exporting to more than 20 countries and regions.

Do you accept OEM orders?

• Yes, we can make OEM for saw blades according to your requests,but we have minimum order qty to start.

What is your warranty?

• Quality: 100% assured by strict QC system,and manufactured according to export standard.

What is the payment term if I placed orders to you?

• Normally we will accept T/T or L/C. More details can be discussed case by case.

What is your lead time?

• 15 to 60 days after receiving deposit. Special situation can be discussed case by case.
