Center Height100mm with 125mm 3 Jaw Chuck Precision Semi Univerdal Dividing Head for Milling Machine
Yantai Formore Machinery Co., Ltd.- Certification：ISO9001:2008, ISO9001:2000
- Application：Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, Milling and Drilling Machine
- Function：Semi-Universal
- Structure：Tilting Type
- Dividing Type：Worm Type
- Material：Cast Iron
Base Info
- Model NO.：F12100
- Type：Universal Dividing Head
- Transport Package：Plywood Case
- Specification：F12
- Trademark：Neutral or OEM
- Origin：China
- HS Code：84663000
- Production Capacity：2000,Year
Description
ItemsFB80 F12100 F12125 F12160 F12200 F12250 Center height mm 80 100 125 160 200 250 Swivel angle of spindle from its horizontal position (upward) ≤90° ≤95° Horizontal position(downward) ≤6° ≤5° Rotating angle of spindle for one complete revolution of dividing handle 9°(540grad.,1'each) Min. reading of vernier 10" Worm gear ratio 1:40 Taper of spindle bore MT3 MT4 MT5 Width of locating key mm 14 18 22 Dia.of short taper of spindle nose for mounting flange mm Φ36.541 Φ41.275 Φ53.975 Φ82.563 Hole numbers on index plate 1st plate 24,25,28,30,34,37,38,39,41,42,43 2nd plate 46,47,49,51,53,54,57,58,59,62,66 Individual indexing error of the spindle for one complete revolution of dividing handle 60" ±45" Cumulate error at any 1/4 periphery of spindle 70" ±1' Max. bearing Kg 80 100 130 130 200 200 N.W. Kg 26 57 83.5 100 G.W. Kg 32 69 96 114 325 380 Case dimensions mm 480X360X219 610X459X255 536X460X310 710X505X342 980X720X530 980X720X530
Company instructions:

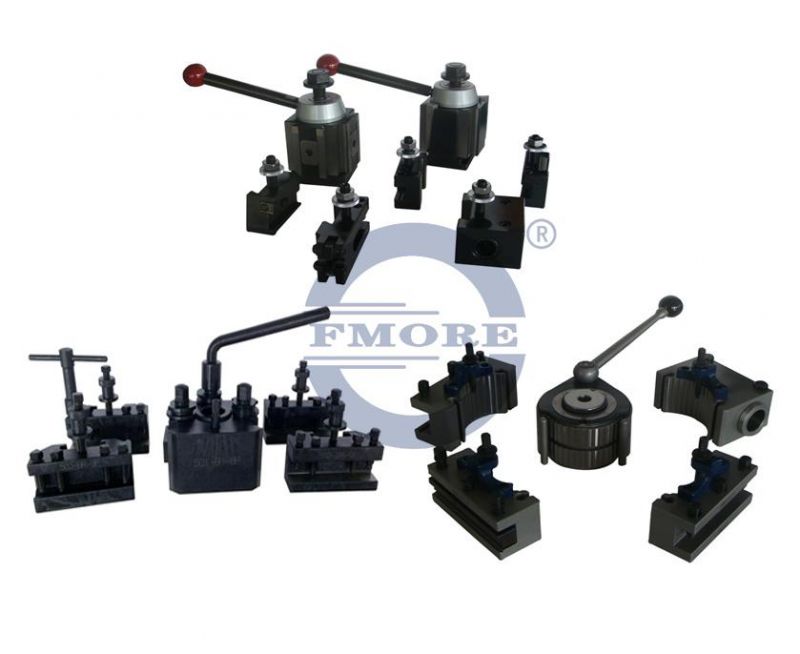

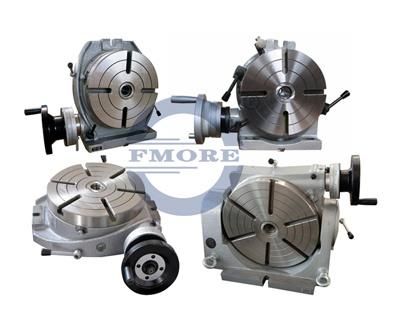

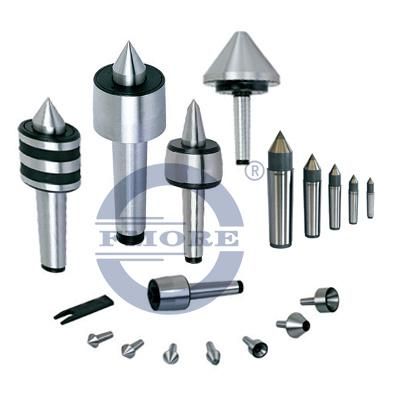

Yantai Formore Machinery Co., Ltd. Located in a beautiful coastal city of Yantai, Shandong, China. We specializes in supplying Machine Accessories for more than ten years .We supply machine tools, such as NC turret, steady rest,dividing head, rotary table, machine vises, lathe chucks, magnetic chucks, live center ,tools post ,drill chucks and so on. If you need our products please feel free to contact me. I will provide the best service.
we also provide bellow products:
RFQ:
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q: What is your term of delivery?
A: We accept EXW, FOB Qingdao etc or CFR QINGDAO etc. You can choose the one which is the most convenient or cost effective for you.
Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
Q: Are you trading company or manufacturer ?
A: We are factory and trade company.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
