• Model NO.：1.0x3x50, 1.5x4x50, 2.0x6x50, 2.5x8x50, 3.0x8x50
• Flute Length：2.5mm-50mm, Customized
• End Mill Flute Diameter：0.5mm-25mm, Customized
• Package：1 PCS in a Plastic Tube, 10 PCS Per Group
• Shipment：FedEx, DHL, TNT, UPS, EMS, etc.
• Transport Package：Standard Export Carton
• Specification：33x23x19cm
• Trademark：Grewin
• Origin：Zhuzhou, China
• HS Code：8207709000
• Production Capacity：500000PCS,Month

Basic Info.

Model NO. 1.0x3x50, 1.5x4x50, 2.0x6x50, 2.5x8x50, 3.0x8x50 Flute Length 2.5mm-50mm, Customized End Mill Flute Diameter 0.5mm-25mm, Customized Package 1 PCS in a Plastic Tube, 10 PCS Per Group Shipment FedEx, DHL, TNT, UPS, EMS, etc. Transport Package Standard Export Carton Specification 33x23x19cm Trademark Grewin Origin Zhuzhou, China HS Code 8207709000 Production Capacity 500000PCS/Month

Product Description

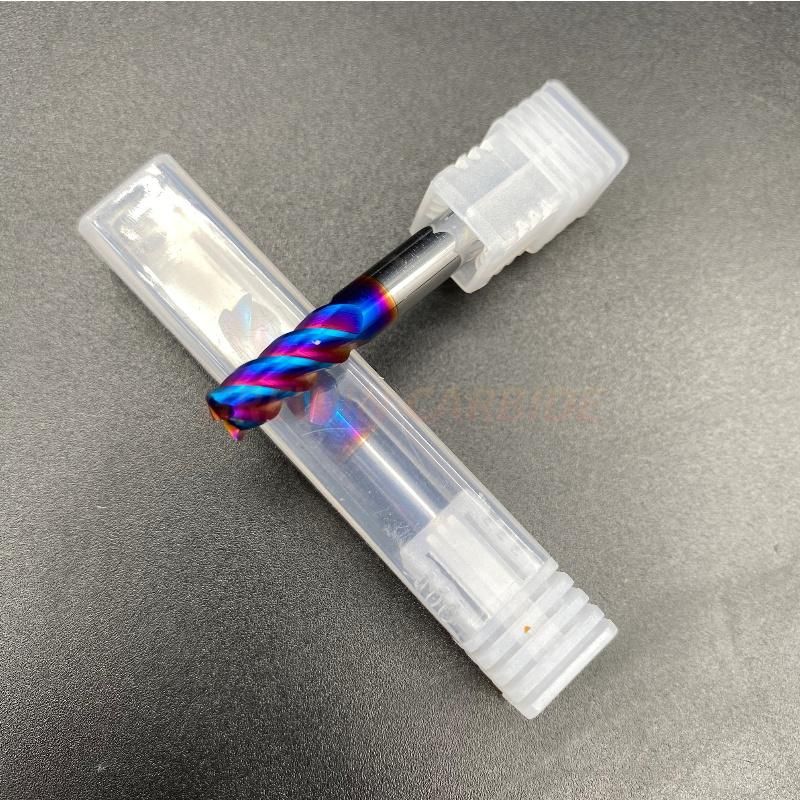

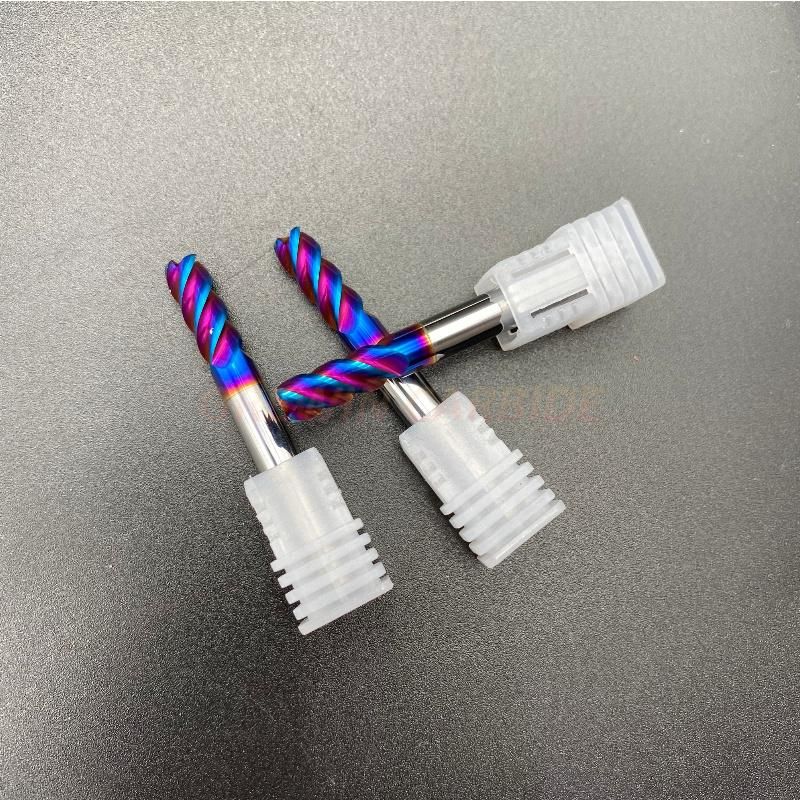

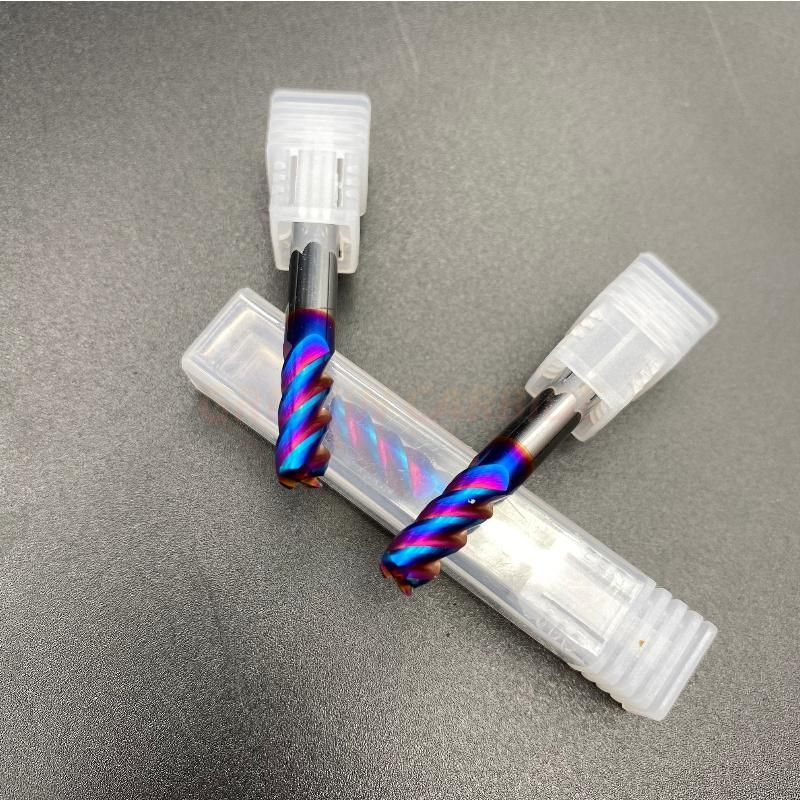

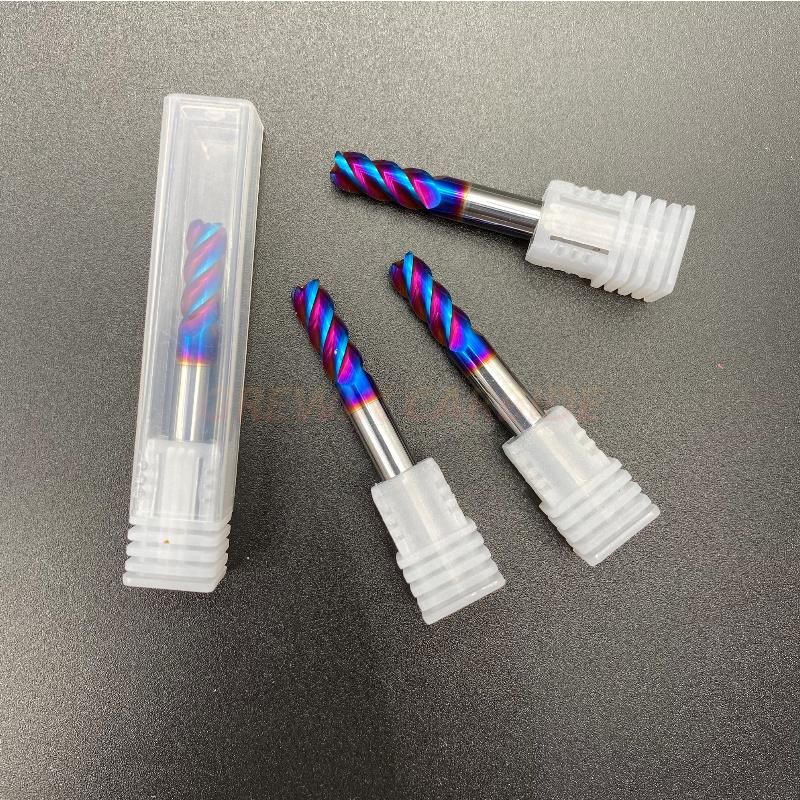

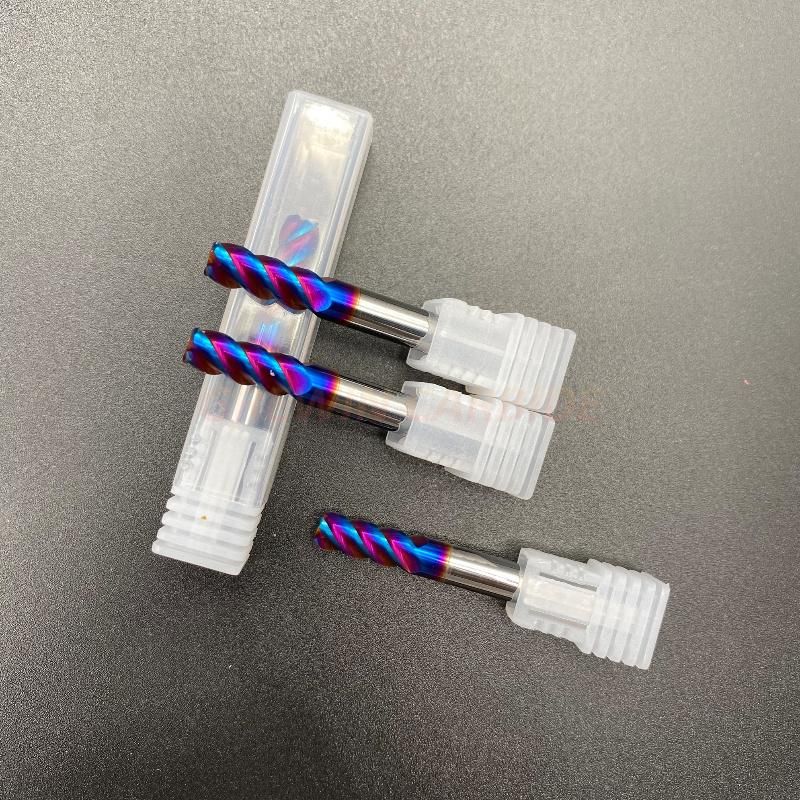

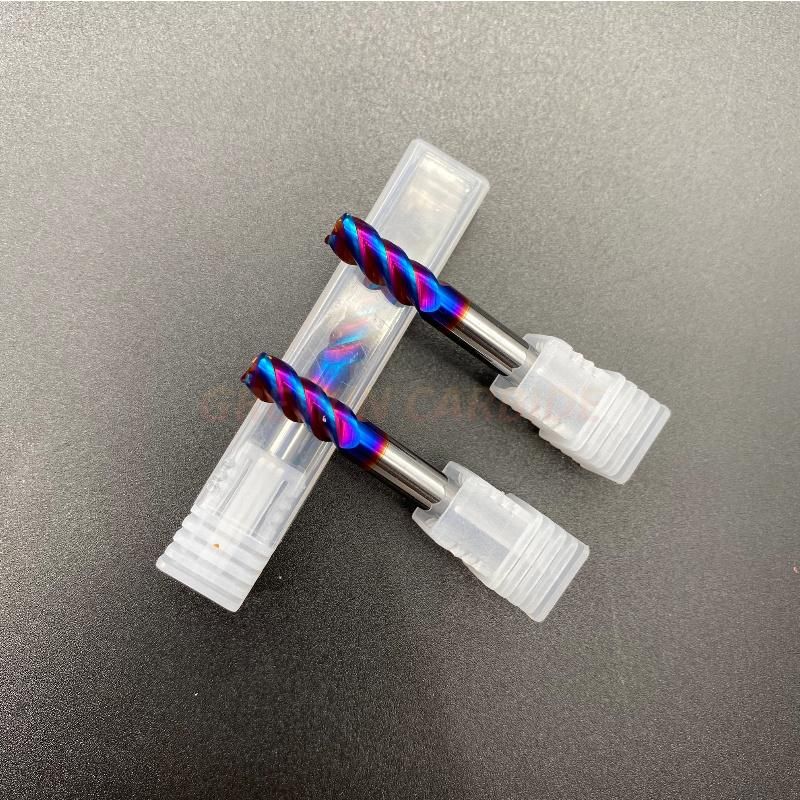

We supply good quality of tungsten carbide end mills by fast turnaround.

1. Products Description

Micro grain raw material
Grain size:  0.4-0.6μm
Co   10%, 12%
TRS   >3600 N/mm2
Hardness   HRA 91.8-92.5
Work piece   HRC45-50   HRC55-60   HRC65   HRC68
Helix angle   30°-45 °
Diameter of cutting edge   0.2-0.9 mm; 1-20 mm
Diameter of rods   4-20 mm
Length   50-100 mm
Cutting Form   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No.   1-7

HRC45	HRC55	HRC60	HRC65
Grain Size:0.6um Co:10 % Flexural strength:3350N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2


2. Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: WALTER,  ANCA,  ROLLOMATIC
Testing equipment: ZOLLER

3. Coating

Coating	Color	Coating Temperature	Thickness (um)	HV	Application Temperature	Friction coefficient
TiAlN	Purple-Gray	<600°C	3-5	3300	800 °C	0.3
AiTiN	Black	<600 °C	3-5	3500	900 °C	0.3
TiXco	Copper	<600 °C	3-5	3500	1500 °C	0.4
NaNo	Blue	<600 °C	3-5	3800	1200 °C	0.4
AiCrN	Silver Gray	<480 °C	2-2.5	2500	700 °C	0.3

4. Payment
T/T, Western Union, Paypal (Choose your convenient way)

5. Shipment
FEDEX, TNT,DHL, UPS, EMS,etc.
The port is Beijing,Shanghai ,Guangzhou ,Shenzhen,any port in China. (choose your convenient way)

6. Packing

Laser print brand name on cutter shank,  1 pcs in a plastic tube, 10 pcs per group

7. Delivery time

Keep stock for regular types
Samples:   3 - 5 days
Regular orders:  7 - 10 days

Standard Sizes:

Order No.	Flute dia (d)	Cutting length ( l )	Shank dia (D)	Overall length(L)
1.0×2.5×4D×50L	1.0	2.5	4	50
1.5×4×4D×50L	1.5	4	4	50
2.0×5×4D×50L	2.0	5	4	50
2.5×7×4D×50L	2.5	7	4	50
3.0×8×4D×50L	3.0	8	4	50
3.5×10×4D×50L	3.5	10	4	50
4.0×10×4D×50L	4	10	4	50
4.5×11×6D×50L	4.5	11	6	50
5.0×13×6D×50L	5.0	13	6	50
5.5×13×6D×50L	5.5	13	6	50
6.0×15×6D×50L	6.0	15	6	50
6.5×15×8D×60L	6.5	15	8	60
7.0×17×8D×60L	7.0	17	8	60
7.5×17×8D×60L	7.5	17	8	60
8.0×20×8D×60L	8.0	20	8	60
8.5×25×10D×75L	8.5	25	10	75
9.0×25×10D×75L	9.0	25	10	75
9.5×25×10D×75L	9.5	25	10	75
10.0×25×12D×75L	10.0	25	12	75
10.5×25×12D×75L	10.5	25	12	75
11.0×28×12D×75L	11.0	28	12	75
11.5×28×12D×75L	11.5	28	12	75
12.0×30×12D×75L	12.0	30	12	75
13.0×33×16D×100L	13.0	33	16	100
14.0×40×16D×100L	14.0	40	16	100
15.0×40×16D×100L	15.0	40	16	100
16.0×40×16D×100L	16.0	40	16	100
17.0×40×20D×100L	17.0	40	20	100
18.0×40×20D×100L	18.0	40	20	100
19.0×40×20D×100L	19.0	40	20	100
20.0×40×20D×100L	20.0	40	20	100
25.0×40×25D×100L	25.0	40	25	100
