• Model NO.：RN170
• Transport Package：Plywood Case
• Specification：dia. 170
• Trademark：Neutral or OEM
• Origin：China
• HS Code：84663000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. RN170 Transport Package Plywood Case Specification dia. 170 Trademark Neutral or OEM Origin China HS Code 84663000 Production Capacity 5000PCS/Year

Product Description

The 4 axis rotary table can be used in horizontal and vertical position on machine center and millling machine.
3-jaw or 4 jaw lathe chuck and tailstock can be supplied according to customers' order.

No.	Items	RN170	RN200	RN250	RN315
1	Table diameter,mm	170	200	250	315
2	Center height in Vert.,mm	155	170	190	225
3	Total thickness,mm	180	188	193	250
4	Center bore dia.,mm	Φ40H7	Φ40H7	Φ40H7	Φ50H7
5	Locating key,mm	18	18	18	18
6	T-slot,mm	4-12	4-12	6-12	6-14
7	Worm gear ratio	1:72	1:72	1:72	1:72
8	Total reduction ratio	1:72	1:72	1:72	1:72/1:144
9	Max.speed,motor 2000 r/min	27.7	27.7	27.7	27.7
10	Graduation angle per pulse	0.001°	0.001°	0.001°	0.001°
11	Servo motor torque,Nm	≥4	≥4	≥6	≥8
12	Dividing accuracy	20"	20"	20"	20"
13	Repeatability	4"	4"	4"	4"
14	Clamp torque,Kg.m ( Pneumatic 0.5MPa)	10	20	35	60
15	Vert.max.load,kg	50	75	100	150
16	Hor.max.load,kg	150	200	250	350

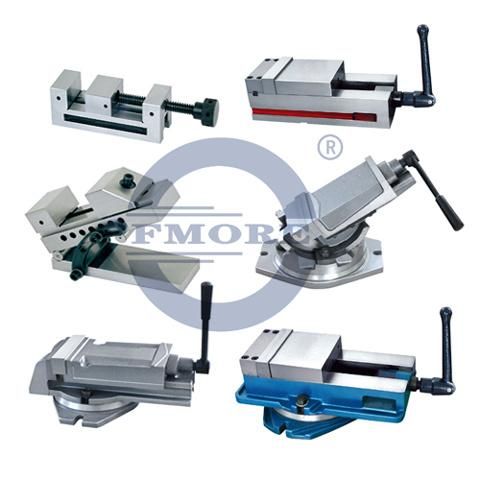

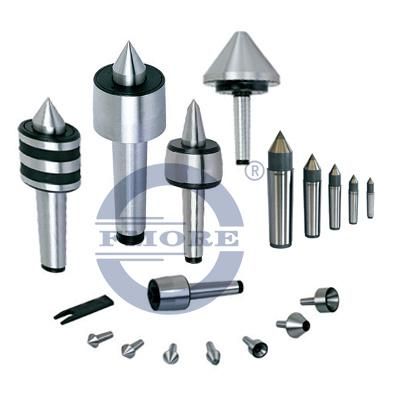

We also product these goods:
