Cold Saw Blade 255X2.0X1.6X25.4X100t for Metal Cutting.
HANGZHOU FUWEISI SAW INDUSTRY CO., LTD.- Certification:ISO9001:2008, ISO9001:2000, RoHS, CE
- Tooth Form:Standard Tooth
- Diameter:250mm
- Function:Cutting
- Shape:Circular
- Coating:Uncoated
Base Info
- Model NO.:255 x 2.0x1.6x25.4 x 100T.
- Type:Cermet Tipped Circular Saw Blade.
- Transport Package:Carton
- Specification:250 x 20 x 32mm x 54,60,72,80 tooth
- Trademark:FUWEISI, BOSS CUT
- Origin:China
- HS Code:82023990
- Production Capacity:10000PCS,Month
Description
Basic Info.
Model NO. 255 x 2.0x1.6x25.4 x 100T. Type Cermet Tipped Circular Saw Blade. Transport Package Carton Specification 250 x 20 x 32mm x 54/60/72/80 tooth Trademark FUWEISI, BOSS CUT Origin China HS Code 82023990 Production Capacity 10000PCS/MonthProduct Description

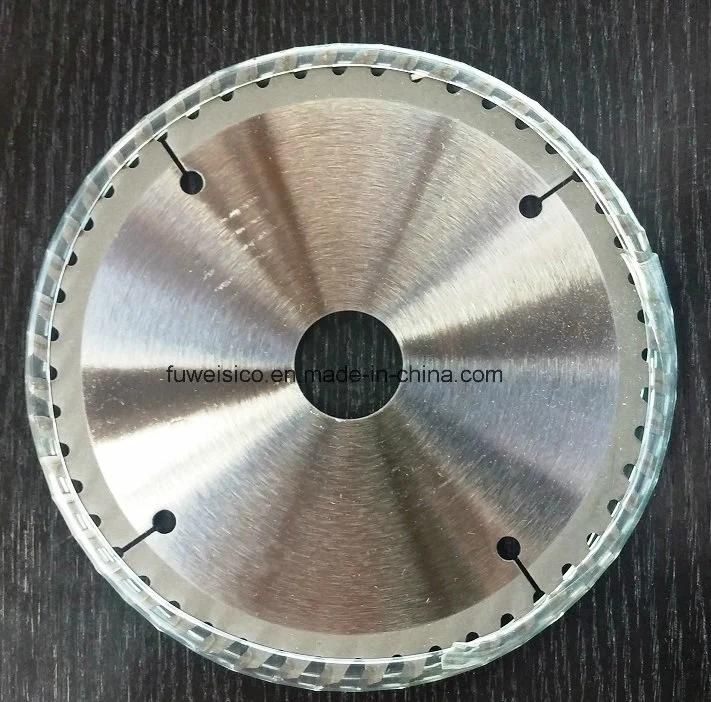

Cermet tipped circular saw blade.

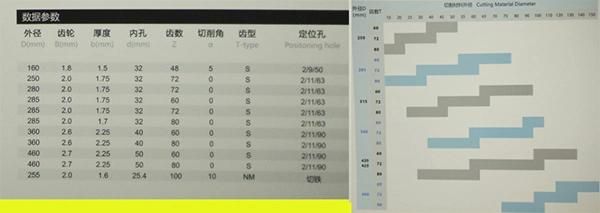

D | B | b | d | Z |
160 | 1.8 | 1.5 | 32 | 48 |
250 | 2.0 | 1.75 | 32 | 72 |
280 | 2.0 | 1.75 | 32 | 72 |
285 | 2.0 | 1.75 | 32 | 60 |
285 | 2.0 | 1.75 | 32 | 72 |
285 | 2.0 | 1.7 | 32 | 80 |
360 | 2.6 | 2.25 | 40 | 60 |
360 | 2.6 | 2.25 | 40 | 80 |
460 | 2.7 | 2.25 | 50 | 80 |
460 | 2.7 | 2.25 | 50 | 80 |
255 | 2.0 | 1.6 | 25.4 | 100 |
1.Designed for 10#,20# and other low carbon steel pipe or bar cutting.
2.Using cermet tip(imported),special tension dealing,grinded with unique grinding machine,you can cut steel easily.
3.The cutting work piece quality is higher with smooth cut surface,and the blade has higher wear and adhesion resistant with longer lifetime.
4.Resharepenable cold saw has special cutting angle,can be reground several times so that reduce the cost.
