• Flutes：1, 2, 3, 4, 5, 6, 7, 8 Flutes
• HRC：45,55,60,65 Degrees
• Length：30-200mm
• Diameter：3-40mm
• Controlling Mode：CNC
• Certificate：ISO 9001:2008
• Transport Package：Protective Sleeve+Plastic Box+Paper Box+Carton
• Trademark：ChangCheng
• Origin：Changzhou Jiangsu, China
• HS Code：8207709000
• Production Capacity：300000,Month

Basic Info.

Flutes 1, 2, 3, 4, 5, 6, 7, 8 Flutes HRC 45/55/60/65 Degrees Length 30-200mm Diameter 3-40mm Controlling Mode CNC Certificate ISO 9001:2008 Transport Package Protective Sleeve+Plastic Box+Paper Box+Carton Trademark ChangCheng Origin Changzhou Jiangsu, China HS Code 8207709000 Production Capacity 300000/Month

Product Description

Customized, OEM or ODM Available

Tool models	End mill, Drill Bit, Reamer, Boring Tool, Taps, Saw Blades, Welding Tool, Plug Gauge, Tool Holder, etc.
Raw Material	Solid carbide, Tungsten carbide , High Speed Steel
Coating	TIN, TiALN, AlTiN, TiAIN, etc.
Usage	General High Speed Cutting, Milling, Drilling or Reaming, Used On CNC Lathe
Processing material	Alloy steel, titanium alloy, nickel base alloy, steel, stainless steel, quenched and tempered hardened steel, non-ferrous metals, etc.
Application	Automotive, aviation, aerospace enterprise, motorcycle engine, diesel engine, carburetor, compressor, mold industry, etc.

 1.Selected high-quality raw materials

Grade	YG10X	YG10.2 WF25(Taiwan)	K44 K40	Sandvik H10F
Hardness	HRC50	HRC55	HRC60	HRC65
Grain Size	0.7um	0.6um	0.5um	0.4um
Cobalt Content	10%	10%	12%	12.50%
Flexural Strength	3320N/mm2	4000N/mm2	4300N/mm2	4300N/mm2

100% original raw materials, no recycle

2.Super Coating

	TiN	TiCN	CrN	AlTiN	TiSiN	Nano	DLC
Hardness(HV)	2700	3000	2500	3200	3600	42(GPA)	3600
Thickness(UM)	2-6	2-6	2-6	2.5-3	3	3	0.5-10
Oxidation Temp(°)	600	400	700	900	1000	1200	350
Friction Coefficient	0.4	0.3	0.2	0.3	0.45	0.4	0.06
Color	Gold	Steel Gray	Silver Grey	Black	Copper	Blue	Silver Grey

Super coating reduce the coefficient of friction, improve the efficency of machines and improve the tools life much.
 3.Imported CNC machineANCA from Australia
Walter from Germany
Tru Tech from the USA
Jack Mill from TaiWan province of CHINA
 4.Imported Test MachineZoller Genius 3s  Zoller TFT-Display
SEVEN OCEAN

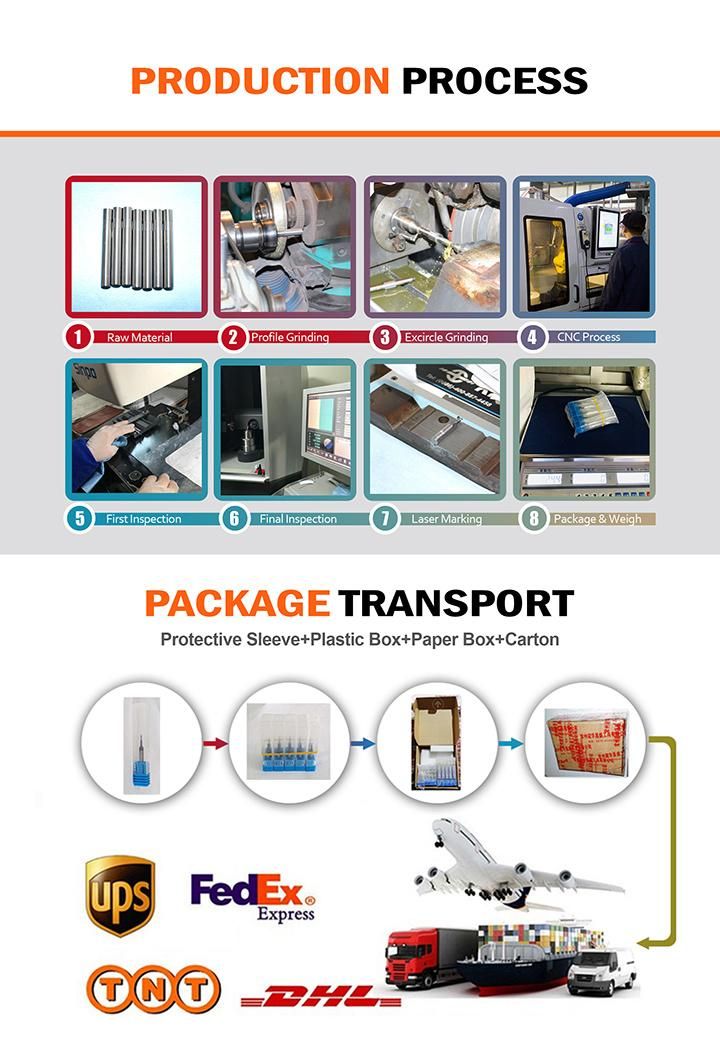

 5.Strict measurement sequence Five step test1.Test the rod after grinding
2.Test when produce the tools
3.Test all parameter after CNC processing
4.Test flutes after coating
5.Test the packing before shipping
 6.Packaging & Shipping1.Laser brand and dimensions on the body of cutters, print labels.
2.5PCS or 10PCS each group,sealed with air bubble wrap, pack into bigger carton.
3.Marking and Laser brand can be our and yours, or no. All depend on your require.
 7.Delivery Time1.For samples, we dispatch your tools in 2-7 workdays.
2.For formal orders, We delivery tools to you in 7-30 workdays, it will depond on your order quantity.

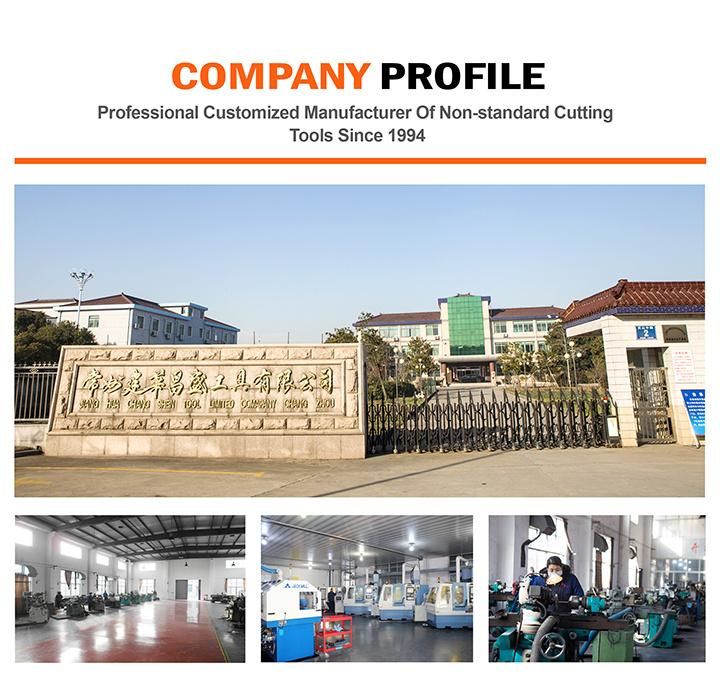

 8.Our Advantage1.Professional: Engaged in designing and producing solid carbide cutting tools since 1994, so rich experience.
2.High quality: Adopted advanced ANCA CNC machine with best raw material from Germany and Sweden, also 100% Zoller measuring and inspecting.
3.Best service: Produce according to your requirement and provide after-sale help if you need.
4.Price: With our own factory, you can get more competitive price from us.
