High Speed Steel Round Dies
Zhenjiang Scharp Machinery Tools Co., Ltd.- Application：Punching Machine
- Standard：Standard
- Coating：Uncoated
- Material：High Speed Steel
- Type：Cutter
- Work Type：Thread Machining
Base Info
- Model NO.：metric
- Transport Package：Plastic Box
- Specification：M1 to M120
- Trademark：stc
- Origin：Zhenjiang Jiangsu
- HS Code：82077000
- Production Capacity：500000PCS,Size
Description
Basic Info.
Model NO. metric Transport Package Plastic Box Specification M1 to M120 Trademark stc Origin Zhenjiang Jiangsu HS Code 82077000 Production Capacity 500000PCS/SizeProduct Description

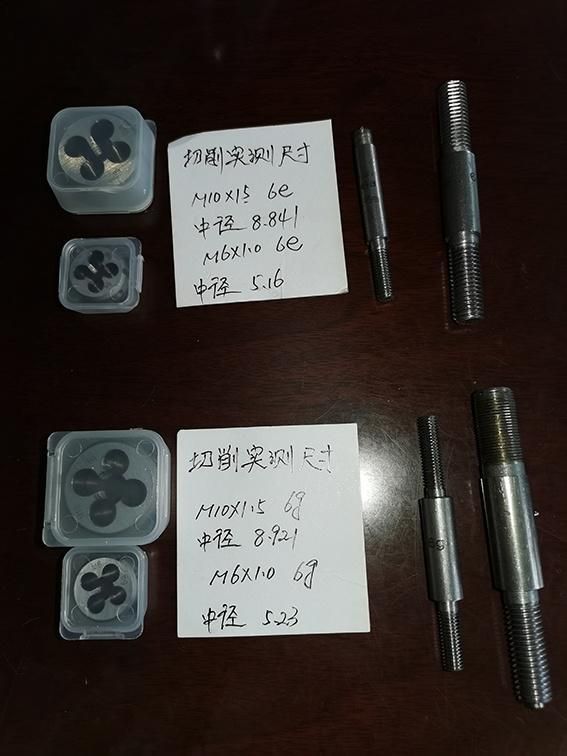

HSS thread cutting dies to DIN EN standardsFor machine and manual use
For cutting threads in steel up to approx. 800 N/mm²
DIN 223 GOST 9740
| Size | Pitch | Outside | Size | Pitch | Outside | |
| M2 | 0.4 | 16x5 | M12 | 1.75 | 38x11 | |
| M2.2 | 0.45 | 16x5 | M14 | 2 | 38x11 | |
| M2.3 | 0.4 | 16x5 | M16 | 2 | 45x18 | |
| M2.5 | 0.45 | 16x5 | M18 | 2.5 | 45x18 | |
| M2.6 | 0.45 | 16x5 | M20 | 2.5 | 45x18 | |
| M3 | 0.5 | 20x5 | M22 | 2.5 | 55x22 | |
| M3.5 | 0.6 | 20x5 | M24 | 3 | 55x22 | |
| M4 | 0.7 | 20x5 | M27 | 3 | 65x25 | |
| M4.5 | 0.75 | 20x7 | M30 | 3.5 | 65x25 | |
| M5 | 0.8 | 20x7 | M33 | 3.5 | 65x25 | |
| M6 | 1 | 20x7 | M36 | 4 | 65x25 | |
| M7 | 1 | 25x9 | M39 | 4 | 75x30 | |
| M8 | 1.25 | 25x9 | M42 | 4.5 | 75x30 | |
| M9 | 1.25 | 25x9 | M45 | 4.5 | 90x36 | |
| M10 | 1.5 | 30x11 | M48 | 5 | 90x36 | |
| M11 | 1.5 | 30x11 | M52 | 5 | 90x36 |
