CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable

Pingyuan Haotian Machinery Co., Ltd.
  • Material：Stainless Steel
  • Transport Package：Wooden Carton

Base Info

  • Model NO.：TSK TSL TSA TK
  • Specification：TSL TSK
  • Trademark：HT-TOOLS
  • Origin：China
  • Package size per unit product：35.00cm * 35.00cm * 30.00cm
  • Gross weight per unit product：29.000kg

Description

SpecificationsTSK160TSK250TSK320TSK400Diameter of table (mm)Φ160Φ250Φ320Φ400Mose taper of the center holeMS2MS3MS4MS4Diameter of the center hole(mm)Φ25*6Φ30*6Φ40*10Φ40*10Width of t-slot (mm)10121414Adjacent angle of table t-slot60°60°60°60°Width of the locating key(mm)12141818Modules of worm and worm gear1.522.53.5Transmission ratio of the worm gear1:901:901:901:90Graduation of the table360°360°360°360°Tilting angle0°~90°0°~90°0°~90°0°~90°Readout of the handwheel1′1′1′1′Minimum value of vemier10"10"10"10"Minimum reading of the tilting vemier2'2'2'2'TSK Table Indexing accuracy80"60"60"60"TSK Table Max bearing(with table hor)kg100200250300TSK Table Max bearing(with table vert)kg50100125150TSK Table Net weight kg3680135280TSK Table Gross weight kg4493150305TSK Table Case dimensions mm425*380*300550*430*330630*490*395830*600*460

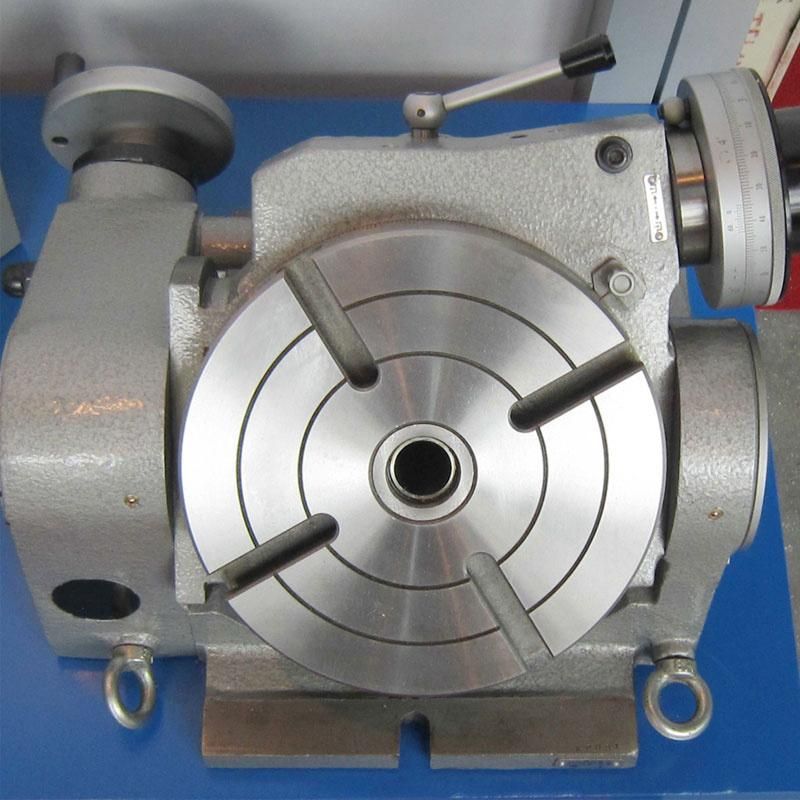

Picture show

CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable
CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable

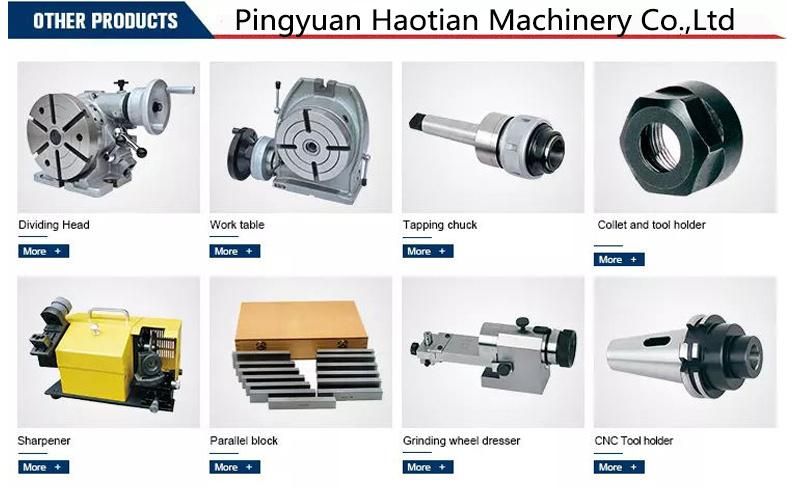

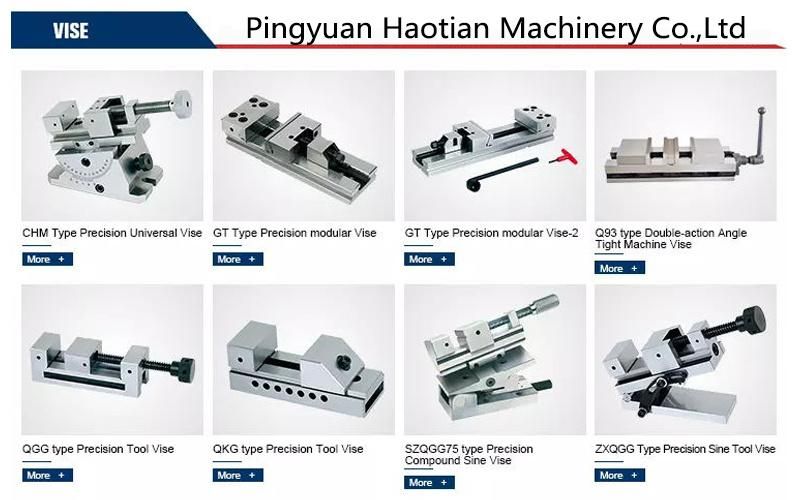

Main product

CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable

CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable

Company information

Our company was founded in 2003,We have our own factory. we have rich experience in trading

area and have a lot of fixed customers.We are specialized in researching,producing and developing

many kinds of collets,CNC tool holders, ER nuts,ER spanners,machine vises,fasteners,quick

change tool post,punch former,lathe chuck etc.With high quality and full varieties.all of our products

are deeply trusted by customers both at home and abroad.

We do export for about 16 years.We mainly export to Germany, USA, Italy, Canada, UK, Singapore,

Ukraine, Australia,Turkey and so on.

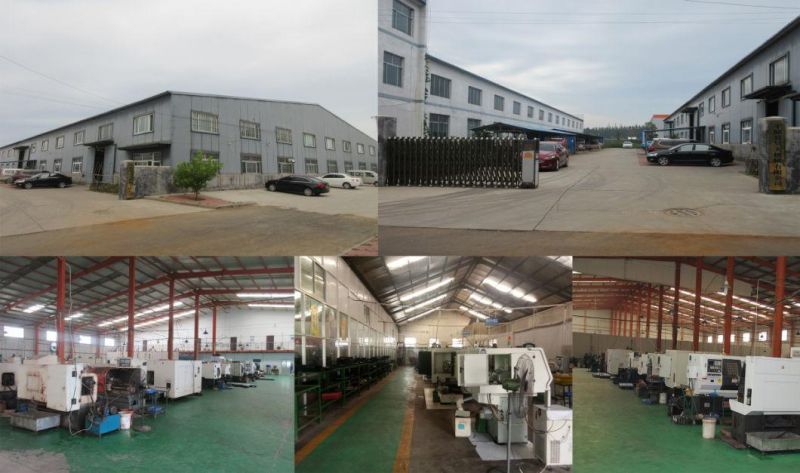

Workshop

CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable
CNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning WorktableCNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning WorktableCNC Machine Process Tool Holders Work Tables Tsk Tilting Rotary Table Vertical or Horizonta Turning Worktable
We have our own factory. We have about 100 workers and 8 inspectors. Our old engineers have

about 30 years experience in these area.We established an independent commercial company in

2003. We have 12 sales.


FAQ

1. Are you factory or Trade Company?
We are Industry and trade integration.

2. Could you supply samples?
Yes, we can supply.

3. Where do you export?
The whole world.

4. Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5. What are the shipping ways?
By international express, by air, by sea are all ok.

6. Do you have minimum order quantity?
Conventional Products don't have. The minimum order quantity of non-standard products is 50pcs.

7. What's your payment way?
T/T, Pay pal, Western Union and so on
