• Model NO.：BT-ER
• Application：CNC Machine
• Transport Package：Cases
• Specification：100x100x50mm
• Trademark：Neutral
• Origin：China
• HS Code：84661000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. BT-ER Application CNC Machine Transport Package Cases Specification 100x100x50mm Trademark Neutral Origin China HS Code 84661000 Production Capacity 10000PCS/Year

Product Description

Features:
Spindle conicity standard:JIS mas  403 BT

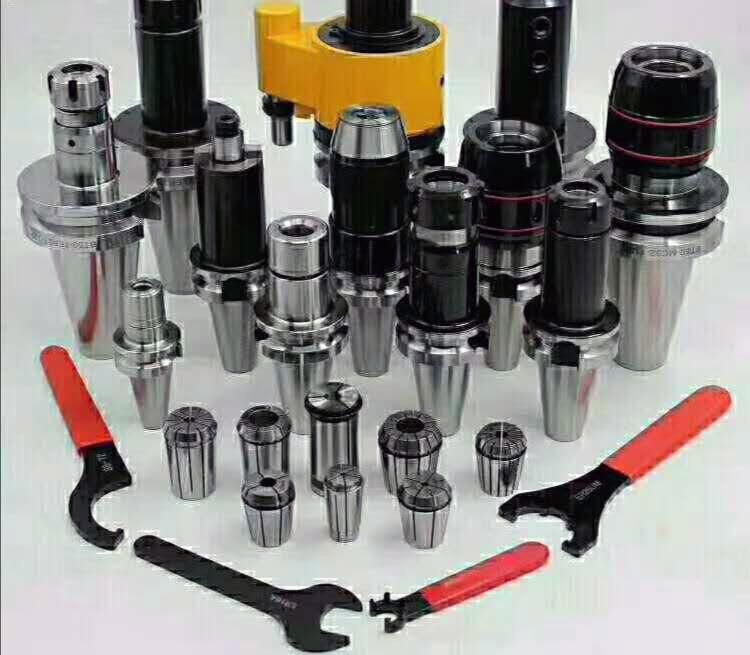

ER collet chuck set with ER  collet with flexibility used for gripping cutting tool ,drill bit ,draw bolt and so on .
When using ,nut should be clamped tensed firstly with cutting tools then locked int the main body.
Always use the recommended wrench or spanner,unless,there might cause damage of cutting tools.
The spanner,pull stud chuck must purchase alone.

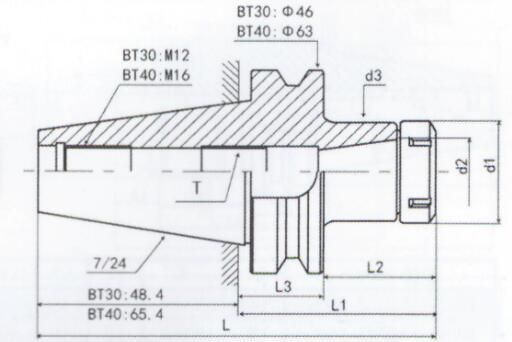

Model	L	L1	L2	L3	d1	d2	d3	T	Range
BT40-ER11-70L	135.4	70	43	27	16	11	16	M6*1.0P	1-7mm
BT40-ER11-100L	165.4	100	73	27	16	11	16	M6*1.0P	1-7mm
BT40-ER11-150L	215.4	150	123	27	16	11	16	M6*1.0P	1-7mm
BT40-ER16-70L	135.4	70	43	27	28	16	28	M10*1.5P	1-10mm
BT40-ER16-100L	165.4	100	73	27	28	16	28	M10*1.5P	1-10mm
BT40-ER16-150L	215.4	150	123	27	28	16	28	M10*1.5P	1-10mm
BT40-ER16-200L	265.4	200	173	27	28	16	28	M10*1.5P	1-10mm
BT40-ER20-70L	135.4	70	43	27	34	20	34	M12*1.75P	1-13mm
BT40-ER20-100L	165.4	100	73	27	34	20	34	M12*1.75P	1-13mm
BT40-ER20-150L	215.4	150	123	27	34	20	34	M12*1.75P	1-13mm
BT40-ER20-200L	265.4	200	173	27	34	20	34	M12*1.75P	1-13mm
BT40-ER25-70L	135.4	70	43	27	42	25	42	M16*2.0P	1-16mm
BT40-ER25-100L	165.4	100	73	27	42	25	42	M16*2.0P	1-16mm
BT40-ER25-150L	215.4	150	123	27	42	25	42	M16*2.0P	1-16mm
BT40-ER25-200L	265.4	200	173	27	42	25	42	M16*2.0P	1-16mm
BT40-ER25-250L	315.4	250	223	27	42	25	42	M16*2.0P	1-16mm
BT40-ER25-300L	365.4	300	273	27	42	25	42	M16*2.0P	1-16mm
BT40-ER32-70L	135.4	70	43	27	50	32	50	M16*2.0P	2-20mm
BT40-ER32-100L	165.4	100	73	27	50	32	50	M16*2.0P	2-20mm
BT40-ER32-150L	215.4	150	123	27	50	32	50	M16*2.0P	2-20mm
BT40-ER32-200L	265.4	200	173	27	50	32	50	M16*2.0P	2-20mm
BT40-ER32-250L	315.4	250	223	27	50	32	50	M16*2.0P	2-20mm
BT40-ER32-300L	365.4	300	273	27	50	32	50	M16*2.0P	2-20mm
BT40-ER40-80L	145.4	80	53	27	63	40	63	M20*2.0P	2-26mm
BT40-ER40-100L	165.4	100	73	27	63	40	63	M20*2.0P	2-26mm
BT40-ER40-150L	215.4	150	123	27	63	40	63	M20*2.0P	2-26mm
BT40-ER40-200L	265.4	200	173	27	63	40	63	M20*2.0P	2-26mm
BT40-ER40-250L	315.4	250	223	27	63	40	63	M20*2.0P	2-26mm
BT40-ER40-300L	365.4	300	273	27	63	40	63	M20*2.0P	2-26mm
BT40-ER50-100L	165.4	100	43	27	78	50	78	M24*2.0P	6-34mm

Company profile:

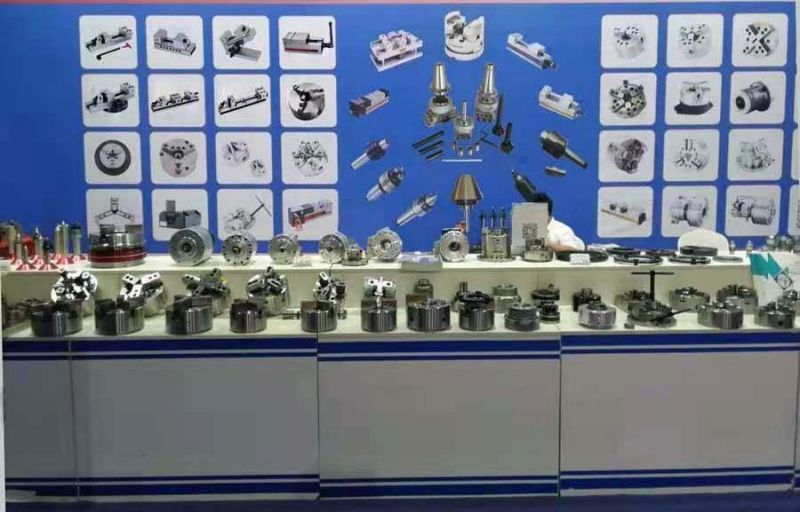

Yantai Formore Machinery Co., Ltd. Located in a beautiful coastal city of Yantai, Shandong, China. We specializes in supplying Machine Accessories for more than ten years .We supply machine tools, such as NC turret, steady rest,dividing head, rotary table, machine vises, lathe chucks, magnetic chucks, live center,tools post ,drill chucks and so on .If you need our products please feel free to contact me. I will provide our the best service.


RFQ:
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the   price, please tell us in your email so that we will regard you inquiry priority.

Q: What is your term of delivery?
A: We accept EXW, FOB ,CFR Qingdao or other Port in China as per Need . You can choose the one which is the most convenient or cost effective for you.

Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.

Q: Are you trading company or manufacturer ?
A: We are factory and trade company.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
