• Model NO.：SED-EM-TS
• Diameter：11-60mm
• Package：PVC Box or as Per Request
• Min Qty：10
• Surface Treatment：Original
• Transport Package：PVC Box
• Specification：angle
• Trademark：EASYDRILL
• Origin：China
• HS Code：8207709000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. SED-EM-TS Diameter 11-60mm Package PVC Box or as Per Request Min Qty 10 Surface Treatment Original Transport Package PVC Box Specification angle Trademark EASYDRILL Origin China HS Code 8207709000 Production Capacity 10000PCS/Month

Product Description

HSS T-slot mills with straight shank

14*(2-6)*8*60 means: 14 is the blade diameter, 2-6 is the thickness of the blade, 8 is the shank diameter, and 60 is the total length
2-6 The thickness of the blade is 2 3 4 5 6 mm, please note the required thickness!
Uses: Mainly used for T-slots of fixed size, and also for milling general grooves, stepped surfaces, and side surfaces.
Features and precision: This tool is a high-efficiency, long-life, high-quality special tool for processing T-slots. After straight grooves are milled, T-slots with the required accuracy can be milled at one time. The end edge of the milling cutter is suitable. Cutting angle, smooth cutting and small cutting force

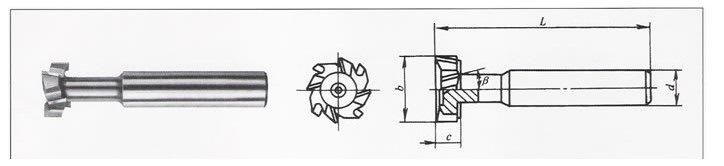

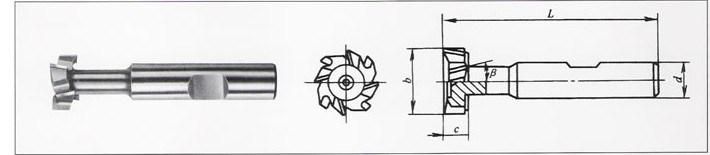

b	c	L	D	Z
11	3.5	53.5	10	4
12.5	6	57	10	4
16	8	62	10	4
18	8	70	12	6
21	9	74	12	6
25	11	82	16	6
29	12.5	85	16	6
32	14	90	16	6
36	15.5	101	25	8
40	18	108	25	8
45	20	112	25	8
50	22	124	32	10
57	24	131	32	10
60	28	139	32	1
