HSS Pm Rh6 Taps M7*1
Zhenjiang Scharp Machinery Tools Co., Ltd.- Application：Drilling Machine
- Standard：Standard
- Coating：Coating
- Material：High Speed Steel
- Type：Cutter
- Work Type：Thread Machining
Base Info
- Model NO.：metric
- Transport Package：Plastic Box
- Specification：M 0.7 to M12
- Trademark：stc
- Origin：Zhenjiang
- HS Code：82074000
- Production Capacity：10000 PCS Per Mont
Description
Basic Info.
Model NO. metric Transport Package Plastic Box Specification M 0.7 to M12 Trademark stc Origin Zhenjiang HS Code 82074000 Production Capacity 10000 PCS Per MontProduct Description
Our taps are made from import powder-metallary high speed steel.It works super for stainless steel.
Tialn coating and Tin coating available.
Spiral flute, Spiral point and forming available.

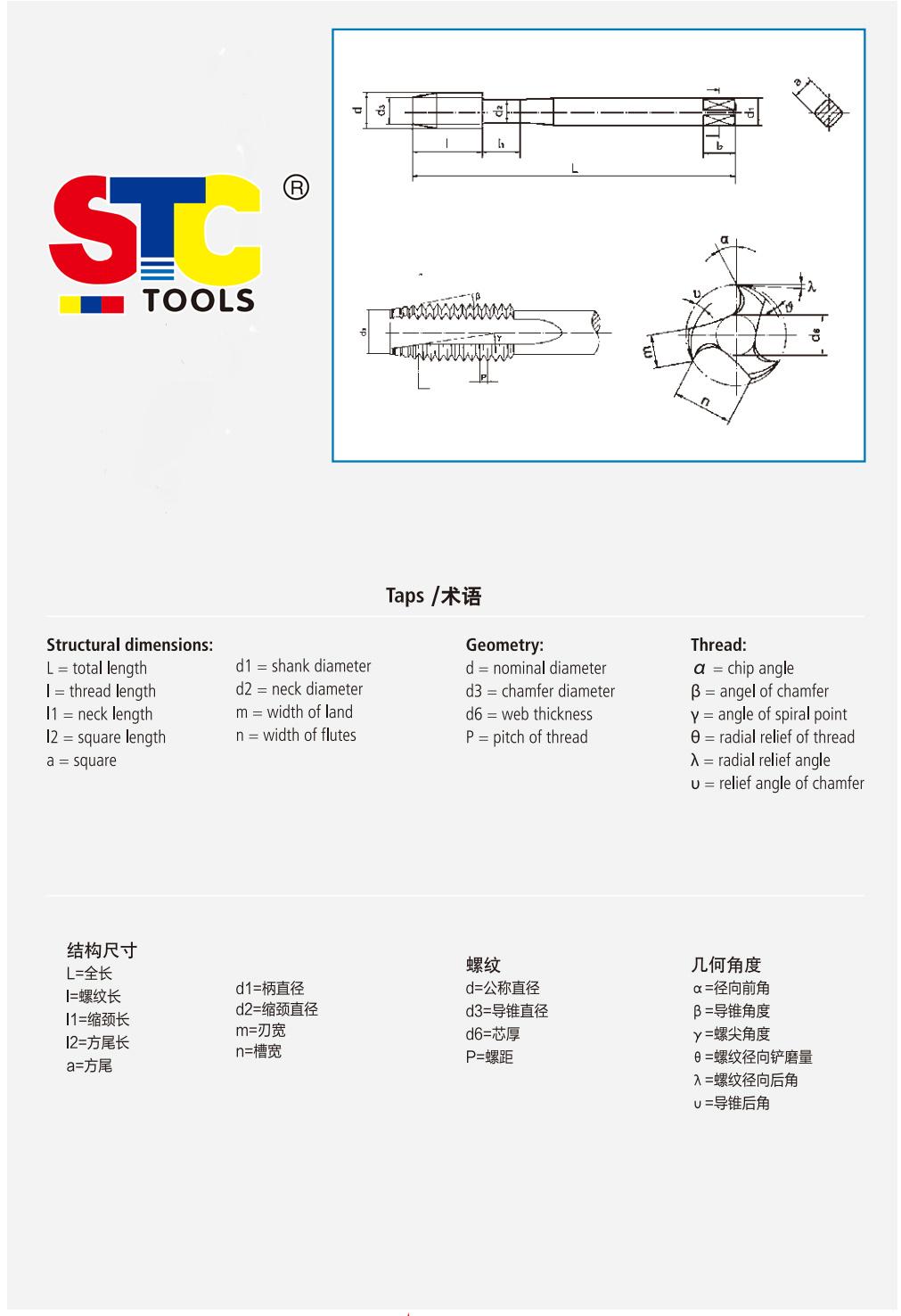

| thread size | total length | shank |
| S0.7x0.175 | 25 | 1.5 |
| S0.8x0.2 | 25 | 1.5 |
| S0.9x0.225 | 25 | 1.5 |
| M1x0.25 | 30 | 3 |
| M1.2x0.25 | 32 | 3 |
| M1.4x0.3 | 34 | 3 |
| M1.6x0.35 | 36 | 3 |
| M1.7x0.35 | 36 | 3 |
| M2x0.4 | 40 | 3 |
| M2.5x0.45 | 44 | 3 |
| M3x0.5 | 46 | 4 |
| M4x0.7 | 52 | 5 |
| 0#-80UNF | 36 | 3 |
| 1#-72UNF | 36 | 3 |
| 1#-64UNC | 40 | 3 |
| 2#-64UNF | 40 | 3 |
| 2#-56UNC | 44 | 3 |
| 3#-56UNF | 44 | 3 |
| 3#-48UNC | 44 | 3 |
| 4#-48UNF | 44 | 3 |
| 4#-40UNC | 46 | 3 |
| 5#-44UNF | 46 | 4 |
| 5#-40UNC | 52 | 4 |
| 6#-40UNF | 52 | 4 |
| 6#-32UNC | 52 | 4 |
| 8#-36UNF | 52 | 5 |
| 8#-32UNC | 52 | 5 |
| 10#-32UNF | 52 | 5 |
| 10#-24UNC | 52 | 5 |
