Cutter & Tongs

Precision Inclineable Rotary Tables

Qingdao Preco Imp. & Exp. Co., Ltd.
  • Certification:ISO 9001:2000
  • Material:Iron
  • Type:Rotary Table
  • Delivery:20 Days
  • Logo Printing:Without Logo Printing
  • Size:Middle

Base Info

  • Model NO.:10′′, 12′′
  • Customized:Non-Customized
  • Transport Package:Wooden Cases
  • Specification:ISO
  • Trademark:neutral or OEM
  • Origin:China
  • HS Code:84669300
  • Production Capacity:10000PCS,Month

Description

Basic Info.

Model NO. 10′′, 12′′ Customized Non-Customized Transport Package Wooden Cases Specification ISO Trademark neutral or OEM Origin China HS Code 84669300 Production Capacity 10000PCS/Month

Product Description

Supply High Precision Inclineable Rotary Tables (Machine Accessories):

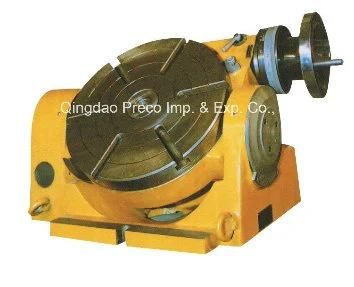

Precision Inclineable Rotary Tables

The Rotary Table is one of the main accessories of the milling, boring and drilling machinery. It is forced by power or operated and can be make circular cutting, circule curved surface processing, straight line processing of the plane and some line segments. They also can be used for machining, the oblique hole or surface and hole of compound angle at one set-up.

Precision Inclineable Rotary Tables
Precision Inclineable Rotary Tables
Precision Inclineable Rotary Tables
Besides this, it is so designed as to be used in a vertical position to carry out center work with a tailstock. A flange for connecting scroll chuck is special supplied, and be packed independent.

For special order, the dividing plates accessory allows the operator to accurately divide the 360` rotation of the clamping surface into divisions of 2 through 66, and all divisible of 2, 3 and 5 from 67-132.
