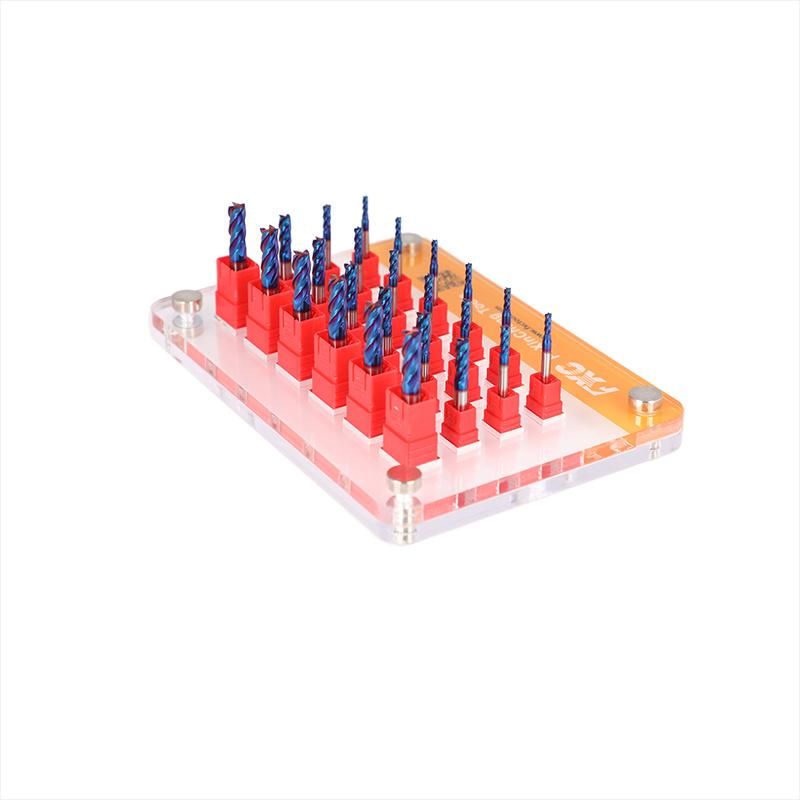

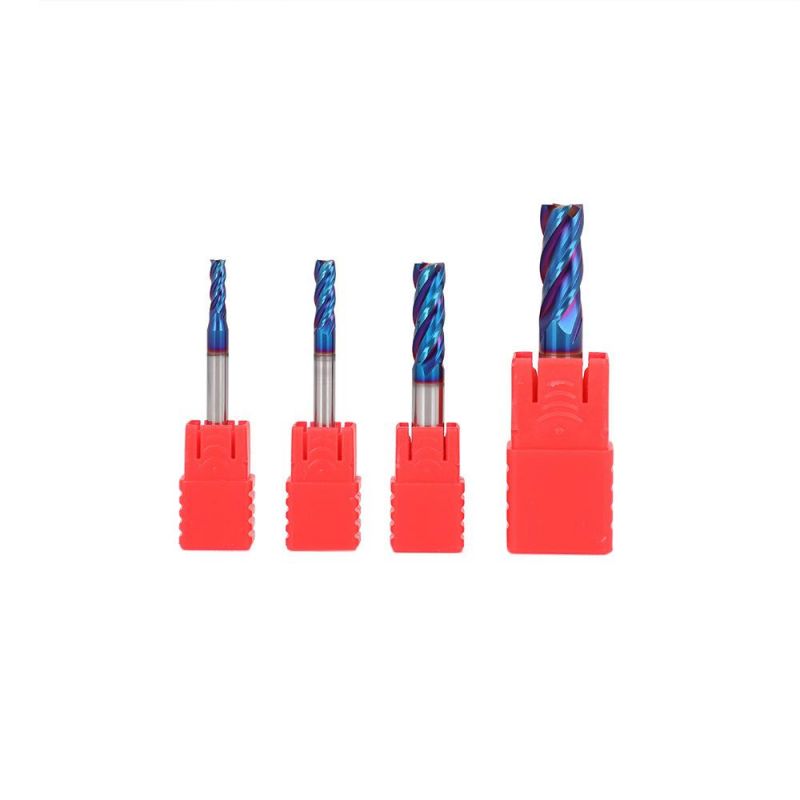

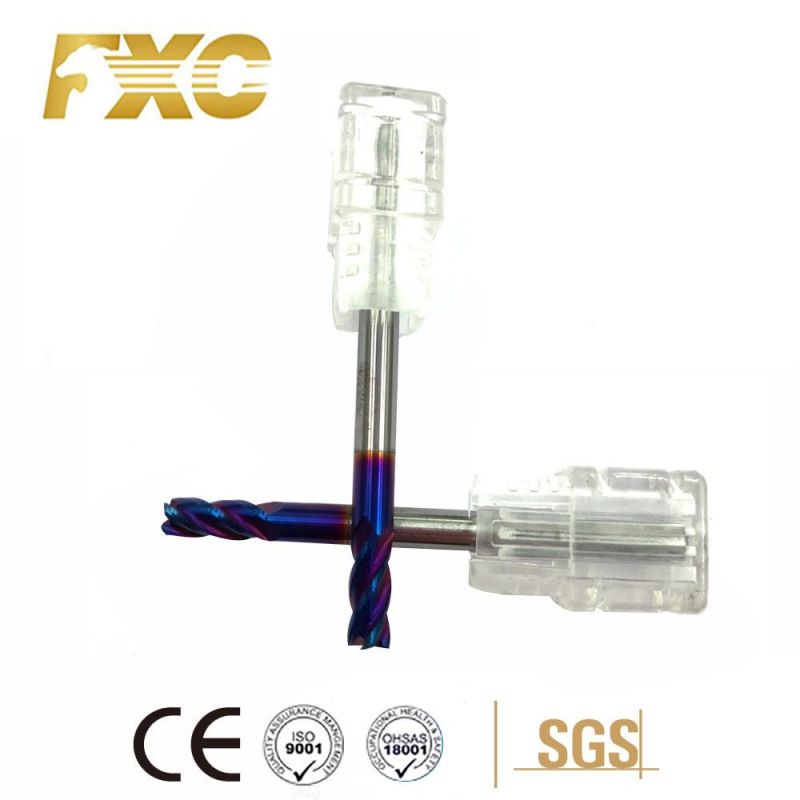

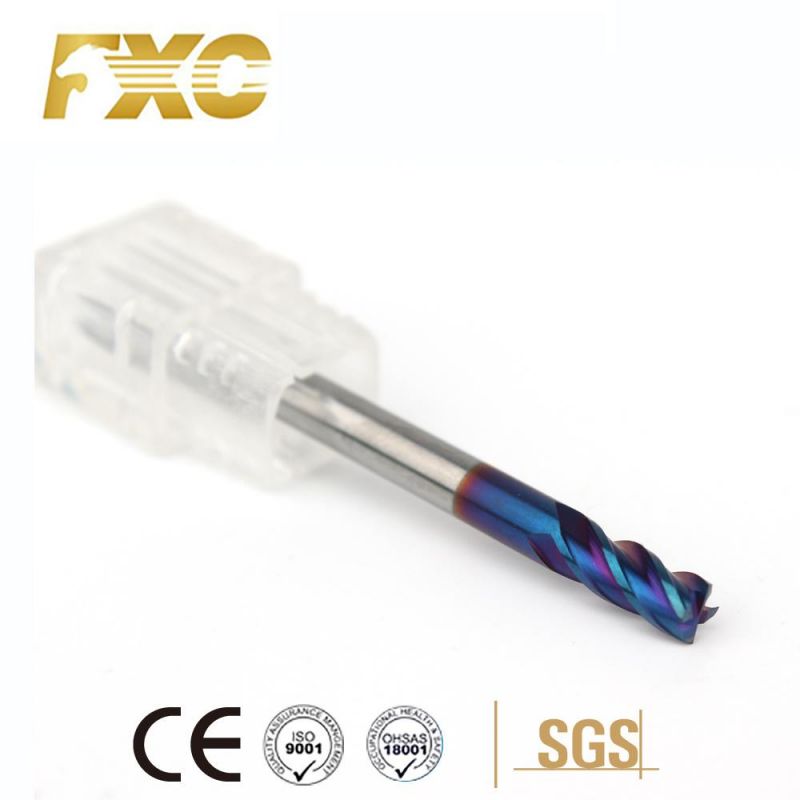

4 Flutes HRC60 Tungsten Carbide Square End Mill
FUXINCHENG TOOLS CO., LTD.- Coating：Coating
- Tooth Form：Spiral Tooth
- Tooth Space：Dense Tooth
- Structure：Integral
- Material：Tungsten Carbide
- Type：Vertical Milling Cutter
Base Info
- Model NO.：fxc-004
- Item：End Mill
- Work Piece：HRC 45, 55, 60, 65
- End Mill Flute Diameter：D0.5-D30mm
- Flutes Number：2 3 4
- Overall Length：50-150mm
- Surface：Ticn,Tin,Tialn,Uncoated
- Delivery Time：7-15 Working Days
- Trial Order：Accepted
- CNC Machine：Anca
- Packing：Carton
- Transport Package：1 PC in a Plastic Tube, 10 PCS Per Group
- Trademark：FXC
- Origin：Jiangsuchangzhou
- HS Code：8205590000
- Production Capacity：1000000
Description
Specifications of Flat End Mill (mm)Cutting Flute Shank A.O.L Flute d l D L F 1.0×2.5×4D×50L×4F 1 2.5 4 50 4F 1.5×3.75×4D×50L×4F 1.5 3.75 4 50 4F 2.0×5.0×4D×50L×4F 2 5 4 50 4F 2.5×6.25×4D×50L×4F 2.5 6.25 4 50 4F 3.0×7.5×4D×50L×4F 3 7.5 4 50 4F 3.5×8.75×4D×50L×4F 3.5 8.75 4 50 4F 4.0×10×4D×50L×4F 4 10 4 50 4F 5.0×12.5×5D×50L×4F 5 12.5 5 50 4F 5.0×12.5×6D×50L×4F 5 12.5 6 50 4F 6.0×15×6D×50L×4F 6 15 6 50 4F 8.0×20×8D×60L×4F 8 20 8 60 4F 9.0*20*10D*75L*4F 9 20 10 75 4F 10.0×25×10D×75L×4F 10 25 10 75 4F 12.0×30×12D×75L×4F 12 30 12 75 4F 14.0×35×14D×100L×4F 14 35 14 100 4F 16.0×40×16D×100L×4F 16 40 16 100 4F 18.0×45×18D×100L×4F 18 45 18 100 4F 20.0×50×20D×100L×4 20 50 20 100 4F
1.Are you manufacturer? Do you have factory?
We are Professional manufacturer ,we have more than 5 years experience in this field.
2.Does free shipping is possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
3.Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.
4.Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
5.How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 5~10 days. We can tell you exact inventory state if you need.
6.Can you produce carbide Special Tool ?
Yes We can. From 2013 year. Our factory main market is from standard end mills to special tools. Special tool according your drawing and sample.
Thank you for taking your time to go through our company profile.
