F12 Series Semi-Universal Dividing Head (F12100 F12125 F12160 F12200)
Tengzhou Hoton Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Function：Semi-Universal
- Material：Cast Iron
- Type：Dividing Head
- Logo Printing：Without Logo Printing
- Size：Middle
Base Info
- Model NO.：F12100 F12125 F12160 F12200
- Customized：Customized
- Transport Package：Plywood Case
- Specification：CE SGS ISO9001
- Trademark：HOTON
- Origin：Shandong China
- HS Code：84662000
- Production Capacity：50 PCS,Month
Description

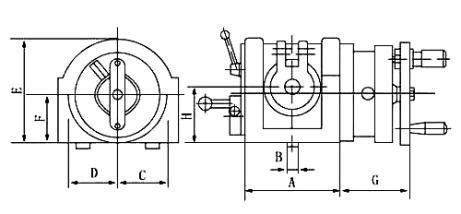

Case Dimensions mm610×459×255 536×460×310 710×505×342 710×535×342 DIMENSIONAL SKETCH
INSTALLATION SKETCH AND DIMENSIONS:
ACCESSORIES:
1.Tailstock 2.Dividing plate 3.Flange 4.3-jaw chuck 5.Round Table(optional)
INSTALLATION SKETCH AND DIMENSIONS:
| Model | A | B | C | D | E | F | G | H | L | M | N | O | P |
| F12100 | 162 | 14 | 102 | 87 | 186 | 95 | 116 | 100 | 93 | 54.7 | 30 | 100 | 100 |
| F12125 | 209 | 18 | 116 | 98 | 224 | 117 | 120 | 125 | 103 | 68.5 | 34.5 | 100 | 125 |
| F12160 | 209 | 18 | 116 | 98 | 259 | 152 | 120 | 160 | 103 | 68.5 | 34.5 | 100 | 160 |
| F12200 | 209 | 18 | 116 | 98 | 299 | 192 | 120 | 200 | 103 | 68.5 | 34.5 | 100 | 200 |
1.Tailstock 2.Dividing plate 3.Flange 4.3-jaw chuck 5.Round Table(optional)
