Solid Carbide Corner End Mills
Zhenjiang Scharp Machinery Tools Co., Ltd.- Coating：Coating
- Tooth Form：Spiral Tooth
- Tooth Space：Sparse Tooth
- Structure：Integral
- Material：Cemented Carbide
- Type：Vertical Milling Cutter
Base Info
- Model NO.：standard
- Size：2mm to 12mm
- Standards：K
- Style：Universal Tool
- Cutting Process：Milling Cutter
- Work Type：Cut off
- Transport Package：plastic box
- Specification：2mm to 12mm
- Trademark：stc
- Origin：Zhenjiang
- HS Code：82077000
- Production Capacity：5000pcs,month
Description
Basic Info.
Model NO. standard Size 2mm to 12mm Standards K Style Universal Tool Cutting Process Milling Cutter Work Type Cut off Transport Package plastic box Specification 2mm to 12mm Trademark stc Origin Zhenjiang HS Code 82077000 Production Capacity 5000pcs/monthProduct Description
Solid carbide corner radius end mills.

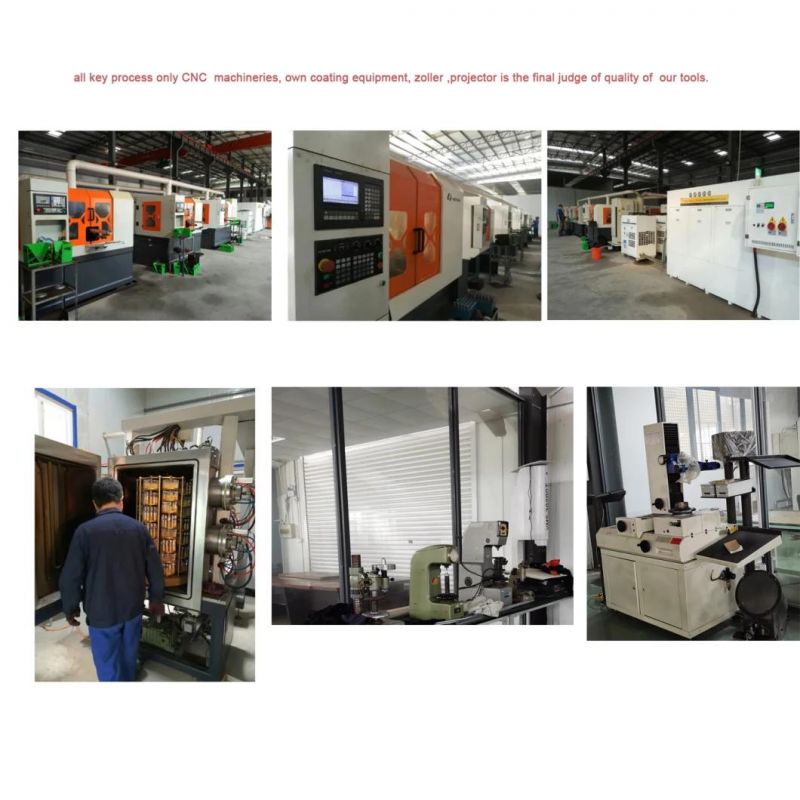

We use CNC fully ground to make this kind of carbide corner radius end mills.
Tin Tialn Coating available on request.
Special size radius end mills available.
2 flute and 4 flutes both available.
Regular length and long length available.
| D(mm) | shank(mm) | R | L1 (mm) | L(mm) |
| 4 | 4 | 0.2 | 8 | 50 |
| 4 | 4 | 0.5 | 8 | 50 |
| 4 | 4 | 1 | 8 | 50 |
| 6 | 6 | 0.2 | 12 | 50 |
| 6 | 6 | 0.5 | 12 | 50 |
| 6 | 6 | 1 | 12 | 50 |
| 8 | 8 | 0.5 | 16 | 60 |
| 8 | 8 | 1 | 16 | 60 |
| 8 | 8 | 1.5 | 16 | 60 |
| 10 | 10 | 0.5 | 20 | 75 |
| 10 | 10 | 1 | 20 | 75 |
| 10 | 10 | 1.5 | 20 | 75 |
| 10 | 10 | 2 | 20 | 75 |
| 10 | 10 | 2.5 | 20 | 75 |
| 10 | 10 | 3 | 20 | 75 |
| 12 | 12 | 0.5 | 24 | 75 |
| 12 | 12 | 1 | 24 | 75 |
| 12 | 12 | 1.5 | 24 | 75 |
| 12 | 12 | 2 | 24 | 75 |
| 12 | 12 | 2.5 | 24 | 75 |
| 12 | 12 | 3 | 24 | 75 |
