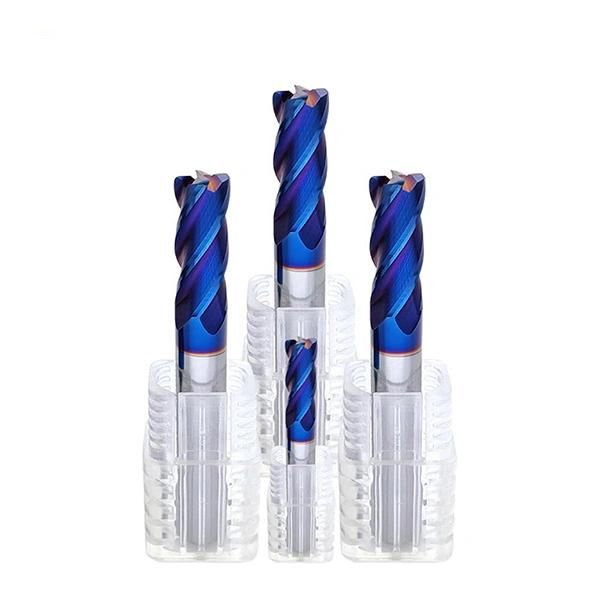

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50

Dongguan Yize Precision Cutting Tool Co., Ltd.
  • Coating:Coating
  • Tooth Form:Spiral Tooth
  • Tooth Space:Sparse Tooth
  • Structure:Indexable Type
  • Material:Tungsten Steel
  • Type:T Milling Cutter

Base Info

  • Model NO.:D4*R0.5*10*D4*50
  • Transport Package:Carton Box , Plastic Box
  • Specification:0.3-40mm
  • Trademark:YIZE
  • Origin:China
  • HS Code:82077090
  • Production Capacity:50, 000PCS,Month

Description

Material

Tungsten Cobalt Alloy, Tungsten Carbide

Machine Type

Milling Machine

Controlling Mode

CNC Tooling System

Precision

0.005-0.01mm

Shank Diameter

4-40mm

Coating

Blue Nano

Flute Diameter

0.3-40mm

HRC

HRC65

Overall Length

38-330mm

Suitable For

hardened steel, carbon steel, mould steel, stainless steel, titanium alloy, tool steel, and heat-treated steel



Clients Good Feedback

"We would like to compare yours against others. They work much better than previous tools we have ever used. The 12mm 3 flute end mill were used for processing aluminum for 600 meters. The lifetime is so long. We will order more."

- Adam Gillard, United Kingdom

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50

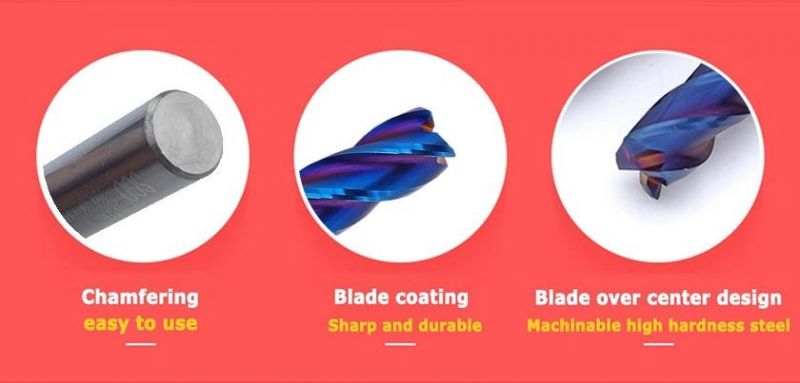

Products Features

1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer

2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily

3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing

4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized

5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten

6. Polished Surface Treatment: With high polished surface treatment, the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50

Specitications


Standard type



Model No.

Flute Diameter (mm)

Radius (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D2*R0.5*6*D4*50

2.0

0.5

6

4

50

D3*R0.2*8*D4*50

3.0

0.2

8

4

50

D3*R0.5*8*D4*50

3.0

0.5

8

4

50

D4*R0.5*10*D4*50

4.0

R0.5

10

4

50

D4*R1*10*D4*50

4.0

R1

10

4

50

D6*R0.5*15*D6*50

6.0

R0.5

15

6

50

D6*R1*15*D6*50

6.0

R1

15

6

50

D8*R0.5*20*D8*60

8.0

R0.5

20

8

60

D8*R1*20*D8*60

8.0

R1

20

8

60

D8*R1.5*20*D8*60

8.0

R1.5

20

8

60

D10*R0.5*25*D10*75

10.0

R0.5

25

10

75

D10*R1*25*D10*75

10.0

R1

25

10

75

D10*R1.5*25*D10*75

10.0

R1.5

25

10

75

D12*R0.5*30*D12*75

12.0

R0.5

30

12

75

D12*R1*30*D12*75

12.0

R1

30

12

75

D12*R1.5*30*D12*75

12.0

R1.5

30

12

75

D12*R2*30*D12*75

12.0

R2

30

12

75


Extra Length Type



Model No.

Flute Diameter (mm)

Radius (mm)

Flute length (mm)

Shank Diameter (mm)

Overall length (mm)

D2*R0.5*6*D4*75

2.0

R0.5

6

4

75

D3*R0.5*8*D4*75

3.0

R0.5

8

4

75

D4*R0.5*11*D4*75

4.0

R0.5

11

4

75

D4*R1*11*D4*75

4.0

R1

11

4

75

D4*R0.5*11*D4*100

4.0

R0.5

11

4

100

D4*R1*11*D4*100

4.0

R1

11

4

100

D6*R0.5*15*D6*75

6.0

R0.5

15

6

75

D6*R1*15*D6*75

6.0

R1

15

6

75

D6*R0.5*15*D6*100

6.0

R0.5

15

6

100

D6*R1*15*D6*100

6.0

R1

15

6

100

D8*R0.5*20*D8*75

8.0

R0.5

20

8

75

D8*R1*20*D8*75

8.0

R1

20

8

75

D8*R1.5*20*D8*75

8.0

R1.5

20

8

75

D10*R0.5*25*D10*100

10.0

R0.5

25

10

100

D10*R1*25*D10*100

10.0

R1

25

10

100

D10*R1.5*25*D10*100

10.0

R1.5

25

10

100

D12*R0.5*30*D12*100

12.0

R0.5

30

12

100

D12*R1*30*D12*100

12.0

R1

30

12

100

D12*R1.5*30*D12*100

12.0

R1.5

30

12

100

D12*R2*30*D12*100

12.0

R2

30

12

100



Show Details

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50

Promotion Policy:

1. Free sample:Free sample can be provided, if clients agree to pay for shipping cost.

2. First order coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.

3. Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50



Clients Benefits:

1. More revenue: due to our big stocks, tools cost can be controlled. With our competitive price, we can help you to make even more revenue but with lower cost.

2. No quality complain: By control quality from raw material to production process and 100% examed before shipment, so we can help you to keep away from any clients complain for quality issue.

3. One stop shop service: we have variety of cnc milling tools, cnc router bits and cnc drilling tools. You do not need to buy everywhere and pay shipping cost everywhere.

4. Increase clients conversion rate: with our technical and market experience, we can help you to generate more customer with even higher conversion rate.

5. Fast feedback: we offer 24 hours online service, any questions from you or your clients will be replied immediately, your clients will be happy, then you will be happy.

6. Cutomized tools: Customized tools can be provided acccording to your drawing and your work piece.

Solid Carbide End Mill 4 Flutes with Corner Radius D4*R0.5*10*D4*50

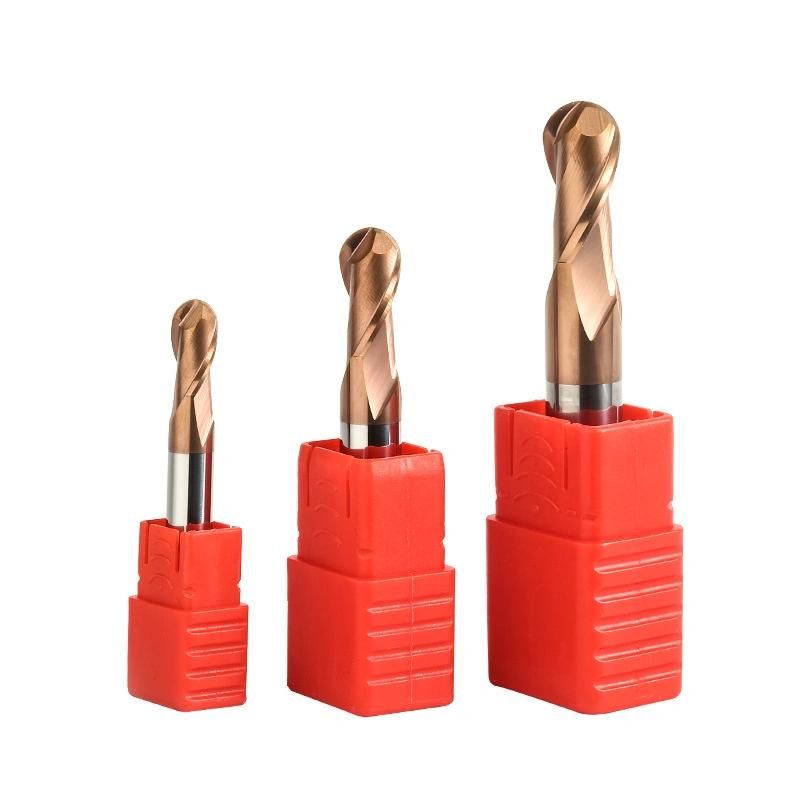

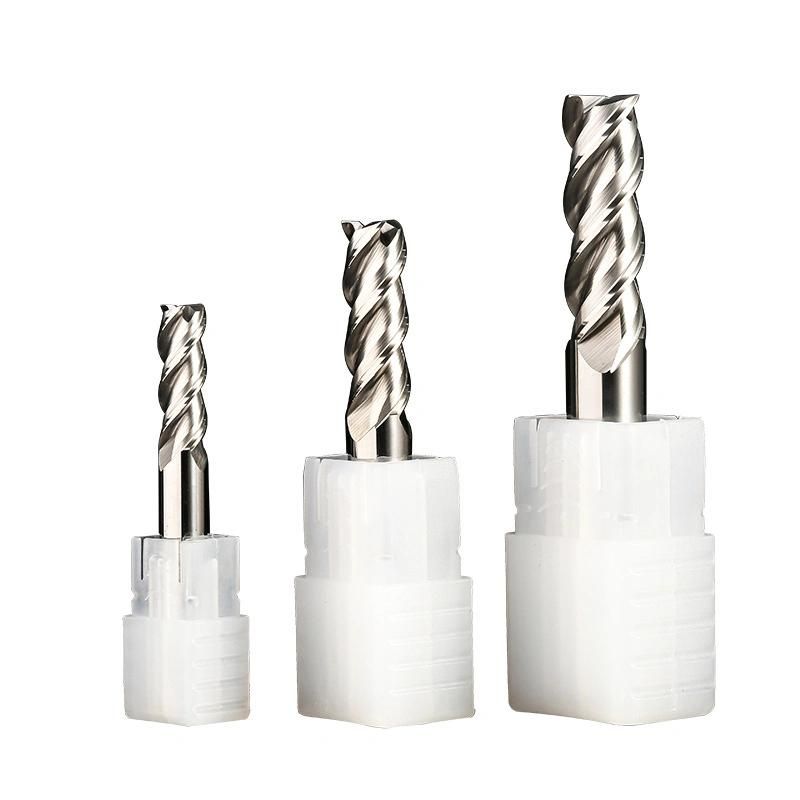

Related Products
