Milling Machine Internal Thread Shockproof Tungsten Carbide Steel Locking Type Milling Cutter Head
Xibite (Shandong) Precise Machinery Company Limited- Coating：Uncoated
- Tooth Form：Straight Tooth
- Structure：Insert Type
- Material：High Speed Steel
- Type：Vertical Milling Cutter
- Name：Milling Cutter Head
Base Info
- Transport Package：Color Box
- Trademark：XBT-TOOLS
- Origin：Dezhou China
Description
Basic Info.
Transport Package Color Box Trademark XBT-TOOLS Origin Dezhou ChinaProduct Description

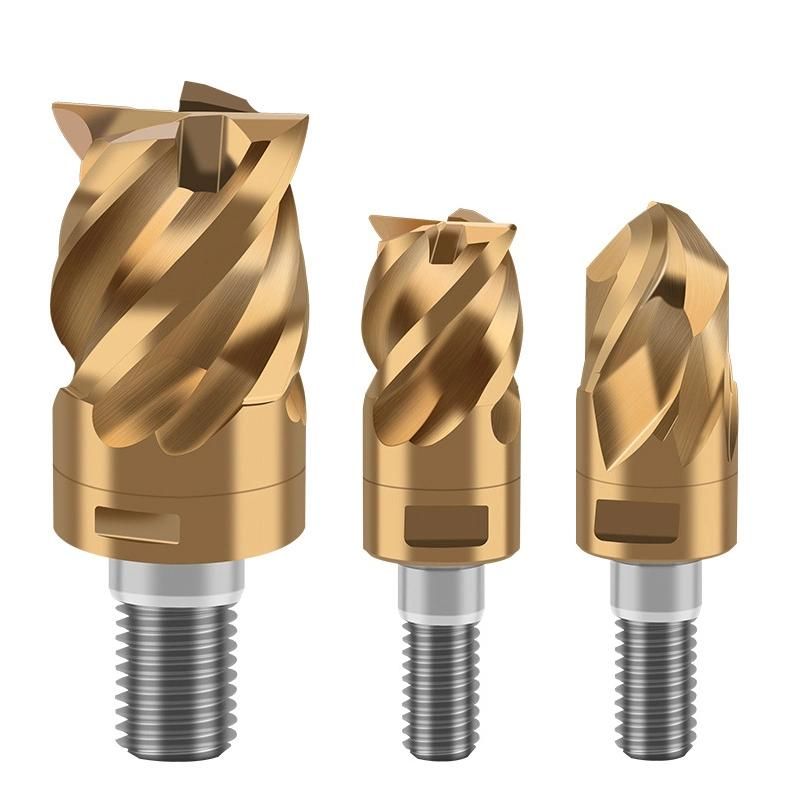

Milling machine Internal thread shockproof Tungsten carbide steel Locking type milling cutter head
Parameters of tungsten steel locking flat head cutter
This product is made of integral cemented tungsten steel, with good seismic performance, deep processing depth, replaceable cutter head and cost saving. It is a sharp tool for deep milling.
| Product specification | diameter | Blade length | Head diameter | overall length | Connecting thread | Locking wrench |
| X-UET0804 | 8 | 8 | 7.8 | 12.1 | M4 | K08 |
| X-UET1004 | 10 | 10 | 9.8 | 16.1 | M5 | K10 |
| X-UET1204 | 12 | 12 | 11.7 | 20.3 | M6 | K12 |
| X-UET1604 | 16 | 16 | 15.6 | 25.7 | M8 | K16 |
| X-UET2004 | 20 | 20 | 19.5 | 31.1 | M10 | K20 |
| X-UET2504 | 25 | 25 | 24.4 | 39.3 | M12 | K25 |
| X-UET3204 | 32 | 32 | 31.2 | 48 | M16 | K32 |
Locking parameters of round nose knife
This product is made of integral cemented tungsten steel, with good seismic performance, deep processing depth, replaceable cutter head and cost saving. It is a sharp tool for deep milling.
| Product specification | diameter | Blade length | Head diameter | overall length | Connecting thread | Locking wrench |
| X-UXR0805 | 8 | 8 | 0.5 | 7.8 | M4 | K08 |
| X-UXR0810 | 8 | 8 | 1 | 7.8 | M4 | K08 |
| X-UXR1005 | 10 | 10 | 0.5 | 9.8 | M5 | K10 |
| X-UXR1010 | 10 | 10 | 1 | 9.8 | M5 | K10 |
| X-UXR1205 | 12 | 12 | 0.5 | 11.7 | M6 | K12 |
| X-UXR1210 | 12 | 12 | 1 | 11.7 | M6 | K12 |
| X-UXR1605 | 16 | 16 | 0.5 | 15.6 | M8 | K16 |
| X-UXR1610 | 16 | 16 | 1 | 15.6 | M8 | K16 |
| X-UXR2010 | 20 | 20 | 1 | 19.5 | M10 | K20 |
Ball lock parameters
| Product specification | diameter | Blade length | Head diameter | overall length | Connecting thread | Locking wrench |
| X-UBT0802 | R4 | 8 | 7.8 | 12.1 | M4 | K08 |
| X-UBT1002 | R5 | 10 | 9.8 | 16.1 | M5 | K10 |
| X-UBT1202 | R6 | 12 | 11.7 | 20.3 | M6 | K12 |
| X-UBT1602 | R8 | 16 | 15.6 | 25.7 | M8 | K16 |
| X-UBT2002 | R10 | 20 | 19.5 | 31.3 | M10 | K20 |
| X-UBT2502 | R12.5 | 25 | 24.4 | 39.3 | M12 | K25 |
| X-UBT3202 | R16 | 32 | 31.2 | 48 | M16 | K32 |

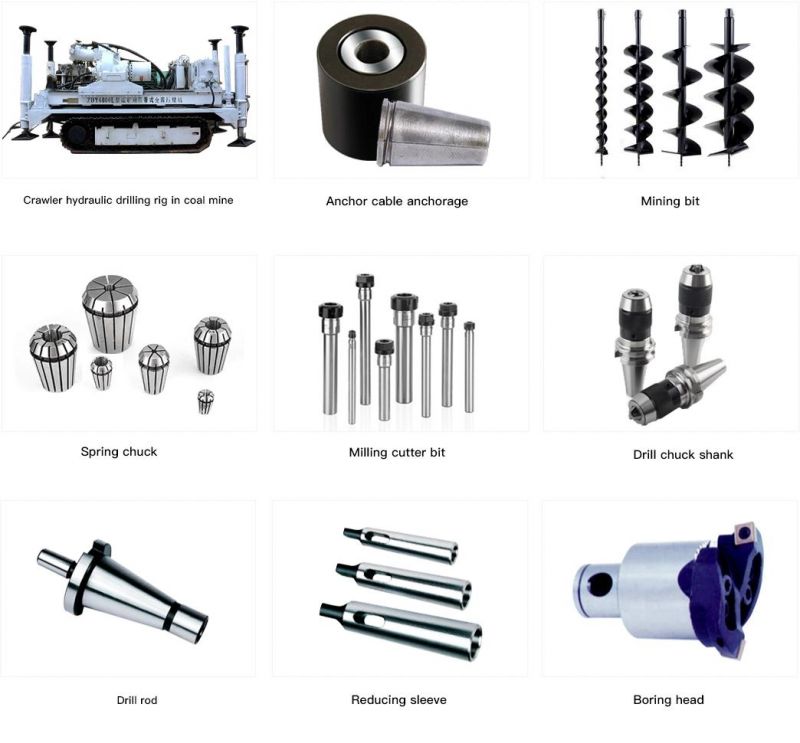

Machine parts, coal mine supplies, please check below to understand our main project. Mining crawler hydraulic drilling rig, mining anchor cable anchorage, machine tool toolholder accessories: BT toolholder, din69871 SK toolholder, NT toolholder, cat30 cat40 cat50 toolholder, HSK toolholder, din69880 VDI toolholder, Morse taper, straight shank toolholder, etc.
Product details

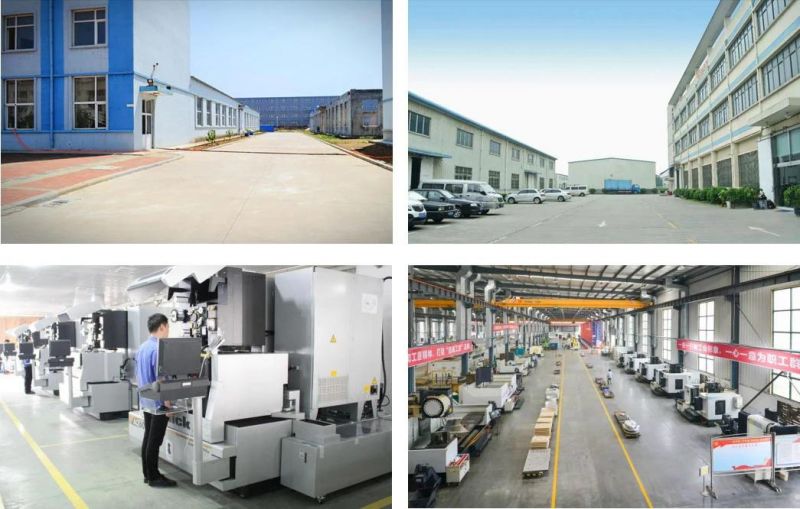

Our workshop
