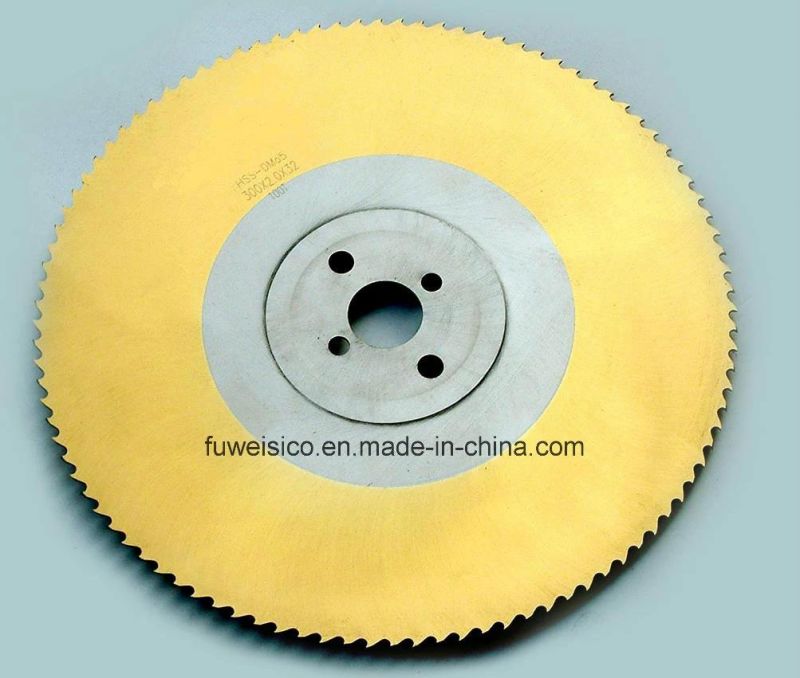

Cutter & Tongs

High Quality Metal cutting blade

HANGZHOU FUWEISI SAW INDUSTRY CO., LTD.
  • Certification:ISO9001:2008, ISO9001:2000, RoHS, CE
  • Tooth Form:Hz
  • Diameter:300mm
  • Function:Cutting
  • Shape:Circular Blade
  • Coating:PVD

Base Info

  • Model NO.:300 x 2.0x32mm Z=200
  • Type:Cutter
  • Hardness:HRC62-65
  • Tooth Grinding:CNC Tooth Grinding Machine
  • Heatment Treatment:Salt Bath
  • Tooth Number:Z=200
  • Material:HSS 1.3343
  • Application:Metal Tube & Profile Cutting

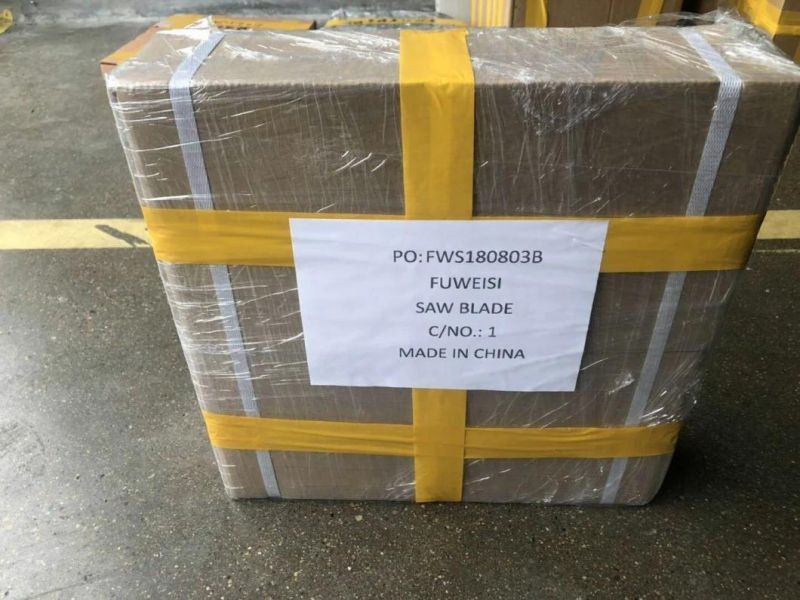

  • Transport Package:20PCS Per Carton
  • Specification:300 x 2.0 x 32mm Z=200
  • Trademark:FUWEISI, BOSS CUT
  • Origin:China, Germany, Japan, USA Material
  • HS Code:8202399000
  • Production Capacity:60000PCS,Month

Description

Ready stock.275x2.5x32mmZ=180/200/220/240/260300x2.5x32mmZ=180/200/220/240/260315x2.5x32mmZ=180/200/220/240/260350x2.5x32mmZ=180/200/220/240/260370x2.5x32mmZ=180/200/220400x3.0x32mmZ=160/200/220425x3.0x32mmZ=160/180/200450x3.0x32mmZ=120/160/180/200500x4.0x32mmZ=80/100/120/160
Technical data ot TiN coating:
Colour: Gold
Process: PVD
Hardness: 2500HV
Friction: 0.4
Thickness: 1-4mm.
Max cutting temperature: 600 degree.
Operation:
Structural steel
Alloyed steels
Steel pipes and profiles
Pipes and profiles out non ferrous metals
Technical recommendation:
Raising of the coating hardness by reducing the friction
Universal coating for better sawblade life
50-100%higher speed and feed rates
Prevention of side pick-UPS

Production is based on DIN standards 1836, 1837, 1838 and 1840, extended by the refined "FUWEISI" manufacturing standards. The delivery program consists of a range of standard sawblades which can be delivered from stock and a range of special sawblades to be produced to customer specifications.

The HSS TIN sawblades are supplied as standard in high speed steel grade M2 = DIN 1.3343. It suits for the cutting of the materilas like stainless steel, iron pipe, steel pipe, etc.

All the products haven been enjoying an excellent reputation in the world market for it's competitive price and excellent quality.
