• HS Code：82090030

Basic Info.

HS Code 82090030

Product Description

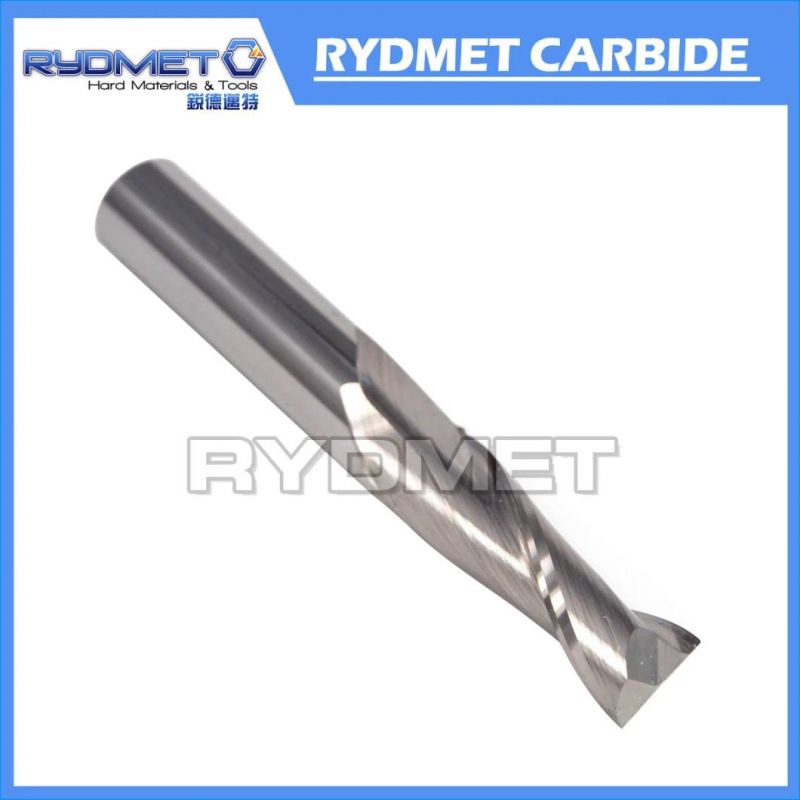

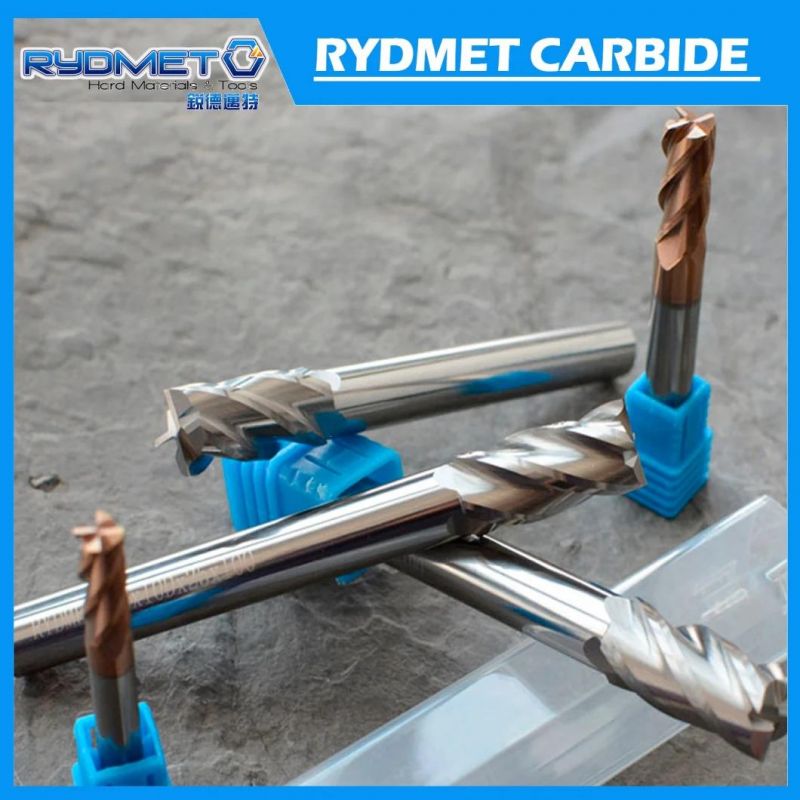

Rydmet produces a complete line, standard and Custom deisgned solid carbide end mills, which manufactured from micron grain or ultra fine grain carbide blanks that with both maiximum Hardness and Thoughenss,which can gurantee the excellent tool perfornance and long tool life.


Our Carbide Endmills are ground by imported high precision CNC Tool ginder that make our endmills pefect in tolernace, precision, gometry and concentricity,which helps the tool peformance and production efficiency.

Longer Tool life, Lower cost, Higher Efficiency are our permanent Aim toward the Endmills and other Carbide or Tools.


RD-50 Sereis Carbide Endmills are Made by famous Imported  CNC tools Grinders, which can make sure that the tool dimensions in high precision and consistence.

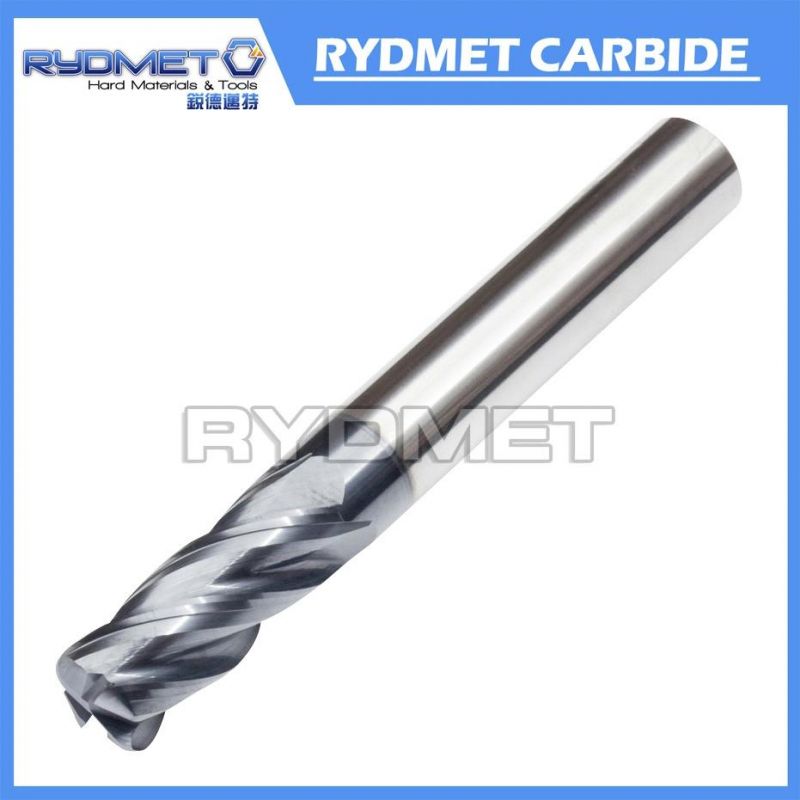

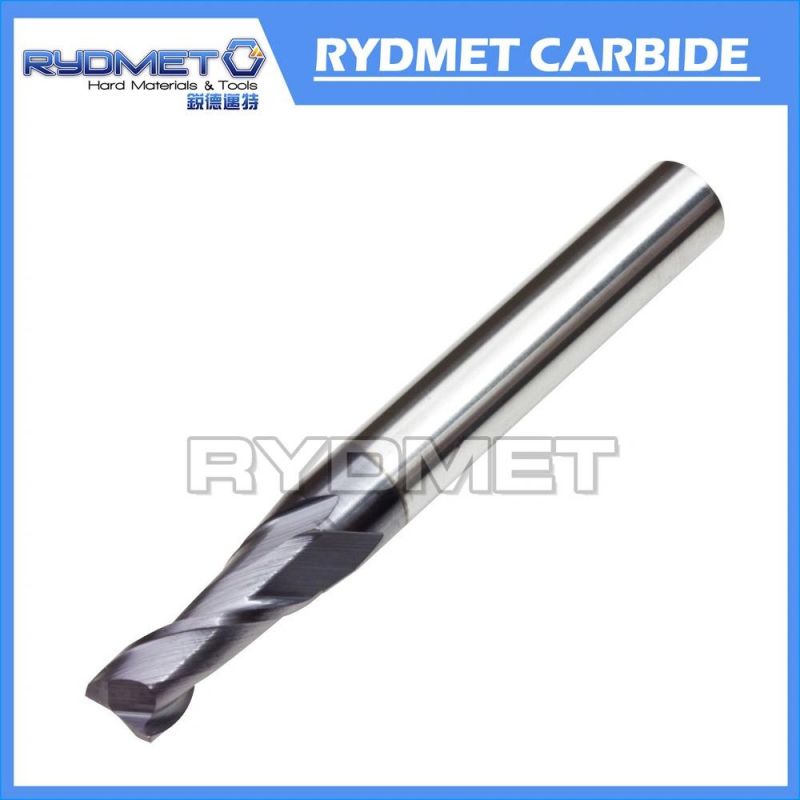

The RD-50 Sereis Tungsten Carbide Endmills are from the Submicron Grain Carbide Blanks, TIALN coated, with very good surface finish and Red hardness, which can be used to cut the materials with hardness up to 50 HRC, like Stainless Steel, HeatResistance Steel and other nonferrous metals.

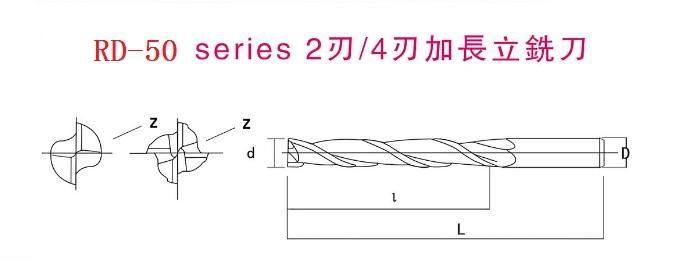

Dc(d)	Lc	OAL (L)	Shank D	Flutes
3	4	12	75	2/4
4	4	15	75	2/4
5	6	18	75	2/4
6	6	24	75	2/4
3	4	12	100	2/4
4	4	16	100	2/4
5	6	20	100	2/4
6	6	24	100	2/4
8	8	32	100	2/4
10	10	40	100	2/4
12	12	45	100	2/4
6	6	45	150	2/4
8	8	50	150	2/4
10	10	55	150	2/4
12	12	60	150	2/4
16	16	65	150	2/4
20	20	75	150	2/4
25	25	75	150	2/4

• * Coating materials can also be changed as per the specific application.
  **  Custom-size are also available as per the requirement.


•
